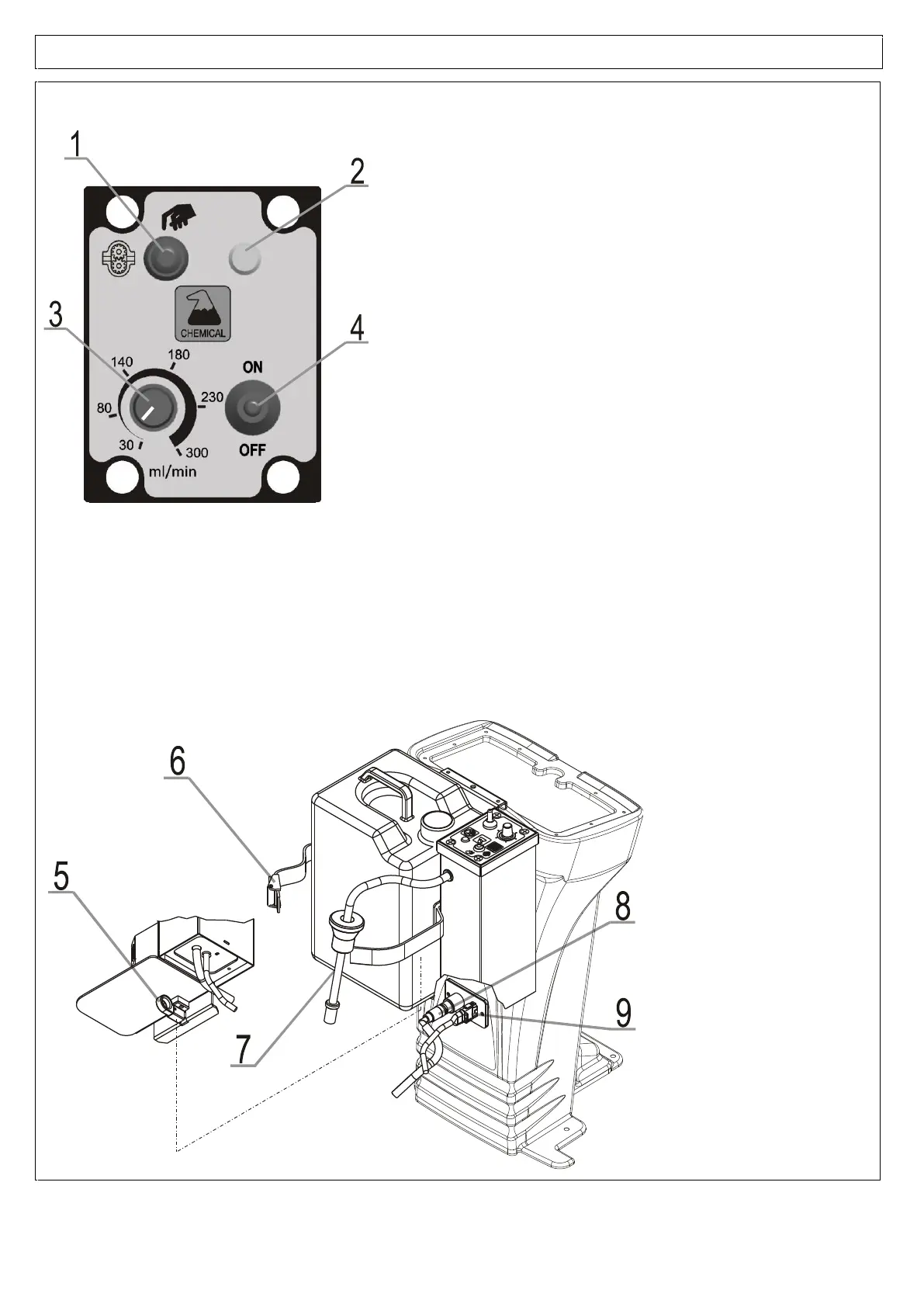

Fix the tank containing the detergent by strap pos.6 and put in the tank
tube POS. 7.
To operate the detergent dosing pump turn ON the toggle switch pos.4.
When the pump is on the light Pos.2 comes on green.
WARNING: THE PUMP DETERGENT DOSING PUMP WORKS
ONLY WHEN THE BRUSHES ARE ACTIVE.
The amount of detergent fed into the solution is adjusted by
potentiometer pos.3(The amount of detergent varies from 30 to 300 ml
/ min depending on the position of the potentiometer as indicated on
the dashboard).
To turn off the pump set the switch pos.4 to OFF.
To bleed the circuit, turn the switch pos.4 ON, press the button Pos. 1
and use clean water.
To remove the complete system of detergent dosage off the machine:
• Push the quick release fitting pos.8 towards the machine and pull
the tube to disengage;
• Disconnect the connector pos.9;
• Pull the hook positioned under the structure pos.5, lifting the group
and remove it from the machine.
To reassemble the kit on the machine, align 3 pegs on the back of
the group with the holes on the fixing plate, lower the group that
will snap automatically to the machine.
Reconnect the hose and the electrical connector to the machine.
