BRUSH DRIVE BUTTON
Push this switch to position 1 to activate the brush function.
The brushes will start spinning when the brush plate is lowered and once the forward
and reverse gear pedal is pushed.
When the pedal is released the brushes will spin for another 2 seconds before stopping.
The solenoid valve is connected to the brush function; it opens and closes the solution
flow automatically.
Push this button to position 0 to stop the brushes and close the solenoid valve.
9
BRUSH MOTOR PROTECTOR FUSE (30A)
When the brush motors exceed a power draw of 30A, the fuse will engage and stop the
motors.
Wait 1-2 minutes then press the fuse button and the brushes will resume operation.
If it occurs repeatedly, check to see if there are any objects that prevent the brushes
from spinning freely or if the type of brushes are suited for the type of floor.
10
BATTERY CHARGING INDICATOR
The green LED light indicates that the battery is charged.
When the red light comes on after about 20 seconds, the brush motors will stop
running. Go to the charging zone and charge the battery.
Warning: The indicator is configured for acid-lead batteries.
To avoid damaging the batteries, make sure to change the settings when installing
other types of batteries (GEL, AGM, etc).
In case different batteries are fitted (GEL, AGM, etc.) the setting must be changed
to avoid damaging the batteries. (SEE PAGE 15)
11
HIGH/LOW SPEED BOTTON
Pushing the hare side, there is a normal speed
Pushing the turtle side, the forward and reverse speed is reduced of a 50%
EMERGENCY SITUATIONS
2
3

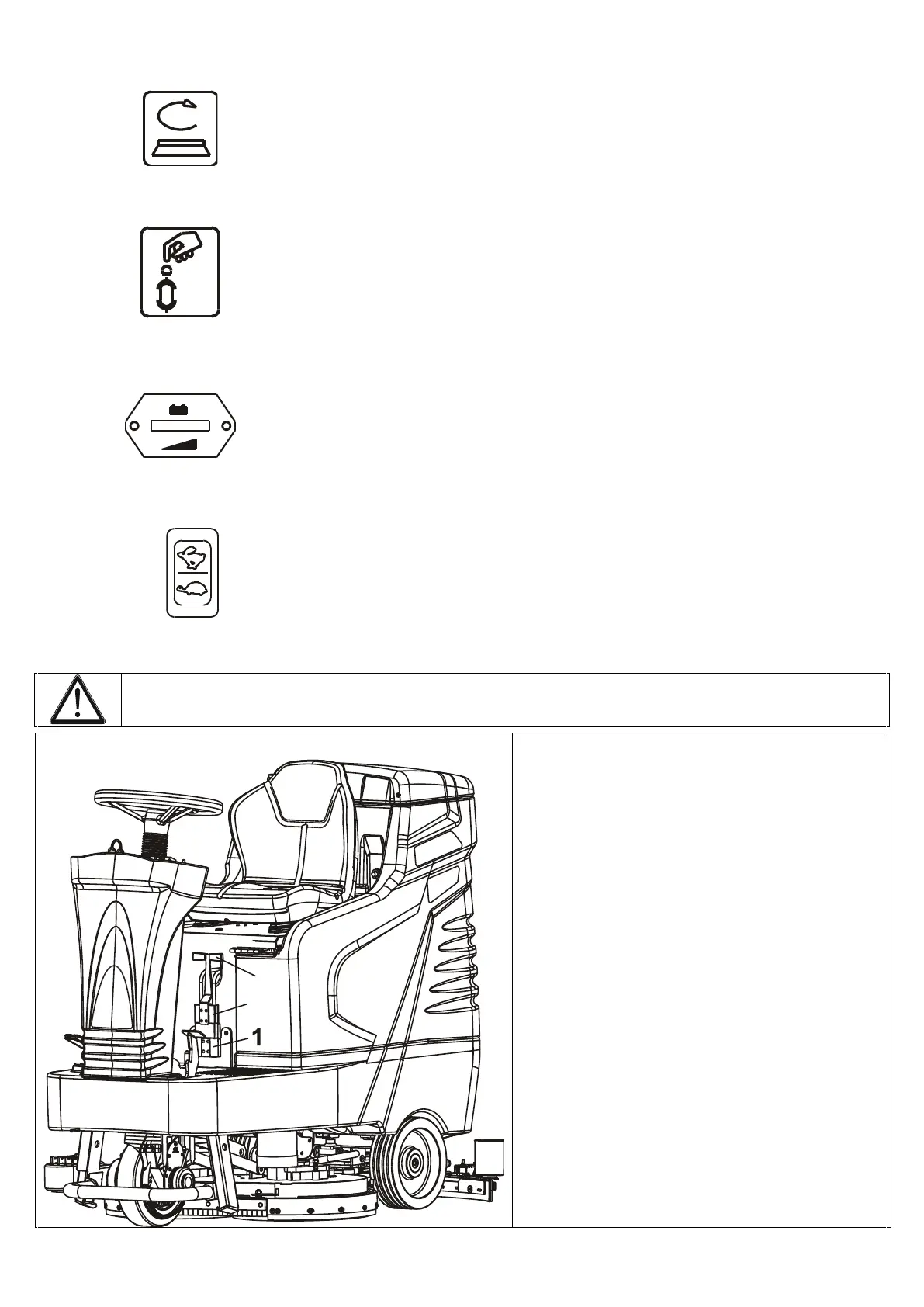

To stop the machine in case of an emergency
and lock all functions, unplug the mobile
connector (pos. 2) from the fixed connector
(pos. 1) by pulling the handle upwards (pos. 3).
To resume the machine’s normal operation,
plug the mobile connector (pos. 2) into the fixed
connector (pos. 1) and push the handle (pos. 3)
downwards until it is released.
