Eureka E75/2 - Fuse Checking and Replacement

33
CHECKING OR REPLACING FUSES
1
2
3
4
5
6
7
8
9
10
11
12
13

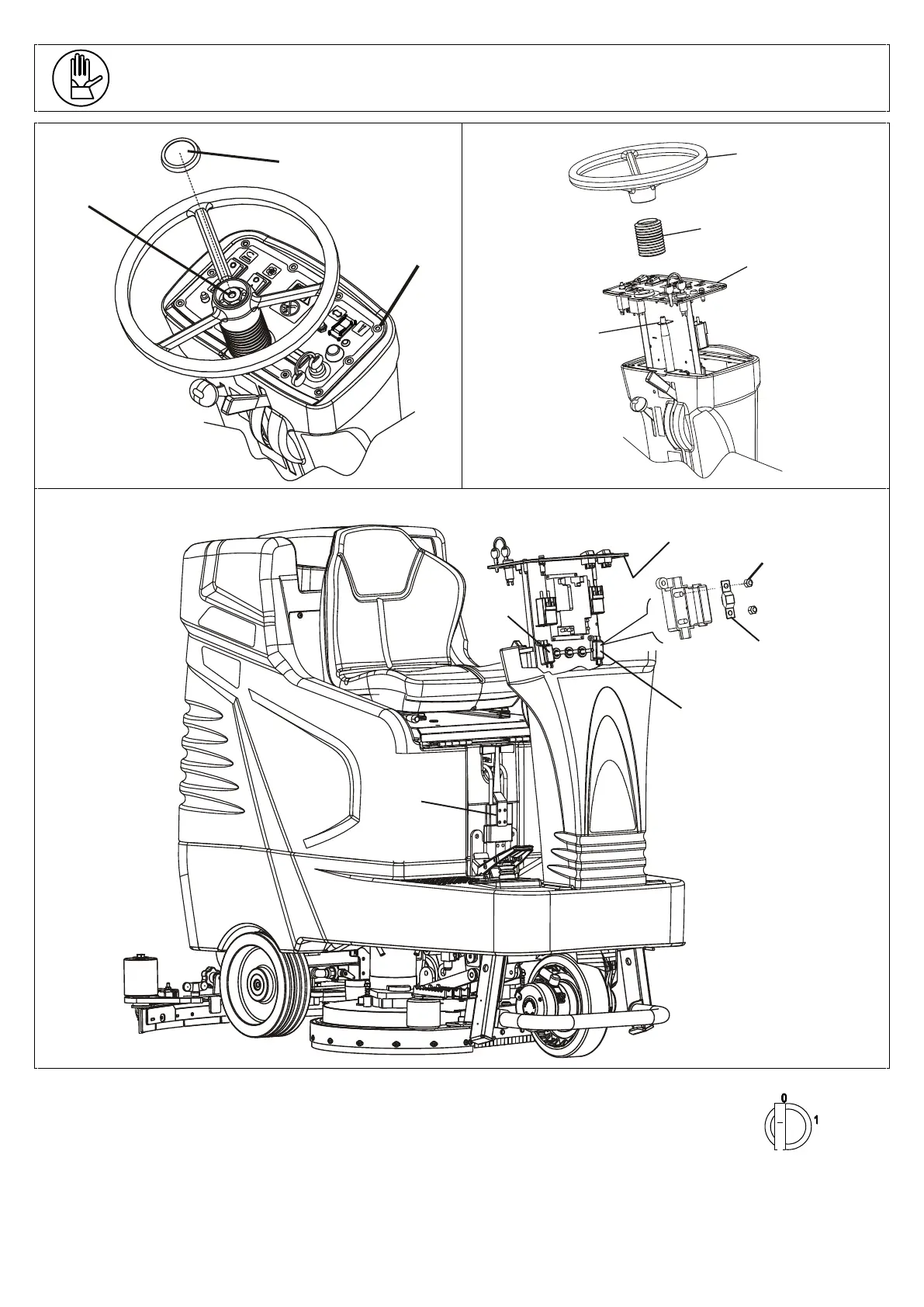

To check and replace fuses proceed as follows:
• Stop the machine in a levelled area and turn the key to position 0;
• Unplug the mobile connector (pos. 8);
• Remove the cap from the hand-wheel (pos. 1);
• The hand-wheel (pos. 4) is fitted with a device designed for quick removal.
Use a 27mm wrench to unscrew the nut (pos. 2) until the hand-wheel is removed from its housing on the shaft;
• Remove the bellows (pos. 5);
