Eureka E75/2 - Brush and Disc Installation; Brush and Disc Removal

21

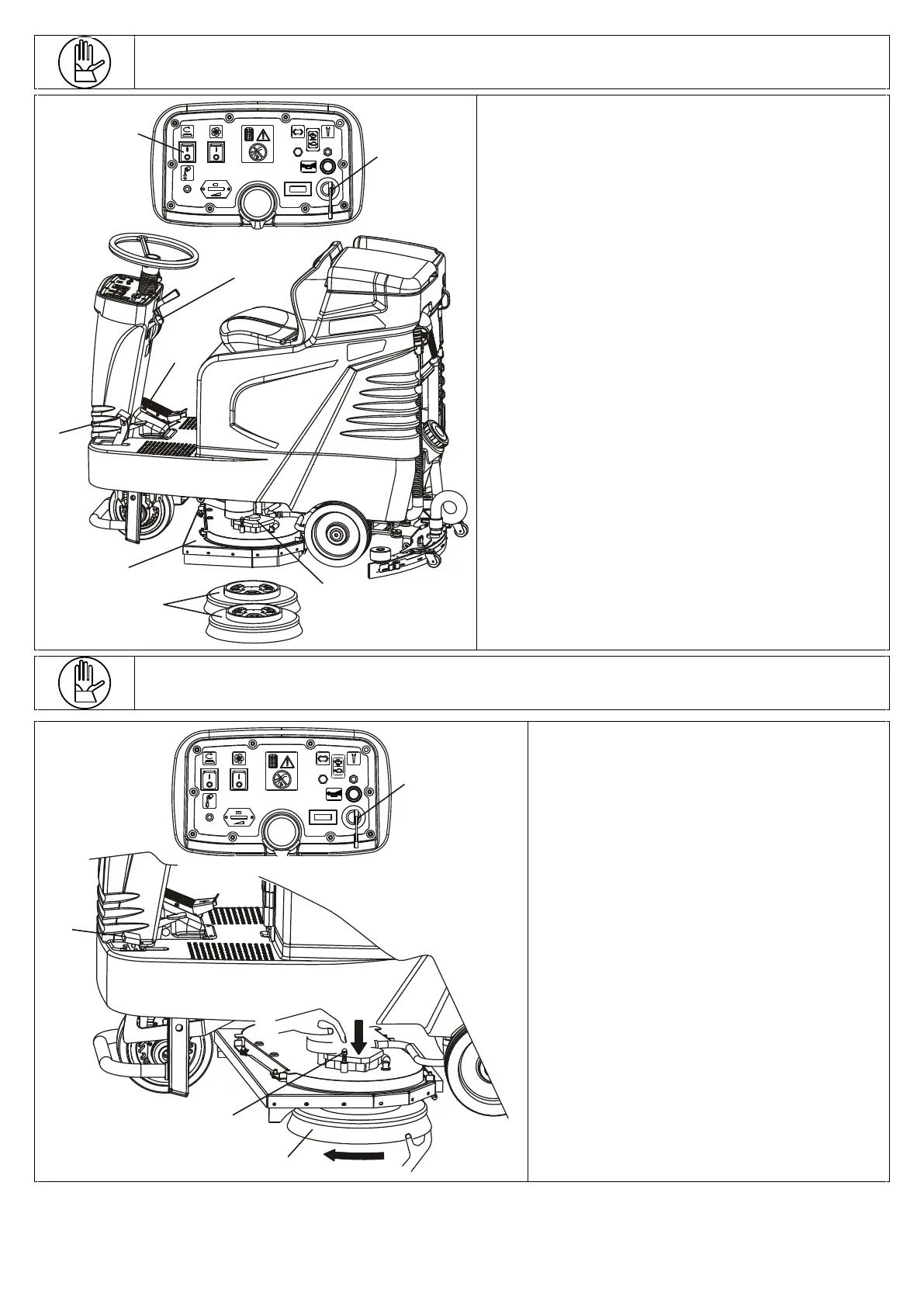

INSTALLING BRUSHES AND ABRASIVE DISCS
1
2
3
4
5
6
7
8
To attach the brushes or the driving devices with the
abrasive discs, follow the instructions below:
• Turn the key (pos. 7) to position 0 to turn off the
machine, making sure that the brush plate is raised;
• Position the brushes or disc pad holders (pos. 1)
beneath the brush plate (pos. 2) using two hands to lift
the splash guard (pos. 3);
• Lower the brush plate (pos. 2) using the pedal (pos. 4)
following the instructions on how to move the brush
plate;
• Turn the key (pos. 7) into position 1 and push the
brush switch into position 8;
• Slightly push the drive pedal (pos. 5). The brush
motors will start running and the machine will start to
move slowly.
Go back and forth using the forward and reverse gear
until the brushes are locked into place;
• While performing this operation, it is recommended to
close the water using the lever (pos. 6) to avoid spills.
REMOVING BRUSHES AND ABRASIVE DISCS
4
1
2
3
To remove the brushes or the driving devices with
the abrasive discs, follow the instructions below:
• Turn the key (pos. 4) into position 0 to turn off
the machine;
• Unplug the battery mobile connector from the
fixed connector by pulling the handle upwards;
• Use the pedal (pos. 3) to raise the brush plate;
• Press the button (pos. 2) and use one hand to
turn the brush (pos. 1) into the direction
indicated by the arrow until the brush no
longer spins freely.
At this point, pull towards the direction
indicated by the arrow using force until the
brush is detached;
• Repeat the same operation on the other brush
following the opposite direction.
