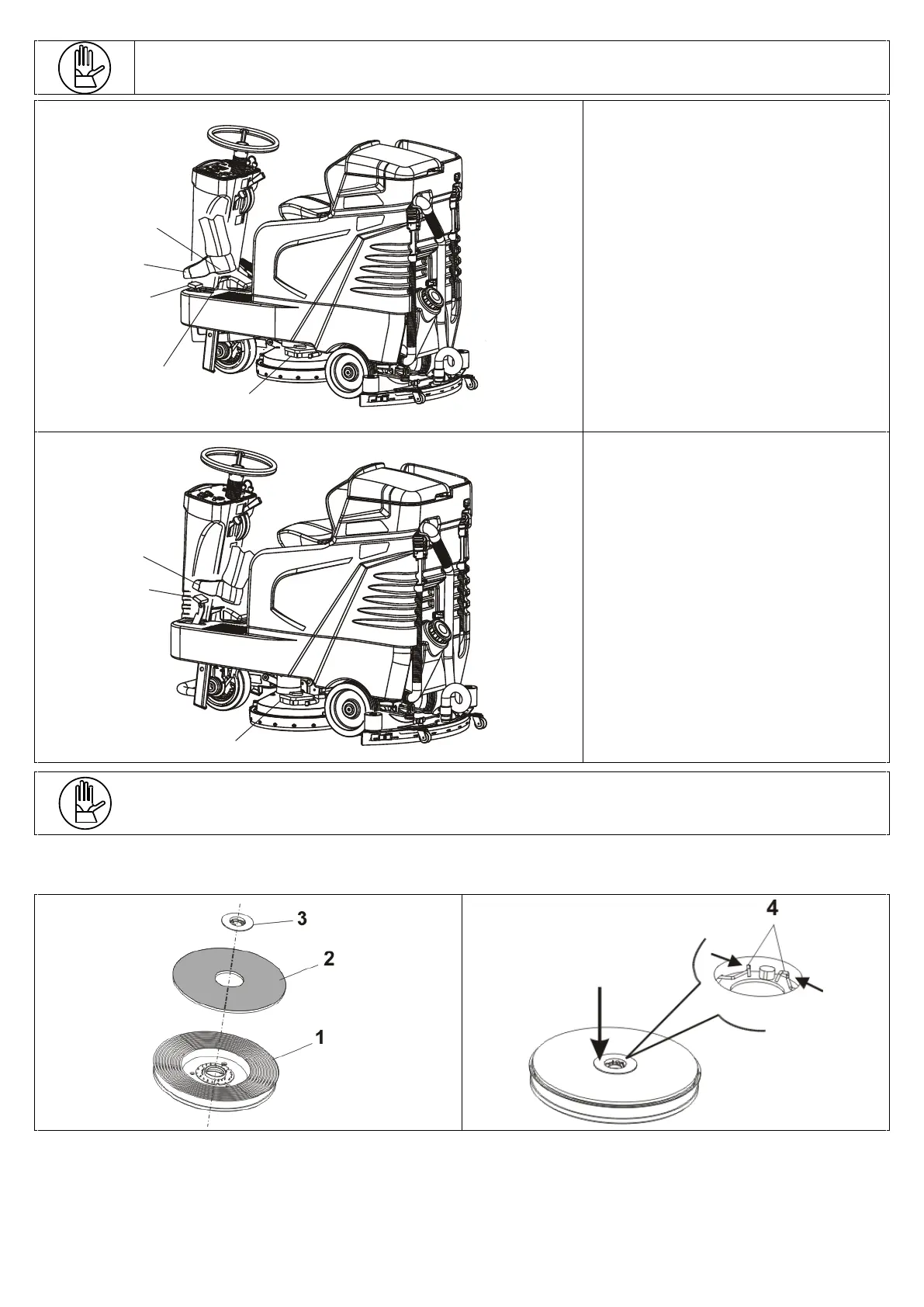

MOVING THE BRUSH PLATE
1
2
3
4
5
Use the pedal (pos. 3) to move the brush
plate (pos. 1).
Follow the instructions below to lower the
brush plate:
• Use the heel of the foot (pos. 5) to
push the release lever (pos. 2). Use the
toes of the foot (pos. 4) to follow the
pedal (pos. 3) until the brush plate
(pos. 1) leans against the floor.
1
2
3
To raise the brush plate (pos. 1) use the
foot (pos. 3) and push the pedal (pos. 2)
until it is locked into place.
INSTALLING THE ABRASIVE DISC INTO THE DISC PAD HOLDER
The machine can either work with brushes or with different types of abrasive discs mounted on the provided driving
devices.
To mount the abrasive disc on the disc pad holder, follow the instructions below:
• Remove the disc lock (pos. 3) from the driving device (pos. 1) by pushing the 2 ends of the fixing spring (pos. 4)
against each other;
• Position the abrasive disc (pos. 2) and centre it on the driving device (pos. 1);
• Place the disc lock (pos. 3) on the centre and apply force pushing it until the spring (pos. 4) locks into place. Use the
palm of the hand to do so or a foot if the driving device is placed on the floor.
