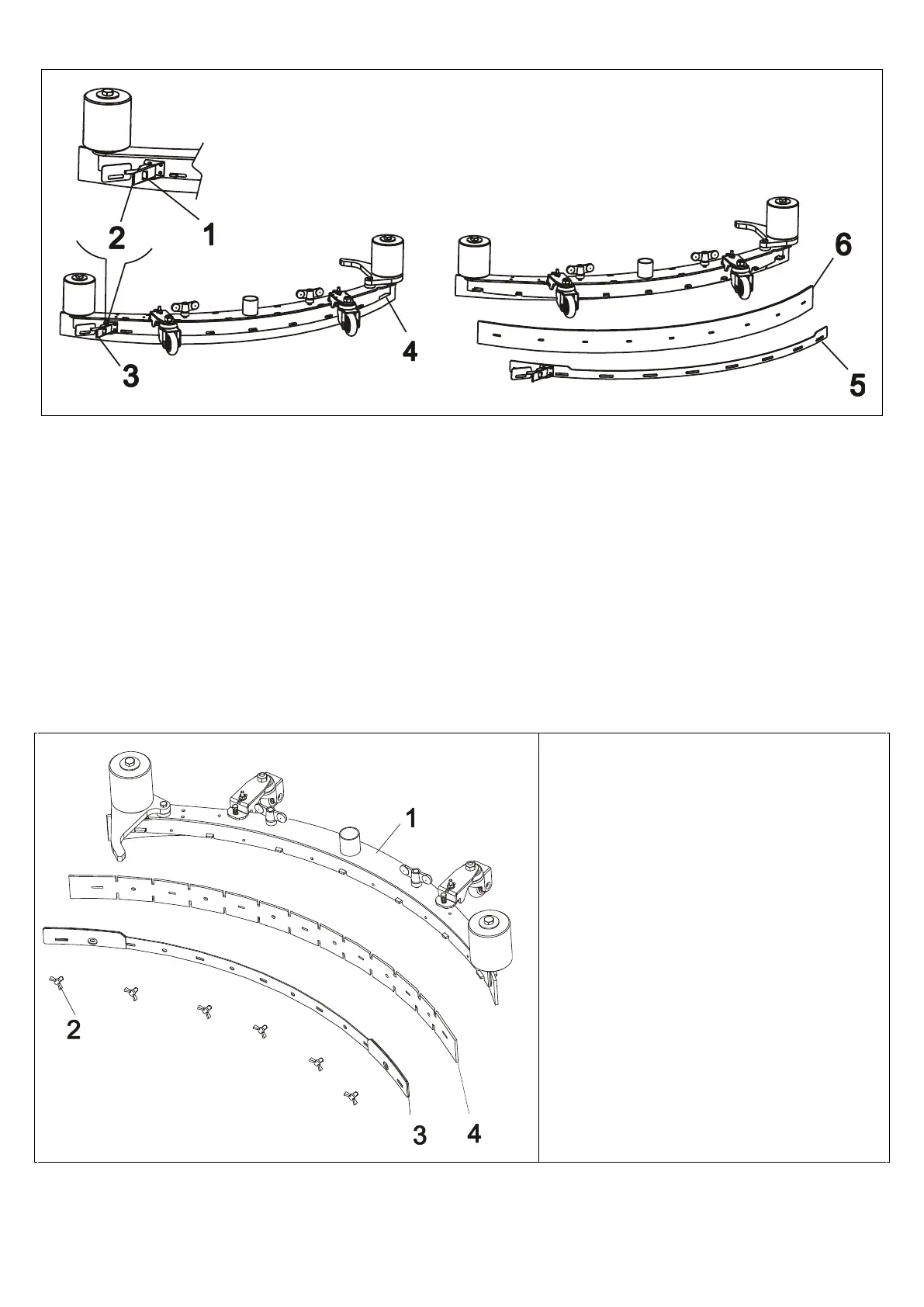

REPLACING THE REAR BLADE
Follow the instructions below to rotate or replace the rear blade:
• Remove the squeegee from the machine;
• Remove the blade locking plate (pos. 5) by unlocking the retainer (pos. 3).This retainer is fitted with a safety device
that keeps it from opening involuntarily. To release the retainer push the small lever (pos. 1) towards the outer part of
the squeegee and pull the lever (pos. 2) towards the rear part of the squeegee.
• At this point, remove the blade locking plate (pos. 5) from the other end of the squeegee (pos. 4).
• Remove the blade (pos. 6).
• Rotate the blade and mount it back so that a new edge is on the drying side.
• Lock the locking plate (pos. 4).
• Hook the retainer (pos. 3) and lock it into place.
• By remounting the blade (6) please pay attention that the blade lays on the floor regularly and uniform in its entire
length.
REPLACING THE FRONT BLADE
Follow the instructions below to replace the
front blade:
• Remove the squeegee (pos. 1) from the
machine;
• Remove the wing screws (pos. 2);
• Remove the blade locking plate (pos. 3);
• Remove the blade (pos. 4);
• If the external edge is in good condition,
rotate the blade and mount it back so that a
new edge is on the drying side; otherwise
replace it with a new one;
• Put the blade locking plate back into place
(pos. 3);
• Put the wing screws (pos. 2) back into place
and check that the blade (pos 4) is regular
and make sure not to tighten the screws
excessively, causing the rubber blade to
deform (swell).
