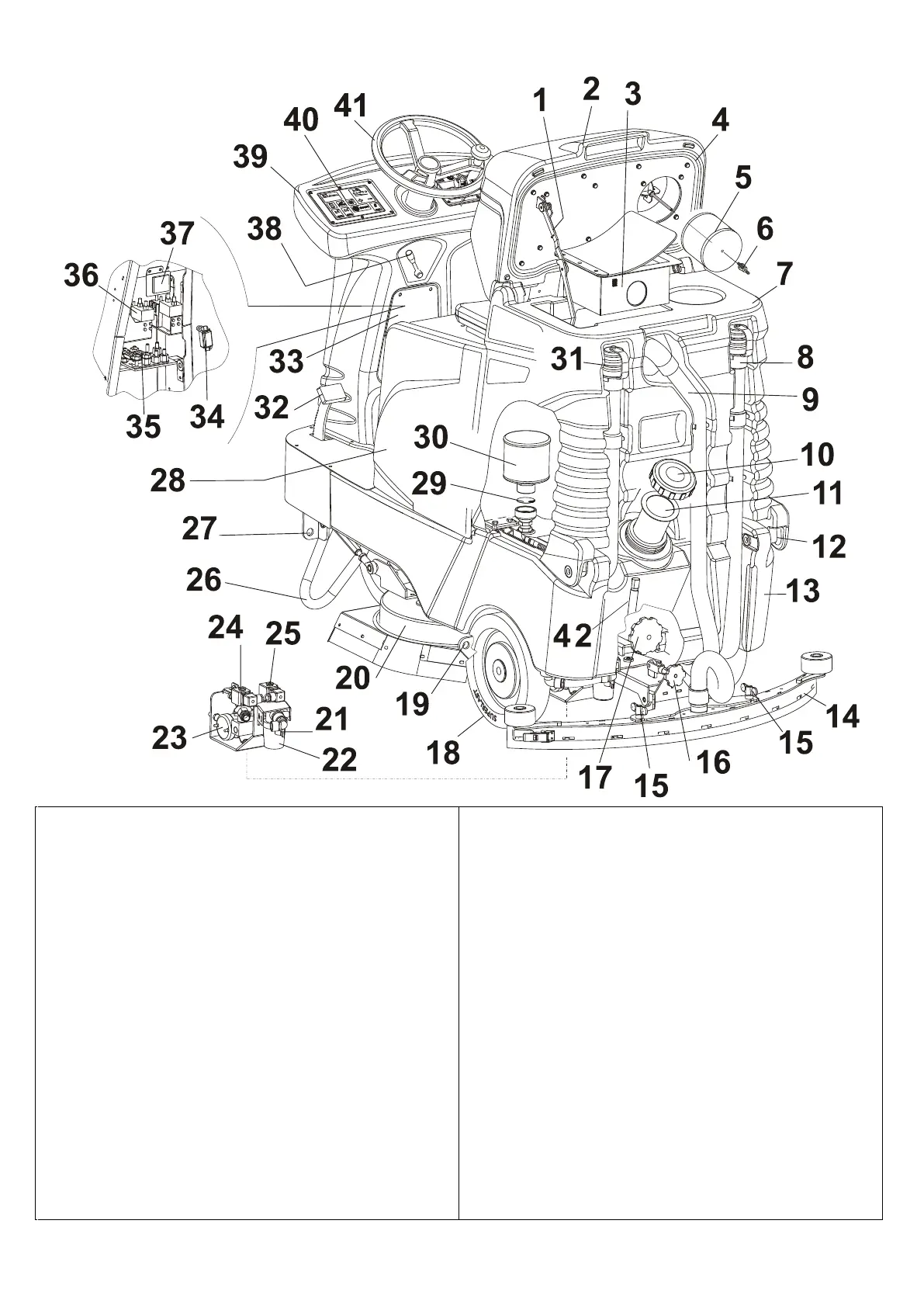

1. Opening lid safety device
2. Lid and vacuum motor seat
3. Gathering material gasket
4. Lid gasket
5. Vacuum filter
6. Blocking filter device
7. Recovery tank
8. Solution drain pipe
9. Squeegee vacuum pipe
10. Solution tank filling cap
11. Filling-in solution special device
12. Pivots for tank rotation
13. Solution tank
14. Squeegee
15. Squeegee locking knobs
16. Squeegee adjusting inclination handwheel
17. Squeegee adjusting pressure handwheel
18. Rear wheel
19. Rear anchor point
20. Brush tray
21. Solution faucet
22. Solution filter
23. Solution pump
24. Recovery tank electrovalve
25. Solution electrovalve
26. Anticapsizing device
27. Front anchor point
28. Battery seat
29. ECO-SYSTEM safety filter
30. ECO-SYSTEM filter
31. Recovery tank drain pipe
32. Pedal brake
33. Fuses inspection door
34. Fuse holder
35. Fuses
36. Remote-control switches
37. Fuses
38. Parking brake locking and unlocking device
39. Machine front nose
40. Left control panel (control card)
41. Handwheel
42. Solution tank level
