WARNING! THE CHARGER IS PRESET FOR LEAD BATTERIES. TO MOUNT GEL OR AGM BATTERIES,
BOTH THE STATUS LED AND THE CHARGER HAVE TO BE SET ACCORDING TO THE TYPE OF
BATTERY WHICH IS TO BE USED. TO THIS AIM, PLEASE CONTACT EITHER A TECHNICIAN OR AN
AUTHORIZED RETAILER.
To charge the batteries follow the instructions below:
Bring the machine into a stop position in a flat surface area, turn it off and put on the brake
Before charging the battery make sure to scrupulously follow the battery charger instruction manual provided
with the machine;
The recharging of the battery is to take place in well-aired environments.

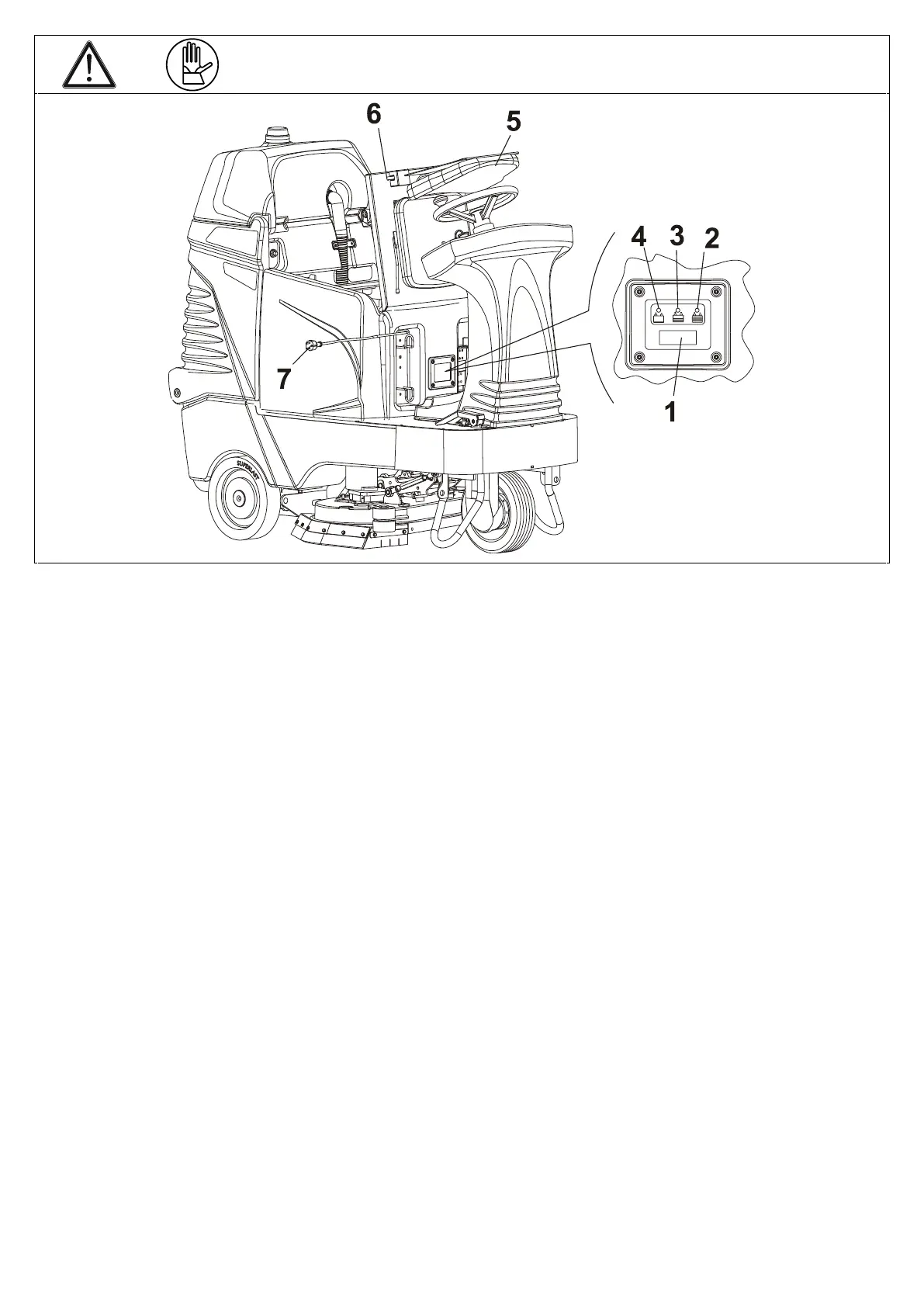

Open the hood of the seat pos.5 by releasing the locking device pos.6;
The battery charger can run with a voltage range 230 VAC, for the use with different voltages it is advisable to
use a proper charger.
Uncoil the cable from the cable reel located on board the machine and connect the plug pos.5 into a standard electrical
power socket. While plugging the socket, the display on the charger (pos.1) will come on and start reading which type
of battery is being used (whether “ACD” or “GEL”).
At this point the charger will make a test to check if it is necessary to charge the battery. In this case, the charging
sequence will be enabled. If the battery does not need to be charged, the charging sequence will not be activated.
If the battery is not connected to the charger or it has reversed polarity, the display will read the following: “BAT”.
For any other anomaly shown in the display, refer to the manual of the battery charger.
WARNING: WHEN PLUGGING THE BATTERY CHARGER INTO THE ELECTRICAL SOCKET, THE
MACHINE FUNCTIONS ARE AUTOMATICALLY DISABLED.
There are 3 led lights located above the battery charger:
Position 4“RED” light – position 3 “YELLOW” light – position 2 “GREEN" light
These lights indicate the charging status of the battery. The GREEN light indicates that the charging cycle is
completed and the plug can be disconnected from the electrical socket and rolled back into the cable reel.
Once the battery is charged make sure to check the electrolyte level and if necessary fill it up only using distilled
water.
The gas released during the charging process can cause explosions if it comes into contact with flames or sparks.
Battery acid should never come into contact with the eyes, skin or clothes, make sure to wear goggles, gloves and
appropriate clothing.
If it comes into contact with the eyes or skin, wash immediately with abundant water.
Do not place metal objects on the batteries.
Do not fill the batteries with sulphuric acid or other products.
