Eureka E85 - MACHINE SETTING; MOUNTING THE SQUEEGEE; ADJUSTING THE SQUEEGEE

16

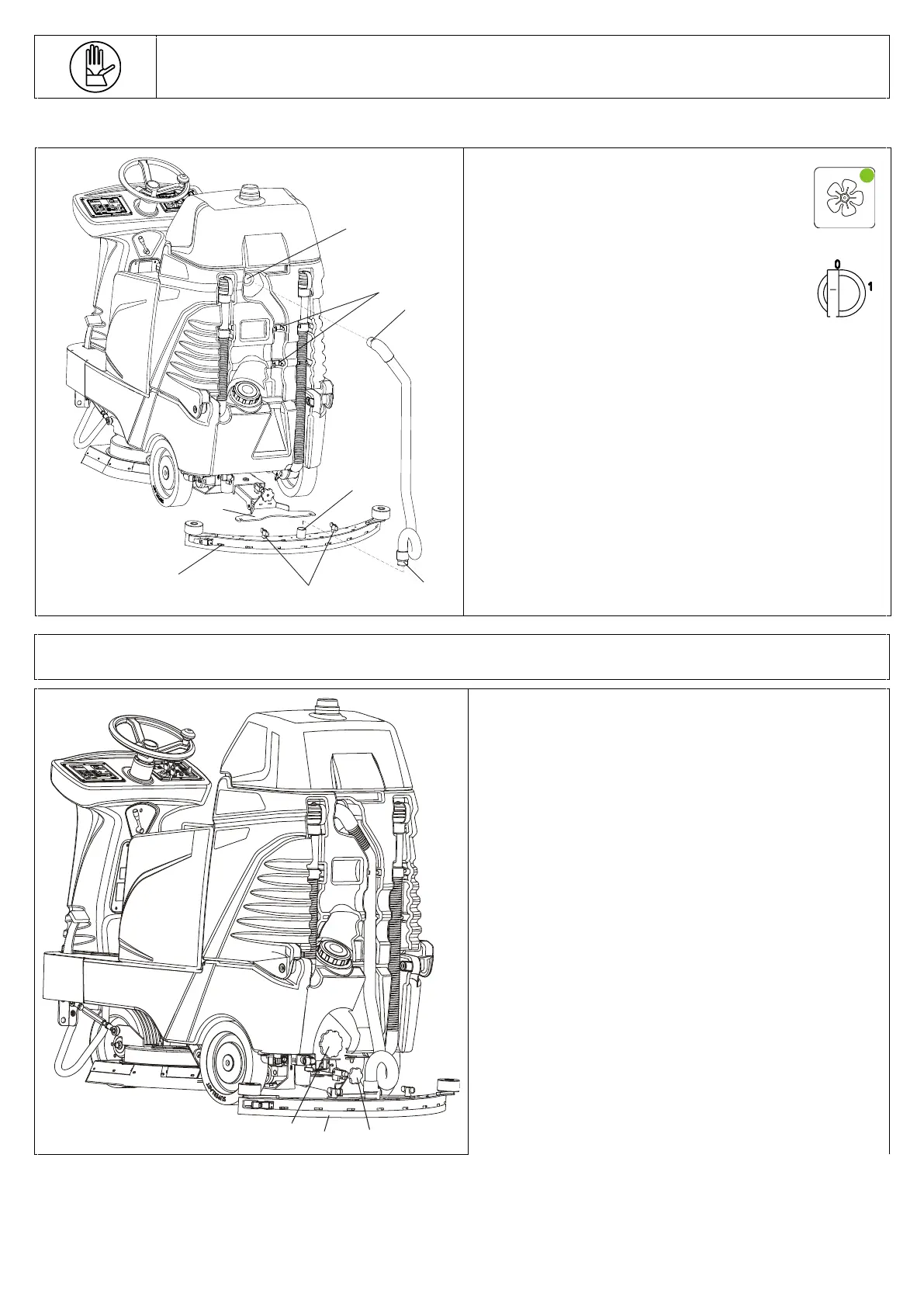

MOUNTING THE SQUEEGEE
Follow the instructions below to mount the squeegee to the machine:
1
2
3
4
5
6
7
8
 disable the suction function to keep the
squeegee support in up position and
facilitate assembling procedures;
 park the machine on a flat surface, insert
the brake, switch it off and remove the
key;
 Fit in the squeegee (pos.1) into the squeegee support
(pos.2) centring the knobs (position 3) into the
corresponding slits on the support (position 2).
 Once the squeegee is fitted completely, secure the knobs
(position 3).
 Connect the squeegee hose from the curved side (pos.6)
into the special hole located in the tank (pos. 8) nand
press down until it fits into place completely
 Mount the other end of the hose, from the roll-up side
(position 4) into the squeegee in the cuff pos. 5
 Connect the hose in the special locking springs pos. 7
ADJUSTING THE SQUEEGEE
3
1
2
There are 2 types of adjustments that can be carried out on
the squeegee:
 Inclination adjustment, with knob position 1.
It adjusts the inclination of the squeegee in order to
have a constant pressure over the entire length of the
blade (position 2).
Turn the knob counter-clockwise if there is too much
pressure on the outer points and little pressure on the
central area.
Turn the knob clockwise if there is little pressure on the
outer points and too much pressure on the central
area.To make the adjustment lower the squeegee, turn
on the suction fan and drive forward slowly. Examine
the pressure distribution on the blade and if necessary
correct the inclination as described above.
 Pressure adjustment, using the knob in position 3.
This allows for optimal pressure on the blade (position
2) which can be adjusted for each type of floor and for
each type of blade.
For rough floors or uneven floors, increase the pressure
by turning the knob (position 3) clockwise.
For smooth floors, lower the pressure by turning the
knob counter-clockwise.
