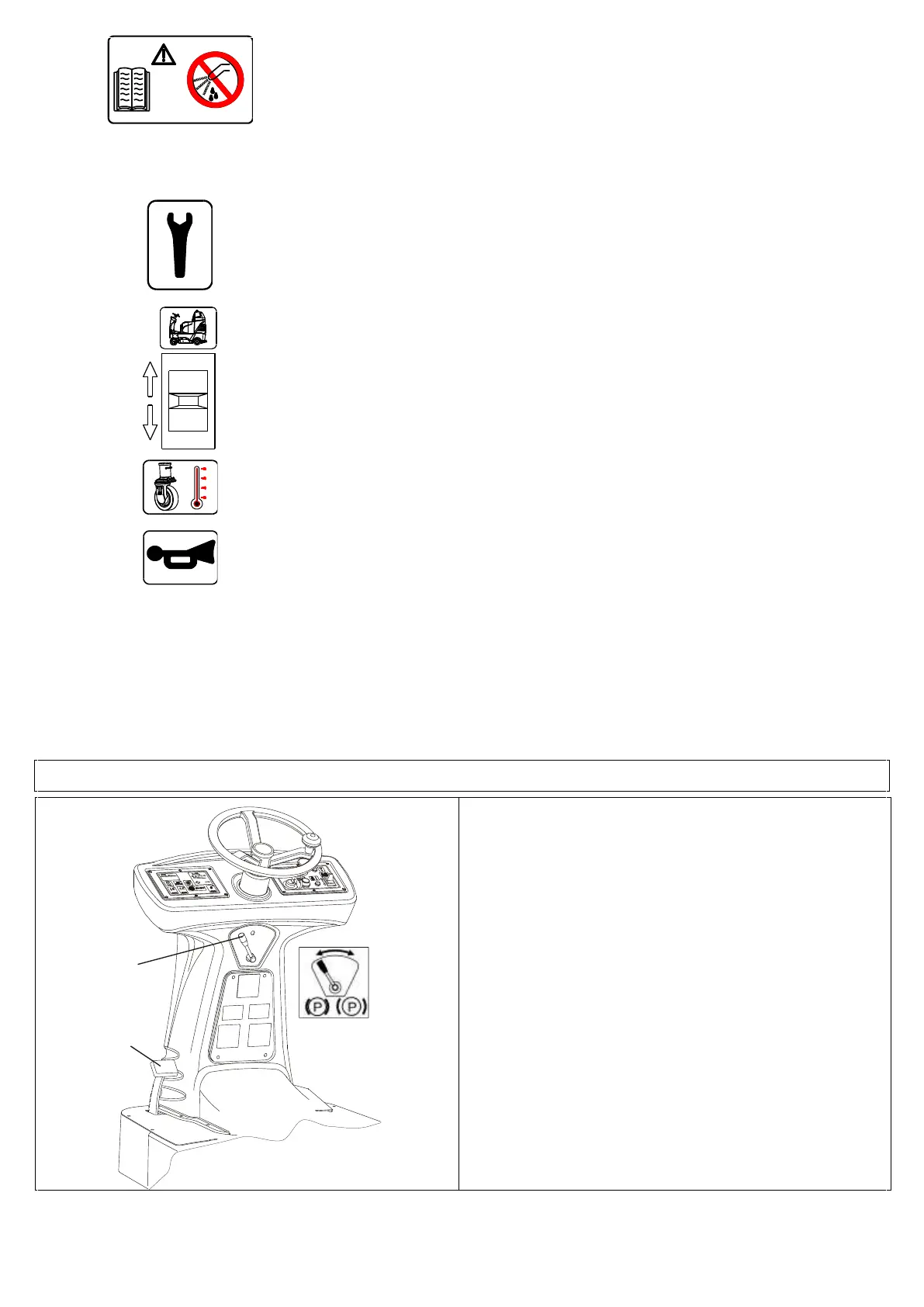

WARNING SYMBOLS
The symbol on the left advises to use the instruction manual at all times for any information
regarding the machine, whereas the symbol on the right forbids the use of water on the
instrument panel as there are electrical parts.
EMERGENCY BUTTON
This button is used to halt the machine in case of emergency and to lock all of its functions.
Turn the knob clockwise to reset the power.
GREEN WARNING LIGHT: DRIVE ALARM
It shows any anomalies present on the motor’s drive board.
The green light will come on under normal operation. The light will start flashing if
there is a problem with the drive system.
The number of blinks indicates the type of fault ( see troubleshooting table)
REVERSE GEAR SWITCH
It allows the operator to change the driving direction of the machine.
An acoustic signal will be emitted when the reverse gear is engaged. To avoid damages,
the squeegee will automatically lift when the reverse gear is engaged.
The squeegee will automatically lower when the drive forward position is resumed.
RED WARNING LIGHT: FORWARD GEAR MOTOR TEMPERATURE
If the temperature on the gear motor casing exceeds 75-85°C, the red warning light will
come on and the gear motor will stop operating, emitting a buzzing warning.
HORN SWITCH
Pressing the button, it sounds the horn.
KEY-OPERATED SWITCH
The ignition sequence will start by rotating the key-operated switch clockwise (position 1);
a series of information will appear on the display in successive order. THE BUTTONS
ON THE INSTRUMENT PANEL AND THE DRIVE CONTROLS SHOULD NEVER
BE TOUCHED DURING THIS SEQUENCE.
The charge level of the battery will appear on the display at the end of the sequence, e.g.
100 - 90 - 80 etc.
The machine is ready to be used only at this point.
SERVICE BRAKE
The machine is fitted with a service brake that operates
on both the rear wheels. By pushing the pedal pos. 1,
the brake gets inserted.
PARKING BRAKE
The machine is fitted with a parking and emergency
brake that operates on both the rear wheels.
To lock the machine push the brake pedal (pos.1)
down, turn the lever pos.2 anticlockwise to its
maximum stroke and then release it
Push the pedal (position 1) and turn the lever (position
2) clockwise to release the brake.
