PRIMARY FUNCTIONS AND CONTROLS

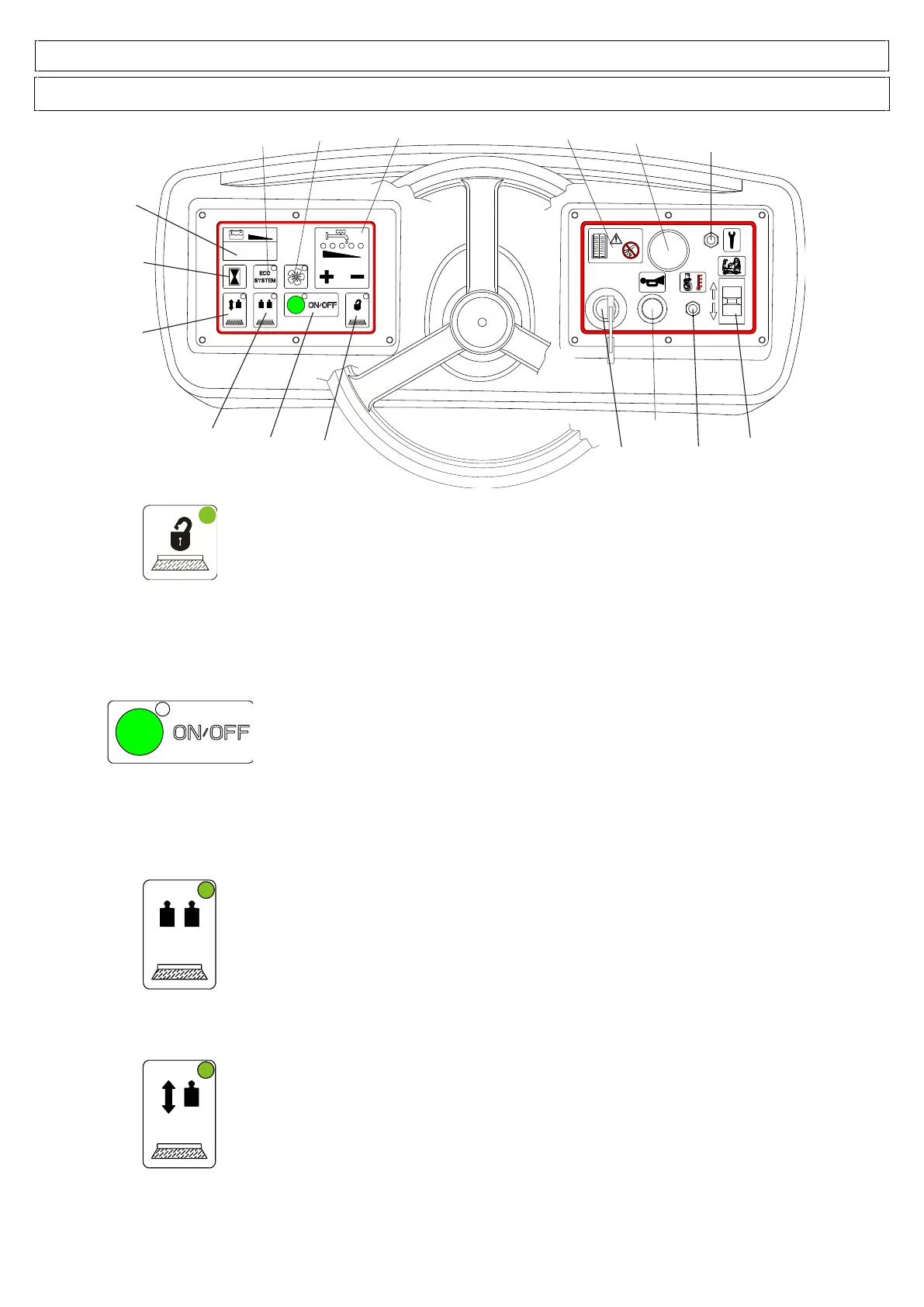

CONTROL PANEL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
BRUSH RELEASE BUTTON
This button will enable the brush release sequence.
The led light will start blinking during this sequence.
This operation shall be carried out with the still machine, with desactivated
brushes and raised brush plate.
2
GREEN ON/OFF BUTTON
This button enables the operator to use all the functions of the machine. Press the button
once to lower the brush plate and the squeegee, the led lights on this button and on the
brush and suction fan buttons will come on. Push the drive pedal to start rotating the
brushes and the solution metering pump.
The vacuum motor will also turn on. The quantity of water used will equal to the
quantity stored after the last use.
Press this button again to stop the operation of the brushes and the brush plate will lift
from the floor.
The squeegee will also lift from the floor with a preset delay to allow the operator to dry
the entire floor.
If this button is pressed when the tank is empty, the five led lights on the solution
metering unit will start flashing and the brush function will not be enabled, but only the
squeegee. When this occurs, make sure to fill the tank.
3
EXTRA-PRESSURE BUTTON
Press this button to increase pressure on the brush plate; a green led light will come on.
This function can be activated only if the brush function is already active. Switch it off
to disable extra-pressure and work in normal conditions.
By pressing the brush button when working on extra-pressure mode, you will cause the
brushes to stop rotating and the brush plate to automatically rise.
4
BRUSH BUTTON
Press this button to enable the brush function; a green led light will come on and the
brush plate will descend. The brushes will start rotating when the forwarts pedal is
pressed.
When the forwards pedal is released, the brushes will rotate for other 3 seconds before
stopping. In case of prolonged halt, after 1 min the brush plate will automatically rise.
When the machine is in motion with lowered brushes, by pressing the brush button the
brushes will stop rotating and the brush plate will automatically rise.
With the extra-pressure function on, by pressing the brush button the brushes will stop
rotating and the brush plate will automatically rise.
The electrovalve and the solution pump are also connected to the brush function and
allow the user to automatically open or shut the flow of the solution while the brush is
