ATTENTION
Fuse pos.15: 80A fuse OVER-ABSORPTION PROTECTION FOR BRUSH MOTORS;
TO REPLACE IT, PROCEED AS FOLLOWS:
Remove the 2 nuts pos.16;
Replace 80 A fuse pos.15 USING EXCLUSIVELY THE SPARE FUSE BY EUREKA;
Reassemble the 2 nuts.
Fuse pos.14: 100A fuse PROTECTION OF THE DRIVE SYSTEM
TO REPLACE IT, PROCEED AS FOLLOWS:
Remove the 2 nuts pos.17;
Replace 100 A fuse pos.14 with a fuse of equal amperage and with the same manufacturing characteristics;
Reassemble the 2 nuts.
Fuse pos.21: 20 A fuse CONTROL BOARD CARD PROTECTION;
TO CHECK OR REPLACE IT, PROCEES AS FOLLOWS:
Use a 2.5mm Allen wrench and remove the 8 clamping screws (see position 18) from the instrument panel, including
the respective nylon washers;
Carefully turn the instrument panel (see position 19), follow the arrows and make sure not to jerk it as it may damage
the electrical system;
Remove the 20 A fuse (see position 21), check it and replace it if necessary with a fuse of equal amperage;
Put the instrument panel back into place (see position 19)
Put the washer and screws back into place (see position 18) and close the panel using the special wrench , make sure to
apply enough pressure on the seal beneath the panel (see position 20).
Once the fuses are checked or replaced, put everything back together and bring the machine back to its operating
condition

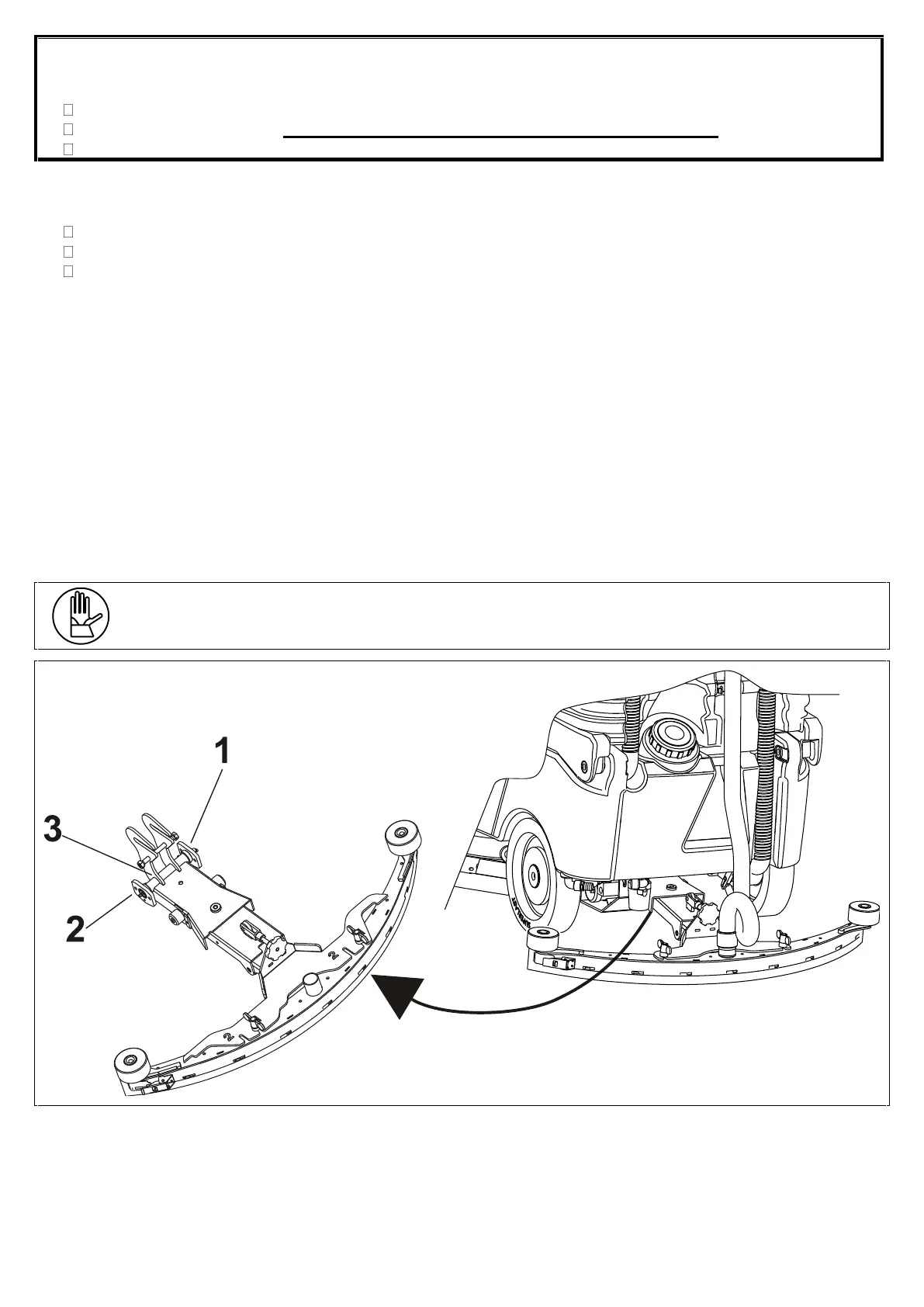

Once every 100 hours, see to the greasing of the squeegee rotating pivot pos. 3 by filling with grease the two grease cups
pos. 1 and 2 placed on the extremities of the pivot.
