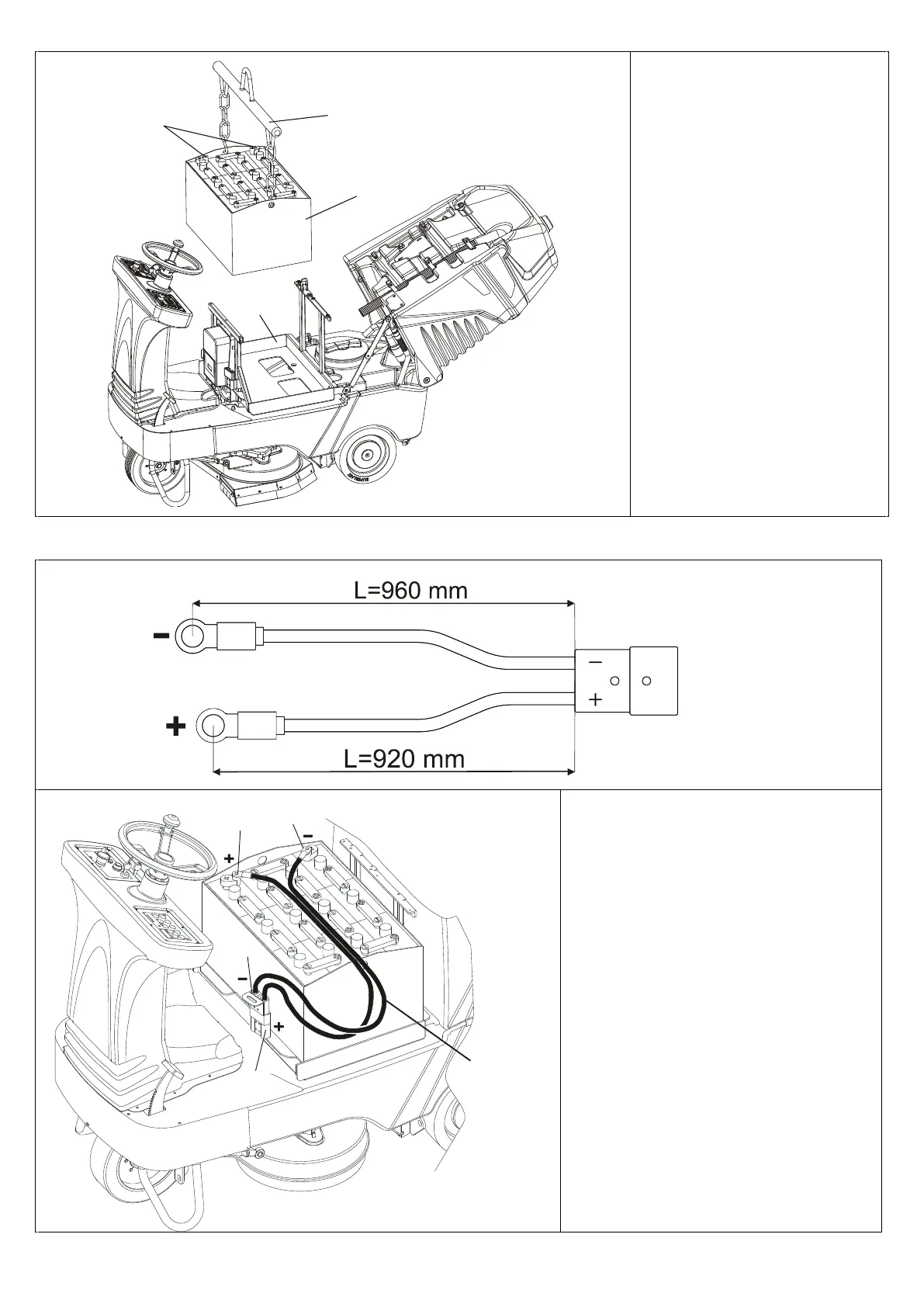

To install the battery (position
2), lift it with an overhead
travelling crane, a carriage or a
crane and use a lifting beam
(position 1), chains or belts to
fasten it.
Position the battery inside the
compartment (position 4) located
on the machine; make sure to
position the poles (position 3) on
the right side of the machine as
shown in the figure at the bottom
of the page.
After placing the battery on the edge of the
machine, connect the battery cable
PICTURE A in accordance with the pole
instructions as shown in mobile connector
pos. 3 for- respectively- positive and
negative pole connections.
Assembly the cable seat group by making
the charger cable passing through the
corresponding plastic slot.
Make the mobile connector pass through the
corresponding slot on the battery seat.
Connect the mobile connector pos. 3 with
the fix connector pos. 4 mounted on the
machine.
