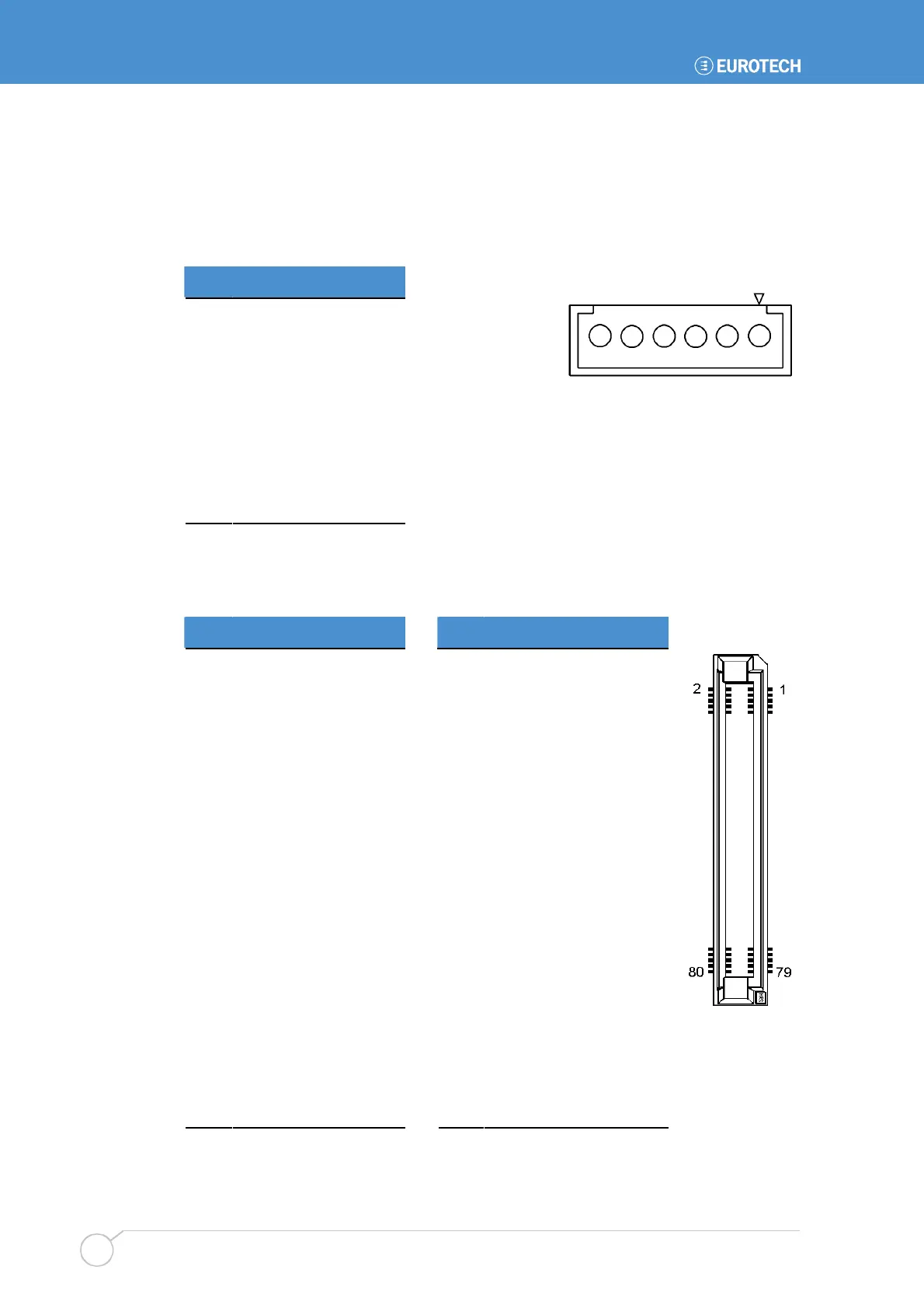

J15 – Backlight connector
6-way 2mm pitch shrouded header.
Mating connector: JST PHR-6
Mating connector crimps: JST SPH-004T-P0.5S
Pin Signal name
1 +12V
2 Ground
3 +5V
4 Backlight control
5 Backlight En
6 Ground
J16 – Video option and USB ports 5/6 connector
Hirose FX8C-80S-SV5.
Pin Signal name Pin Signal name
1 +3.3V PCIVAUX 2 Ground
3 +3.3V 4 DVOBD11
5 +3.3V 6 DVOBD10
7 +3.3V 8 DVOBD9
9 +5V 10 DVOBD8
11 USB POWER 12 DVOBD7
13 USB POWER 14 DVOBD6
15 USB POWER 16 DVOBD5
17 Ground 18 DVOBD4
19 USB4 D+ 20 DVOBD3
21 USB4 D- 22 DVOBD2
23 Ground 24 DVOBD1
25 USB5 D+ 26 DVOBD0
27 USB5 D- 28 Ground
