Please contact Everbilt at 1-844-883-1872 for further assistance
.

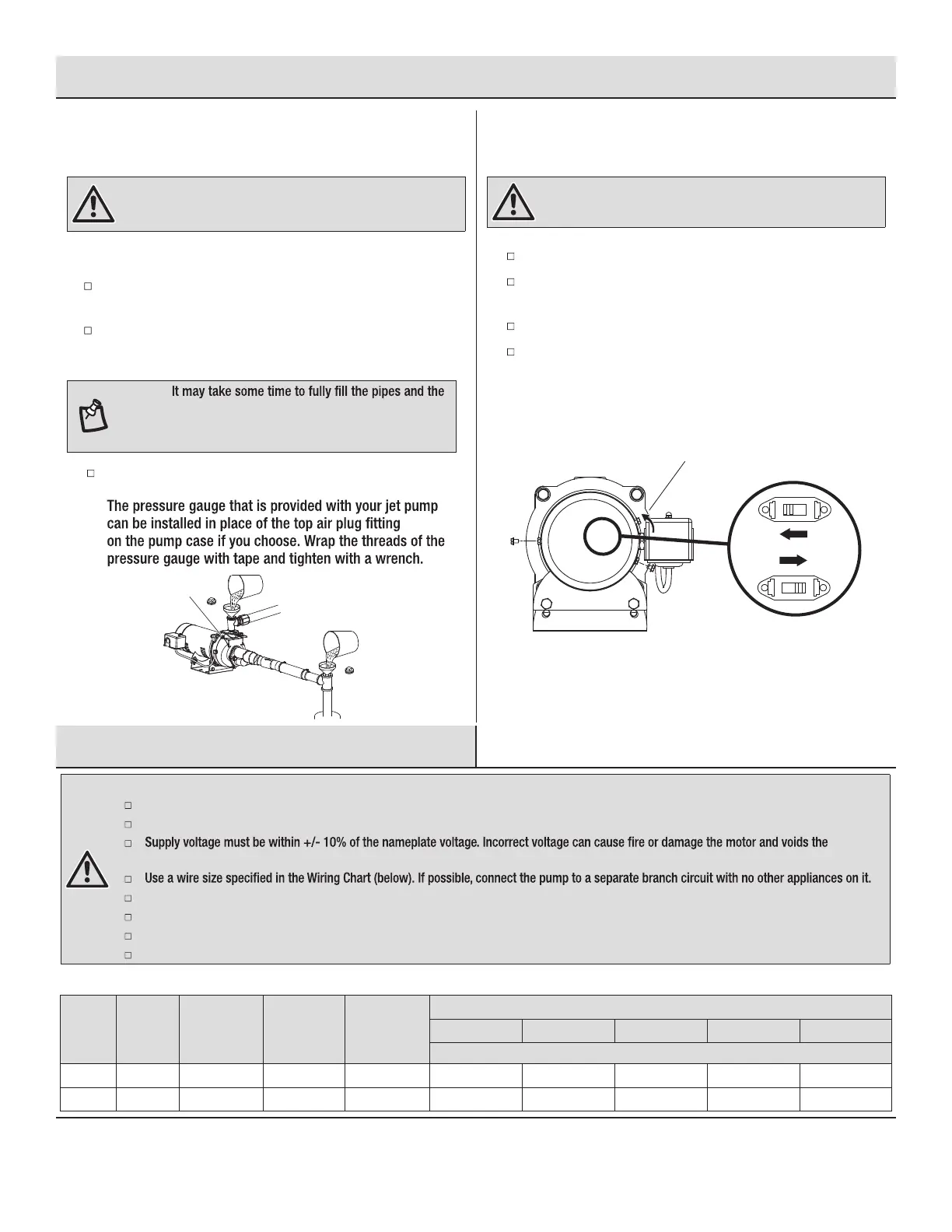

Shallow Well Installation (continued)
12
Priming the pump and rigid pipe
WARNING: If the pump’s level is lower than the suction
pipe, the air may trap in the pipe. The pump may not work
properly.
To prime, remove both:
The two plugs from the top of the two tees (water will be
filled in here), and;
The air plug in front of the discharge tee (this is to allow air
to vent out while priming). Fill the two tees with water
until water overfows.
NOTE:
pump completely. Keep watching the discharge tee water
level and make sure the water level is stable and no air
bubbles come out from the discharge tee.
Wrap the two tee plugs and air plug threads with thread
tape and re-attach to the pump. Tighten with a wrench.
Air
Plug
13
Voltage setting
WARNING: All electrical work should be performed by a
licensed electrician.
This pump is pre-wired at 230V.
If the power source is 115V, remove the electrical housing
cover.
Flip the switch to 115V. Replace the cover.
Proceed to the wiring connections
section below.
Electrical Housing Cover
115
230
Wiring Connections
WARNING: Risk of electric shock. Can shock, burn, or kill.
To avoid dangerous or fatal electrical shock, turn OFF power to the motor before working on electrical connections.
Ground the motor before connecting to electrical power supply. Failure to ground the motor can cause severe or fatal electrical shock hazard.
warranty. If in doubt consult a licensed electrician.
Do not ground to a gas supply line.
Set the motor according to the diagram on the motor cover plate.
If the diagram on the motor cover plate differs from the diagrams in this section, follow the diagram on the motor cover plate.
If this procedure or the wiring diagrams are confusing, consult a licensed electrician.
RECOMMENDED WIRE AND FUSE SIZES FOR 115 AND 230 VOLTS
MOTOR
HP
VOLTS MAX. LOAD
AMP
BRANCH
FUSE
RATING
AMP
AWG MIN.
WIRE
SIZE (mm²)
DISTANCE IN FEET FROM MOTOR TO SUPPLY
0-50 50-100 100-150 150-200 200-300
AWG WIRE SIZE (mm²)
1 115 16 30 10 (5.5) 10 (5.5) 8 (8.4) 8 (8.4) 6 (14)10 (5.5)
1 230 8 15 14 (2) 14 (2) 12 (3) 12 (3) 10 (5.5)14 (2)
