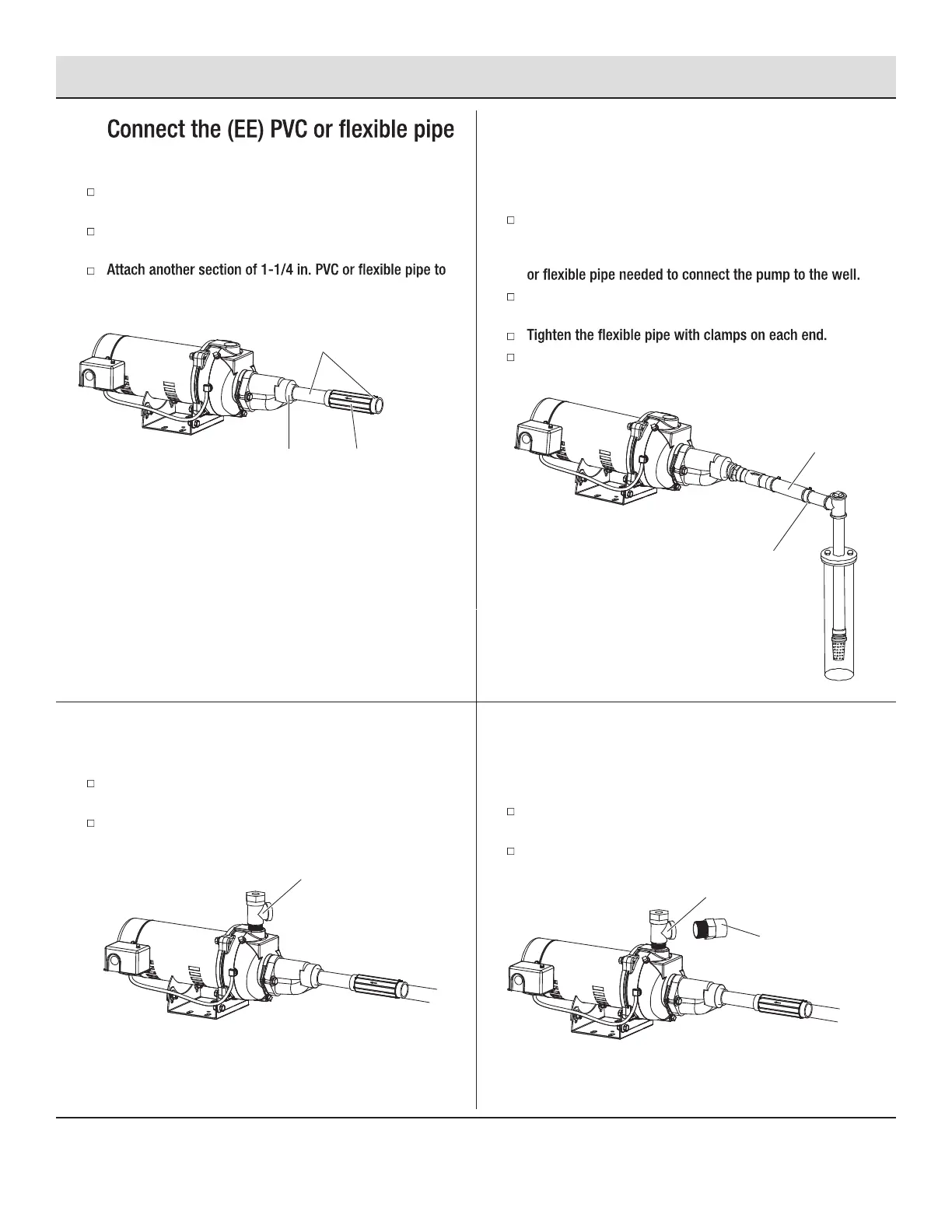

Shallow Well Installation (continued)
5
to the pump inlet
Position the pump as close to the well as possible. Connect
a section of 1-1/4 in. PVC or Flexible pipe to the pump inlet.
Attach a (JJ) 1-1/4 in. check valve (sold separately) to the
other end of the PVC or Flexible pipe.
the other end of the check valve.
(EE) PVC
(PP) 1-1/4 in.
Male Adapter
(JJ) Check Valve
6
Connecting the PVC pipe from the
pump to the PVC pipe coming from
the well
Measure the distance from the PVC pipe extended from the
check valve off the pump to the PVC pipe extending from
the priming tee from the well. This will be the length of PVC
Using (II) Flexible PVC couplings, connect both ends of the
PVC pipe to the pump and well end.
Ensure that the PVC or Flexible pipe slopes slightly downward
toward the well to prevent air trapping in the pipe.
7
Connecting a (KK) 1 in. discharge tee
(sold separately) to the pump outlet
Wrap thread tape around threads of a 1 in. discharge tee
(sold separately).
Using a pipe wrench, thread the 1 in. discharge tee into the
discharge hole on the top of the pump.
(KK) 1 in. Discharge Tee
8
Connecting a (LL) 1 in. male PVC
adaptor to the discharge tee on the
pump outlet
Wrap thread tape around the threads of a 1 in.
male PVC adapter (sold separately).
Thread the adapter into the discharge tee.
(KK) 1 in. Discharge Tee
(LL) 1 in. Male
PVC Adapter
(II) Flexible
Couplings
(EE) PVC or Flexible Pipe to Connect
Pump Piping to Well Piping
To Next Page
