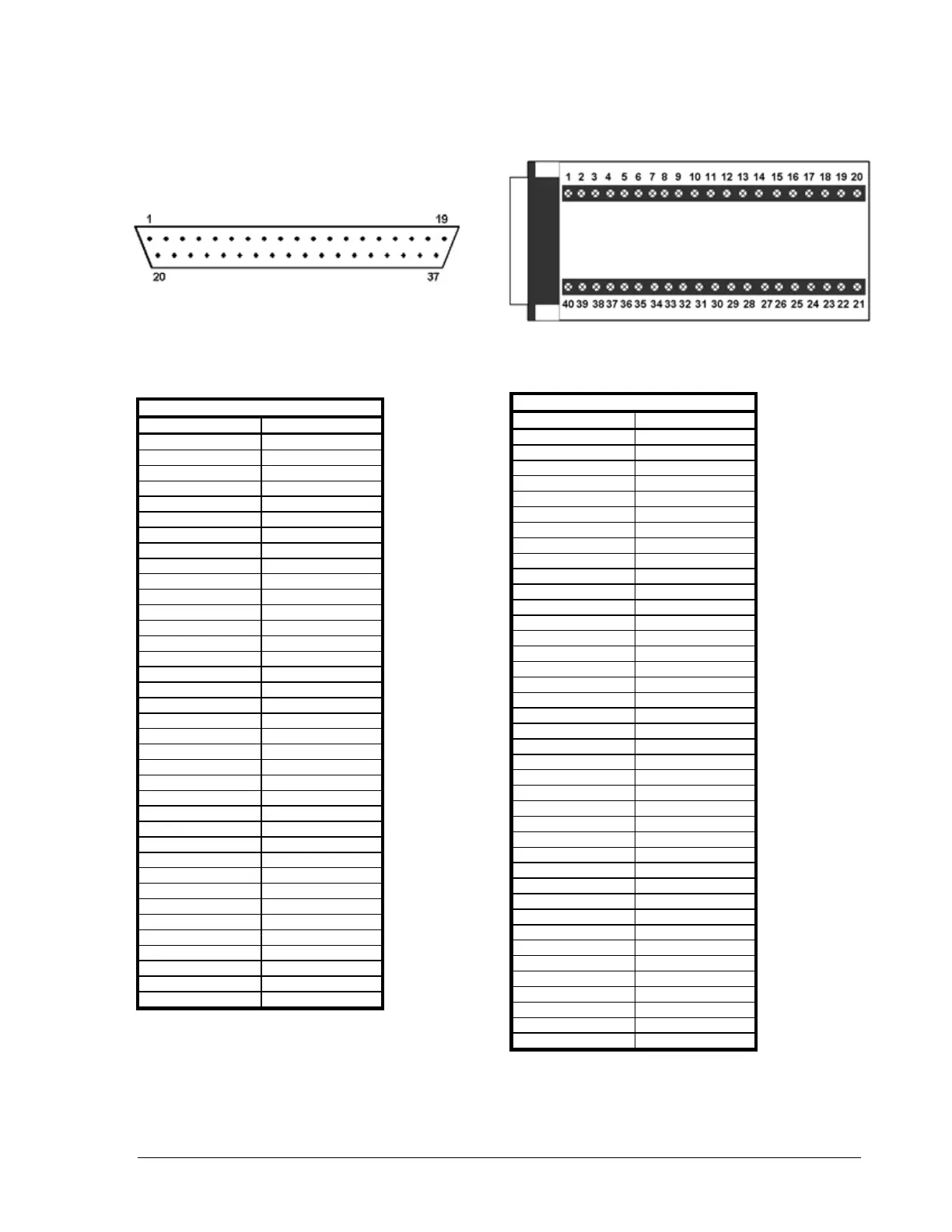

EDVR16D3 model:
<Figure 1>
D-SUB 25 pin female connector (DVR)
<Figure 2>
P164D00100 Alarm extension board (HOST)
DVR
PIN # NAME
1 GND
2 ALMIN 1
3 ALMIN 2
4 ALMIN 3
5 ALMIN 4
6 ALMIN 5
7 ALMIN 6
8 ALMIN 7
9 ALMIN 8
10 ALMIN 9
11 ALMIN 10
12 ALMIN 11
13 ALMIN 12
14 ALMIN 13
15 ALMIN 14
16 ALMIN 15
17 ALMIN 16
18 GND
19 GND
20 ALM_NC1
21 ALM_NO1
22 ALM_COM1
23 ALM_NC2
24 ALM_NO2
25 ALM_COM2
26 ALM_NC3
27 ALM_NO3
28 ALM_COM3
29 ALM_NC4
30 ALM_NO4
31 ALM_COM4
32 ALMRST
33 REC_IN
34 SPARE_IN
35 DISK_FULL
36 SPARE_OUT
37 GND
HOST
PIN # NAME
1 GND
2 ALMIN 1
3 ALMIN 2
4 ALMIN 3
5 ALMIN 4
6 ALMIN 5
7 GND
8 ALMIN 6
9 ALMIN 7
10 ALMIN 8
11 ALMIN 9
12 ALMIN 10
13 GND
14 ALMIN 11
15 ALMIN 12
16 ALMIN 13
17 ALMIN 14
18 ALMIN 15
19 ALMIN 16
20 GND
21 GND
22 ALM_NC1
23 ALM_NO1
24 ALM_COM1
25 ALM_NC2
26 ALM_NO2
27 ALM_COM2
28 GND
29 ALM_NC3
30 ALM_NO3
31 ALM_COM3
32 ALM_NC4
33 ALM_NO4
34 ALM_COM4
35 GND
36 ALMRST
37 REC_IN
38 SPARE_IN
39 DISK_FULL
40 SPARE_OUT
