3.11.2 HDD TEMP
In HDD TEMP, we define:

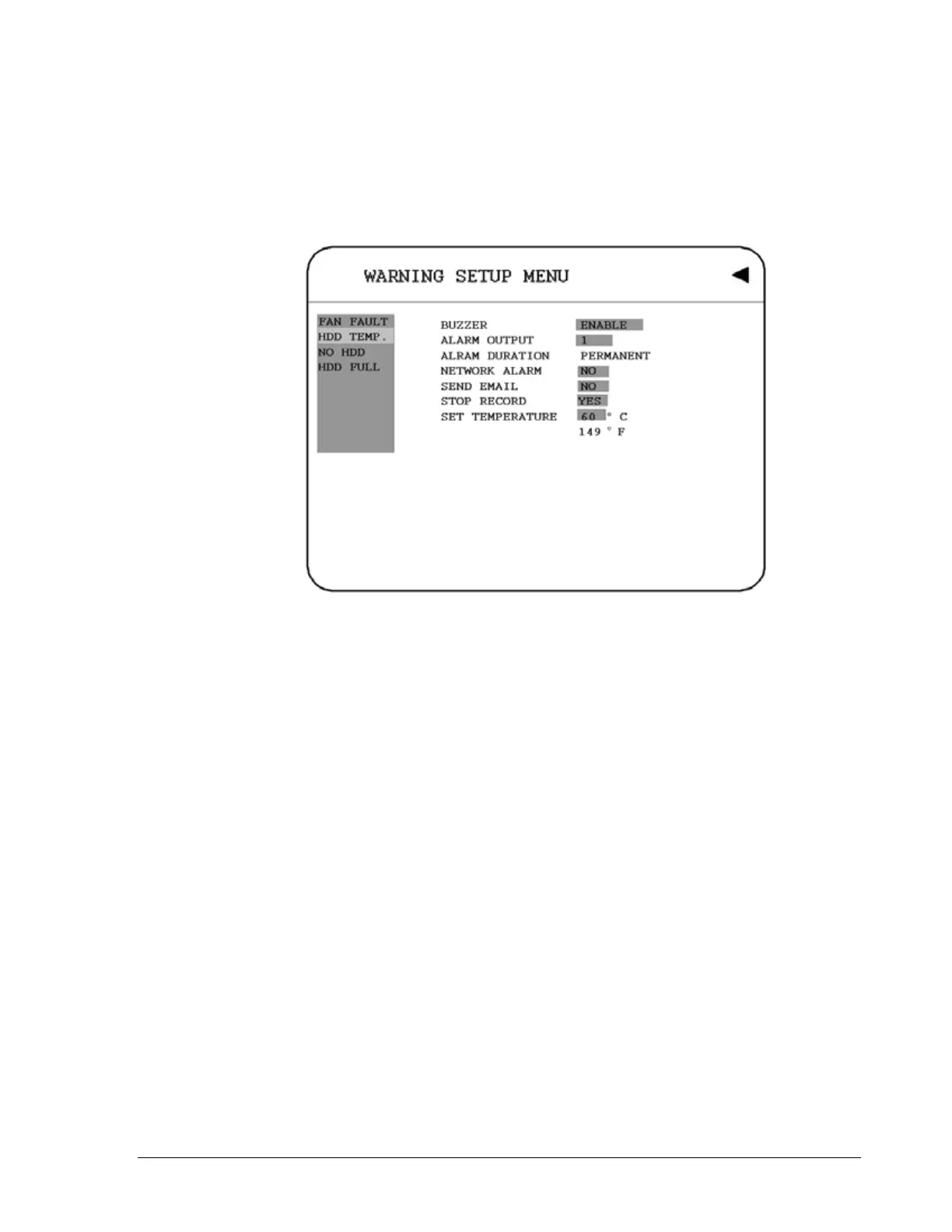

Diagram 3.21
1. BUZZER: HDD TEMPERATURE buzzer.
ENABLE: To enable a buzzer when HDD’s temperature is higher than the temperature
set in “SET TEMPERATURE”.
DISABLE: To disable HDD TEMP. Buzzer.
2. ALARM OUTPUT
This will transmit a signal to another device. The setting of alarms are NONE = not
activated, 1 = output signal 1 transmitted, 2 = output signal 2 transmitted, 3 =
output signal 3 transmitted and 4 = output signal 4 transmitted. To change this,
simply use the Jog Dial on the DVR. (Only EDVR16D3 model has 4 alarm outputs, all the
rest models have only 1 alarm output).
3. ALARM DURATION
Permanent
4. NETWORK ALARM
YES: To enable network alarm.
NO: To disable network alarm.
57
