Everglades 435 CC - Page 66

66
Electrical System
Nav LT
A three-position switch that activates the naviga-
tion and anchor lights. The middle position is OFF.
Moving the switch in one direction will activate
the navigation lights. Moving the switch in the
opposite direction activates the anchor light.
Fwd Bilge
Manually activates the forward bilge pump located
in the bilge below the cabin sole. The pump moves
water out a thru-hull tting in the hull. The pump
is also activated by an automatic switch that is
activated whenever the batteries are connected.
This pump will run as needed whenever the water
in the bilge accumulates high enough to cause the
switch to activate and turn off when the water is
removed.
Aft Bilge
Manually activates the aft bilge pump located
in the stern bilge near the transom. The pump
moves water out a thru-hull tting in the hull.
The pump is also activated by an automatic switch
that is activated whenever the batteries are con-
nected. This pump will run as needed whenever
the water in the bilge accumulates high enough
to cause the switch to activate and turn off when
the water is removed.
Aft Bilge 2
Manually activates the aft bilge pump located
in the stern bilge. The pump moves water out
a thru-hull tting in the hull. The pump is also
activated by an automatic switch that is activated
whenever the batteries are connected. This pump
will run as needed whenever the water in the bilge
accumulates high enough to cause the switch to
activate and turn off when the water is removed.
Notice:
The bilge pumps will start automatically when
there is sufcient water in the bilge to acti-
vate the automatic switch. Each automatic
switch is protected by a fuse located near
the battery switches and is always supplied
current when the batteries are connected.
Sump Pump
Overrides the automatic oat switch to manually
activate the sump pump system for the cabin sink
and head compartment shower drain system.
During normal operation the automatic oat switch
in the sump controls the pump.
Saltwater Pump
Activates the raw water system pump that sup-
plies the raw water washdown hose connector in
the cockpit. The pump is the pressure demand
type. A pressure switch automatically controls
the water pump when the system is activated and
properly primed.
Freshwater Pump
Activates the pump that supplies water pressure
for the fresh water system. The pump is the pres-
sure demand type. A pressure switch automati-
cally controls the water pump when the system
is activated and properly primed.
Livewell Pump
Activates the pump that supplies seawater to the
starboard livewell.
Recirc Pump
Activates the pump that recirculates the water in
the starboard livewell.
Livewell LT
Activates the light in the starboard livewell.

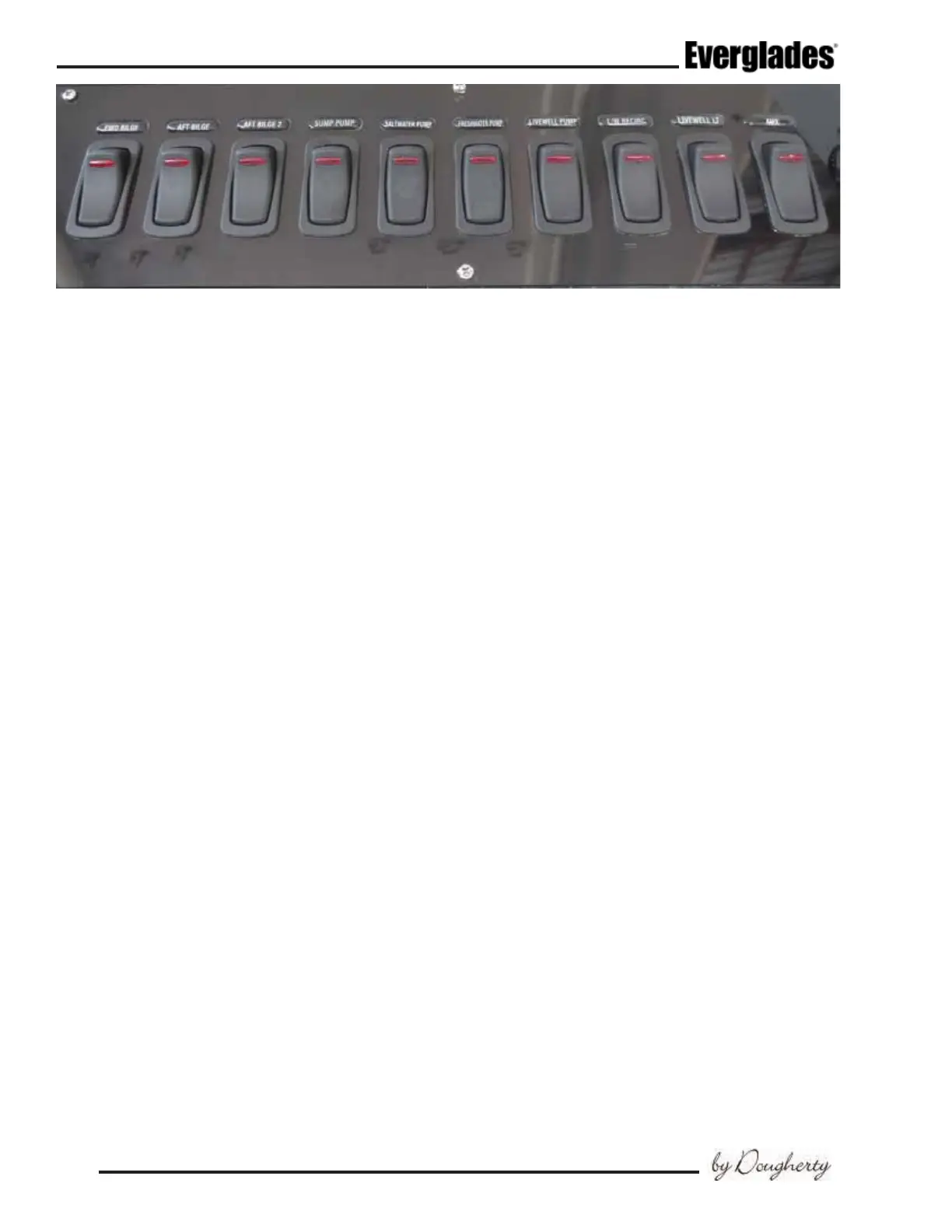

Starboard Helm Accessory Switch Panel
