67
Electrical System
AUX
Reserved for additional 12 volt accessories.
USB Charger
Provides electrical current for portable 12 volt
equipment on the starboard side of the helm.
Hardtop Switch Panels
These accessory switch panels are located above
the helm in the hardtop. The circuit breakers
that protect the accessories are located in DC
breaker panel in the cabin. LED lights built into
the switches indicate the circuit is activated.
The following is a description of the acces-
sories controlled by the accessory switch
panels in the hardtop:
AUX
Reserved for additional 12 volt accessories.
AUX
Reserved for additional 12 volt accessories.
Dash LTS
Activates the red LED lights above the helm area.
W/S UP/DN
A momentary, three-position switch that activates
the hydraulic rams that raise and lower the wind-
shield to provide ventilation for the helm area
and/or improve visibility. The center position is
OFF. Move the switch in one direction to lower the
windshield. Move the switch in the opposite direc-
tion to raise the windshield. The switch returns
to the OFF position when it is released.
Horn
A momentary switch that activates the boat air
horn located on the hardtop.
Anchor
This switch controls the windlass which is mounted
in the compartment above the rope locker. It is
protected by a circuit breaker of the type and rat-
ing recommended by the windlass manufacturer
that is located near the battery switches.
The switch is a three-position switch. The center
position is OFF. Moving the switch in one direction
will pay the anchor line out. Moving the switch
in the opposite direction will pull the anchor line
in. The switch returns to the OFF position when
it is released.
Flood FWD
Activates the overhead lights at the front of the
hardtop that illuminate the forward cockpit.
Flood AFT
Activates the overhead lights at the rear of the
hardtop that illuminate the aft cockpit.
Aux
Reserved for additional 12 volt accessories.
Sunshade (Optional)
A momentary, three-position switch that acti-
vates the actuators that extend and retract the
Sunshade on the rear of the hardtop. The center
position is OFF. Move the switch in one direction
to extend the Sunshade. Move the switch in the
opposite direction to retract the Sunshade. The
switch returns to the OFF position when it is re-
leased.

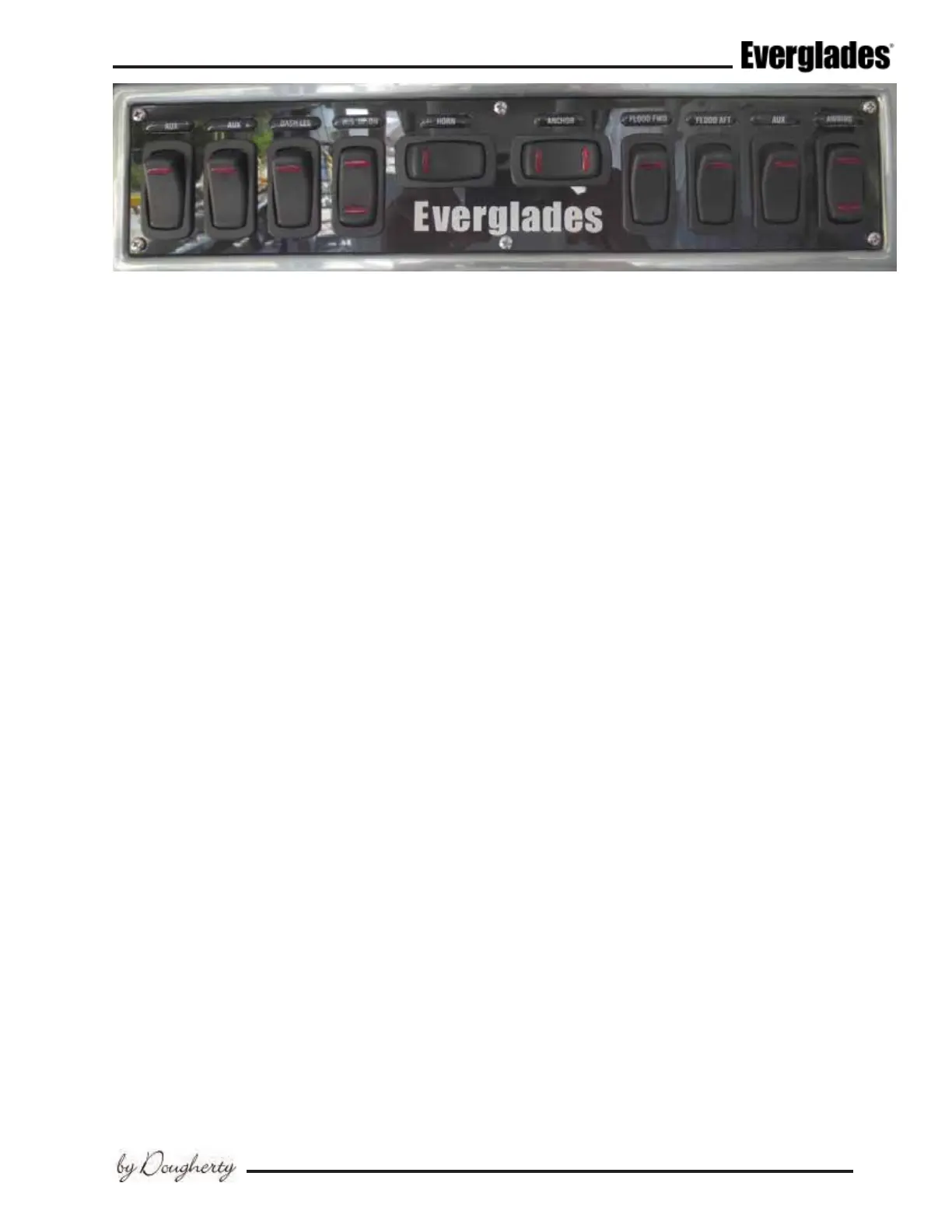

Hardtop Accessory Switch Panel
