68
Electrical System
Additional 12 Volt Switches
Trim Tab Switches
Located in the helm. This switch controls the trim
tab planes located on the transom of the boat. It
is protected by a circuit breaker in the cabin DC
panel. Please refer to the Helm Control Systems
chapter for detailed information on the operation
of the trim tab controls.
Engine Trim and Tilt Switches
Located in the helm. These switches are typi-
cally installed in the engine throttle and shift
controls. They control the trimming and tilting
of the engines. Please refer to the Helm Control
Systems chapter and the engine owner’s manual
for information regarding the proper use of the
tilt and trim switches.
Spot Light
Located in the helm. Controls the spot light that
is mounted on the hardtop. It is protected by a
fuse located in the accessory fuse panel behind
the helm. Refer to the spot light owner’s manual
for details on operating the control pad.
Bow Thruster (Optional)
The bow thruster switch panel controls the bow
thruster when this option is installed. Refer to the
Control Systems Chapter and the Bow Thruster
owner’s manual for additional information on the
bow thruster.
Wiper Control
Located in the hardtop switch panel. This panel
provides complete control of the windshield wip-
ers and washers. Buttons on the panel control
intermittent and continuous wiper speed. Other
buttons activate the windshield washer on each
wiper blade and turn the panel ON or OFF.
Notice:
The fresh water system must be activated
for the windshield washers to work.
Table (Optional)
A three position momentary switch that raises and
lowers the table pedestal located on the starboard
side of the cockpit, forward of the console lounge.
The center position is OFF. Press the top of the
switch to raise the table, press the bottom of the
switch to lower it. The pedestal will stop imme-
diately when the switch is released or when the
table pedestal reaches full up or down position.
It is protected by a circuit breaker in the cabin
DC panel.

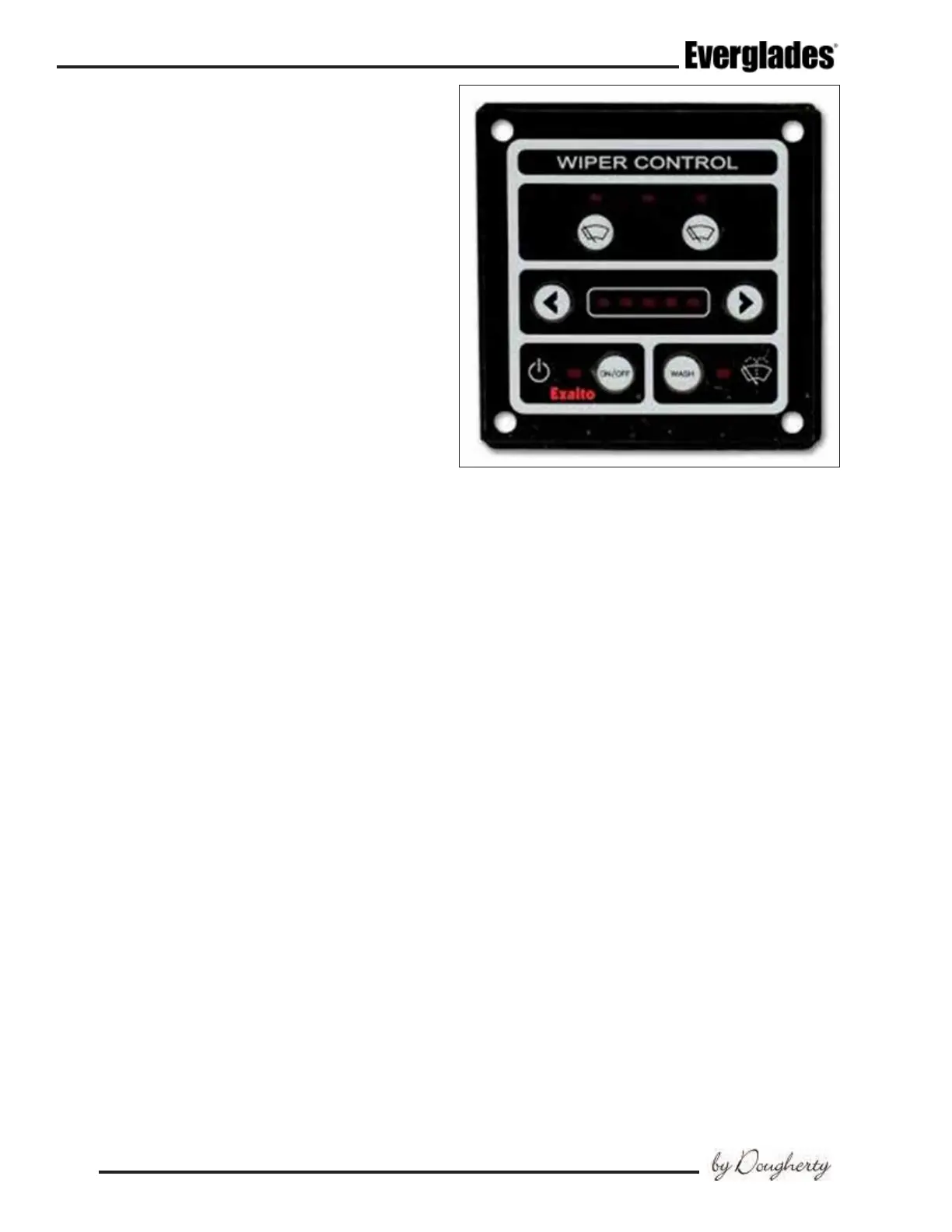

Wiper Control Switch Panel
Power Ports
A 12 volt power port is located below the gunnel on
each side of the cockpit. The power ports provide
a 12 volt DC power connection for downriggers or
electric reels. Each power port requires a special
twist lock plug to be installed on the power cord
of the accessory. One plug for each port was
included with your boat. Additional plugs can be
ordered through your dealer.
The power ports are protected by circuit break-
ers located above the batteries in the electrical
systems compartment below the work station.
Waste Discharge Switch
A key activated momentary switch located in the
head compartment that controls the overboard
discharge pump system for the holding tank and
marine head system. Monitor the waste level in
the tank while pumping and turn the waste dis-
charge switch OFF immediately when pumping is
complete.
The key must be removed from the switch when-
ever the discharge pump is not being operated.
