Electrical System
Main Circuit Breakers
DC Power is distributed to the cabin DC breaker
panel, accessory fuse panels, electronics, and
other main circuits through heavy duty circuit
breakers located in the electrical systems
compartment below the work station. Most of
these main circuits are deactivated when the
Engine and House battery switches are OFF. The
main circuit breaker that protects the continuous
power circuits is always active when the battery
switches are off and the house batteries are
connected.
If a circuit breaker is tripped by an overload, a
black and yellow lever will be exposed near the
center of the breaker. Reset the breaker by rotat-
ing the lever until it locks in the vertical position.
Notice:
If a main circuit breaker trips, always make
sure the problem that caused the breaker to
trip is found and corrected before resetting
the breaker.
The following are the main circuits supplied
and protected by heavy duty circuit breakers:
DC Main Power In
Protects the circuit from the house batteries to the
main buss bar that supplies 12 volt DC current to
all boat accessory circuits. This circuit is activated
when the House battery switch is on.
DC Main
Protects the circuit that supplies 12 volt current to
the helm cabin DC breaker Panel. This circuit is
deactivated when the House battery switch is off.
Windlass
Protects the circuit that supplies 12 volt current
to the windlass main circuit. This circuit is deac-
tivated when the House battery switch is off.
Port Pwr Port
Protects the circuit that supplies 12 volt current
to the power port on the port side of the cockpit.
This circuit is deactivated when the House battery
switch is off.
Port Pwr Starboard
Protects the circuit that supplies 12 volt current
to the power port on the starboard side of the
cockpit. This circuit is deactivated when the House
battery switch is off.
Electronics 1, 2 & 3
Protects the main circuits that supply 12 volt cur-
rent to the electronics in the helm. These circuits
are deactivated when the House battery switch
is off.
Amp P
Stereo amplier.
Amp S
Stereo amplier.
Main Fuses
Power is distributed to the Yamaha Helm Master
Control System through individual heavy duty
blade type fuses located in the electrical systems
compartment, if your boat is equipped with this
optional control system. Other optional engine
control systems could also be protected by heavy
duty fuses. Refer to the engine owner’s manual
for information on circuit protection and amper-
age requirements for the engines and controls on
your boat.

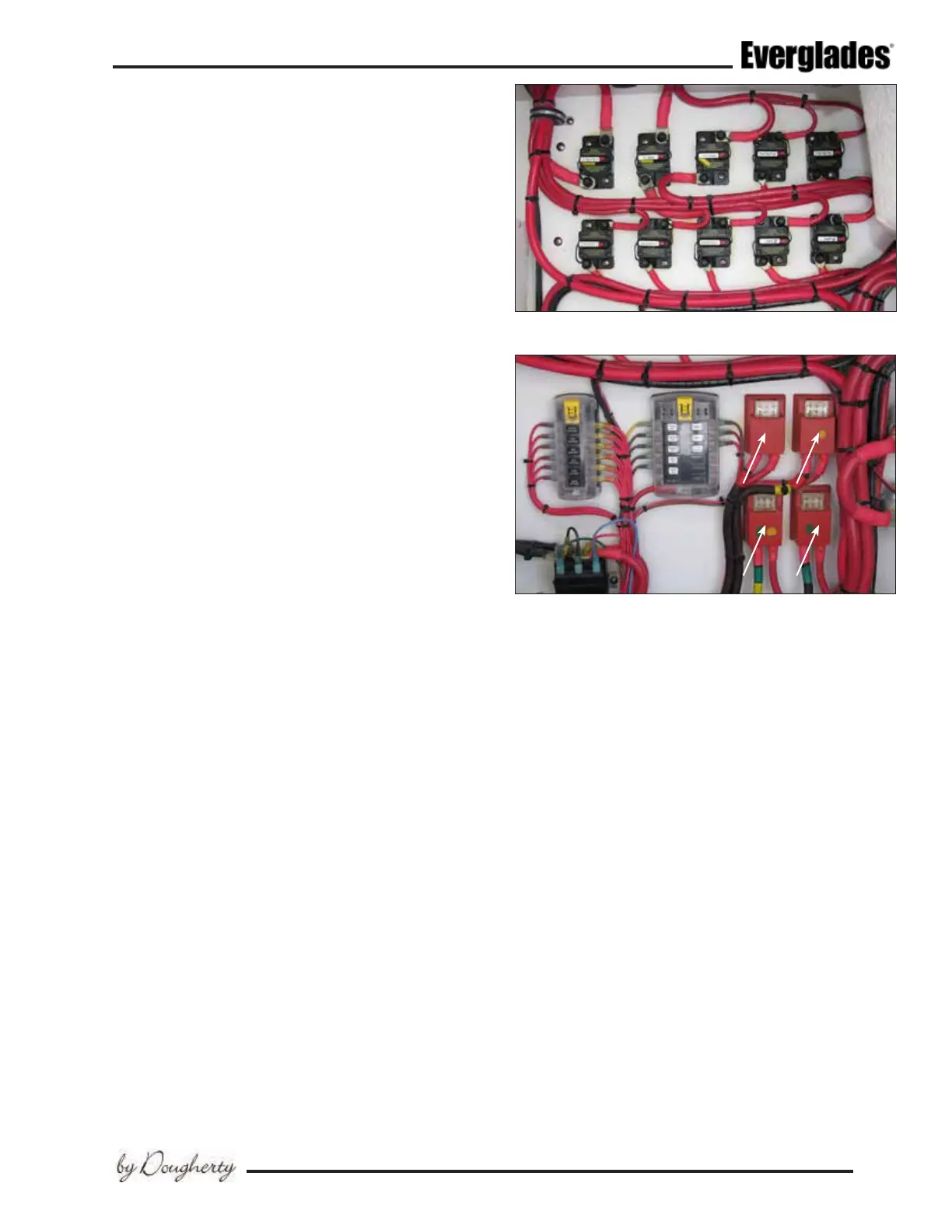

Heavy Duty Main Circuit Breakers
Typical Helm Master Heavy Duty Main Fuses
