Evinrude E-TEC E150DSLSCR User Manual

157
ELECTRICAL AND IGNITION
ELECTRIC STARTER SERVICING
7

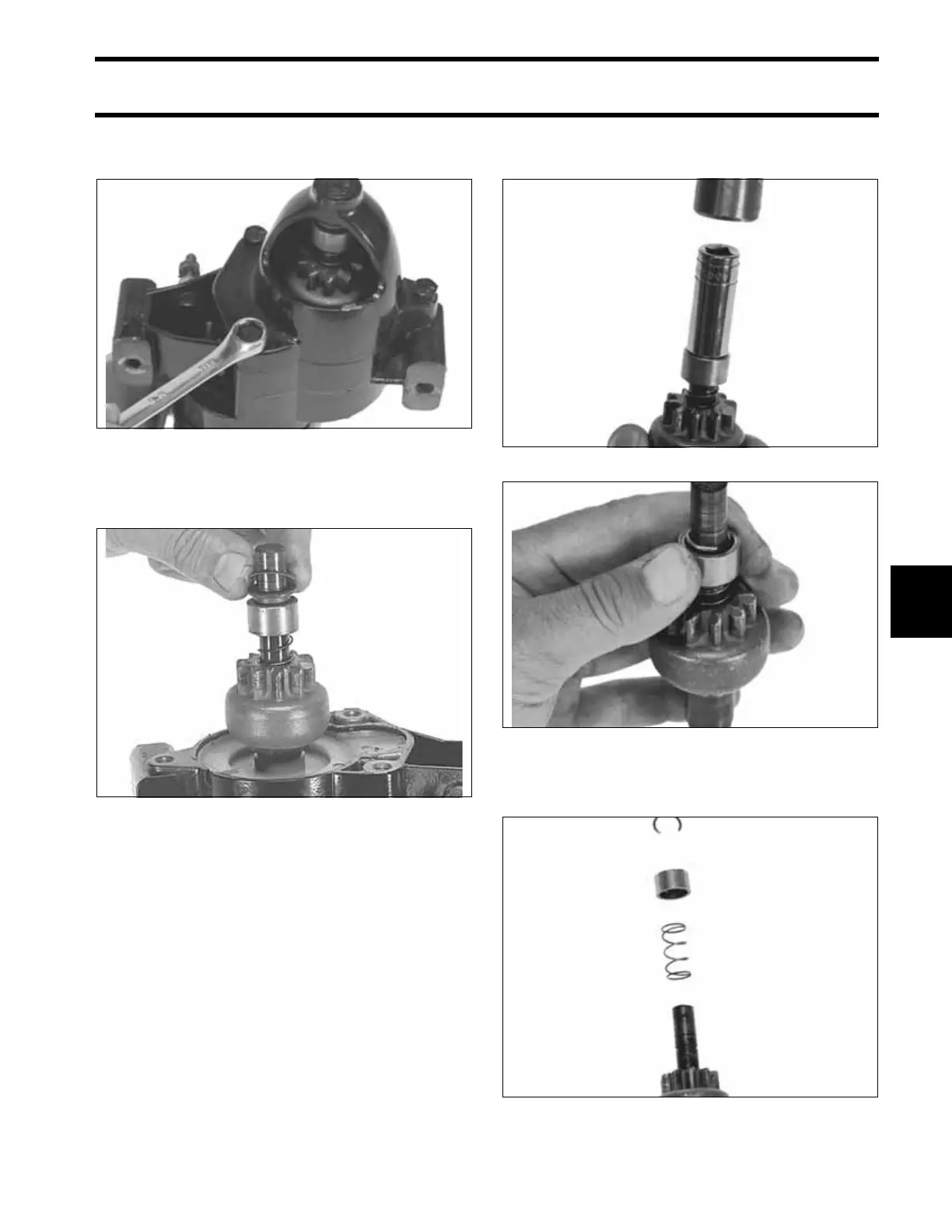

Remove the screws, lock washers, and pinion
housing.
Starter Disassembly
Lift and remove the wave washer and bushing.
Place an appropriate-sized deep socket on the
spacer.
Hit the socket with a mallet to lower the spacer
and expose the retaining ring under the spacer.
Remove the retaining ring, spacer, and spring
from pinion shaft.
30373
30372
30371
30360
30369

Evinrude E-TEC E150DSLSCR Specifications

General

Horsepower	150 HP
Starting	Electric
Recommended Fuel	87 Octane
Oil Type	Evinrude XD100
Full Throttle RPM Range	5000-6000 RPM
Exhaust	Through Prop
Cooling System	Water-cooled
Fuel Induction	Direct Injection
Shaft Length	20 in
Oil Requirement	XD100 oil
