374
TRIM AND TILT
TRIM AND TILT SERVICE
Trim Sender Test
IMPORTANT: To avoid immediate meter dam-
age, never apply a multimeter to an electrical cir-
cuit where voltage is present.

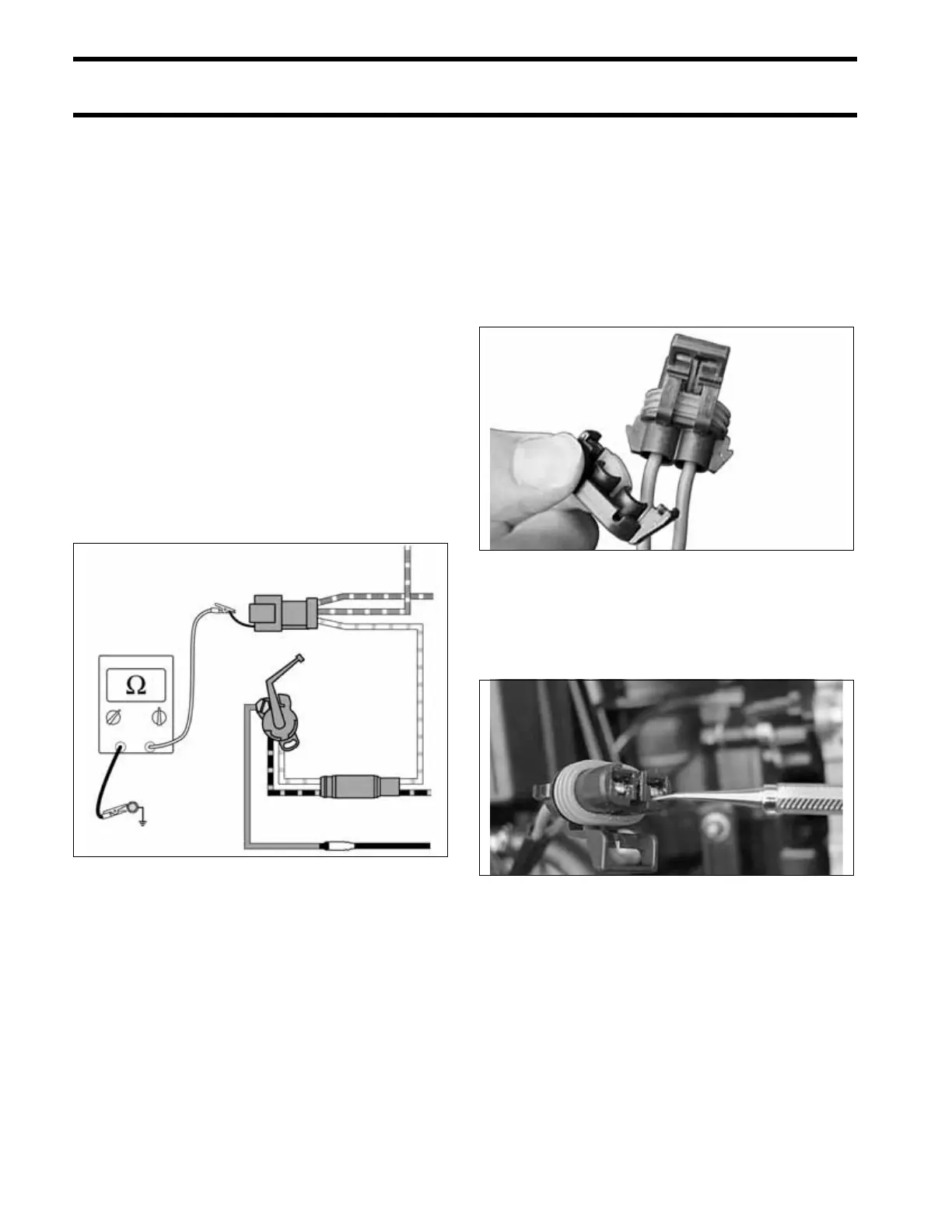

Disconnect the 3-pin Deutsch connector between
the instrument harness and engine trim harness.
Connect an ohmmeter between the white/tan
wire, terminal “C,” of the engine harness and a
clean engine ground.
With the outboard fully DOWN, meter must show
a reading above 80 Ω.
With the outboard fully UP, meter must show a
reading below 10 Ω.
• If results agree, refer to Trim Gauge Test on
p. 373.
• If results are different, replace trim sender.
TRIM AND TILT SERVICE
Removal
Remove lower engine cover and disconnect the
trim/tilt connectors. Refer to LOWER COVER
SERVICE on p. 91.
Remove the rubber grommet from the blue/green
trim/tilt cable connector.
Remove the terminals from the connector by
using a suitable tool to depress the tab. While the
tab is depressed, pull on the wire from the rear of
the connector to release it from the connector.
DRC6247
000686
000687
To Next Page
