Evinrude E-TEC E150DSLSCR User Manual

OILING SYSTEM

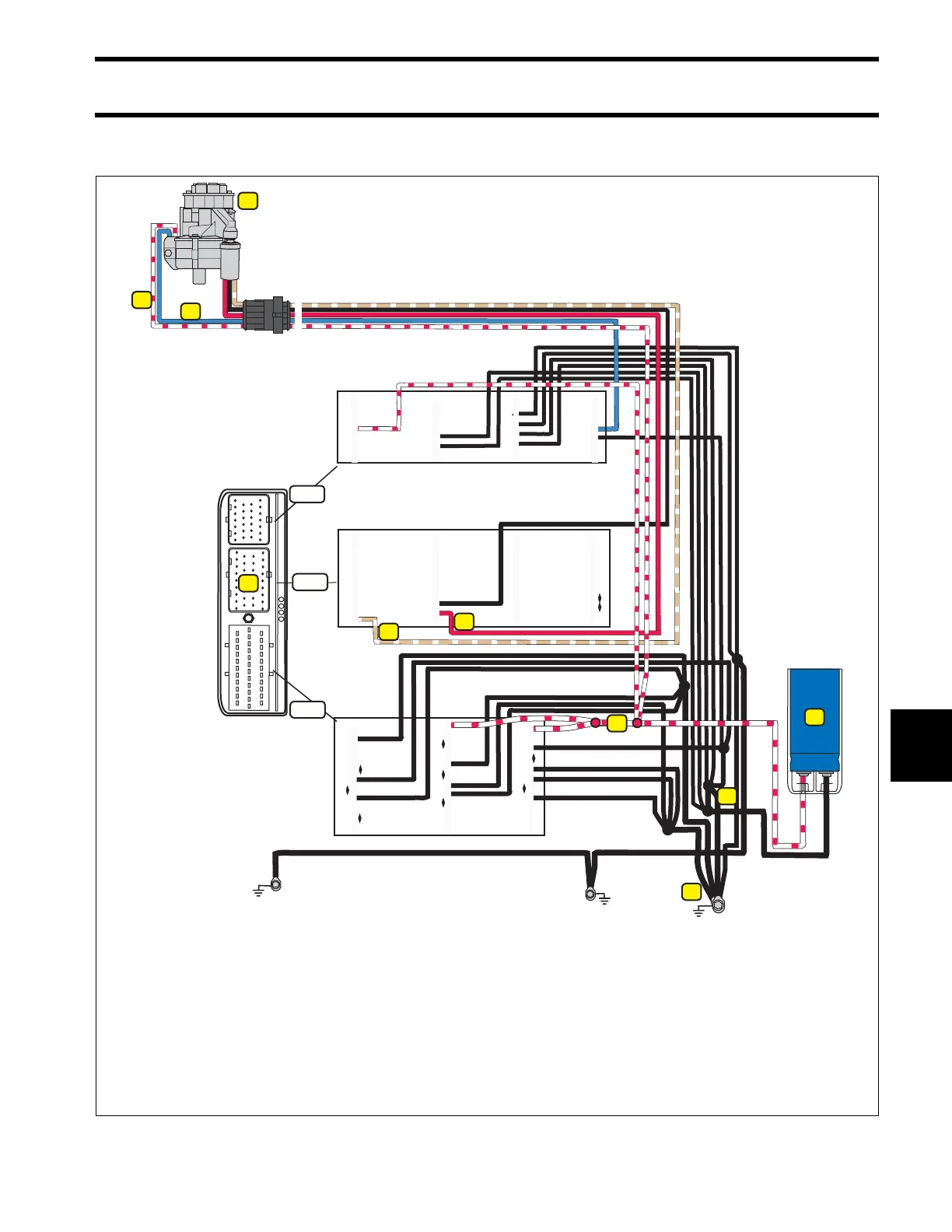

OILING SYSTEM CIRCUIT DIAGRAM
195
9
OILING SYSTEM CIRCUIT DIAGRAM
1.
2.
3.
4.
5.
6.
7.
8.
Oil Injection Pump
EMM
55 V Circuit (WHITE/RED)
Grounds, NEG (BLACK)
EMM to Oil Solenoid (BLUE)
Oil Pressure Sensor, +5 V analog (RED)
Oil Pressure Sensor Signal (TAN/WHITE)
Capacitor
18 19 20 21 22 23 24 25
10 11 12 13 14 15 16 17
20 21 22 23 24 25 26 27 28 29
11 12 13 14 15 16 17 18 19
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9
1
4
8
20 21 22 23 24 25 26
26 27 28 29 30 31 32 33 34
J2
J1-B
J1-A
1
2
3
4
5
2
1 2 3 4 5 6 7
8 9 10 11 12 13
14 15 16 17 18 19
3
5
6
4
3
7
005358

Evinrude E-TEC E150DSLSCR Specifications

General

Horsepower	150 HP
Starting	Electric
Recommended Fuel	87 Octane
Oil Type	Evinrude XD100
Full Throttle RPM Range	5000-6000 RPM
Exhaust	Through Prop
Cooling System	Water-cooled
Fuel Induction	Direct Injection
Shaft Length	20 in
Oil Requirement	XD100 oil
