160
ELECTRICAL AND IGNITION

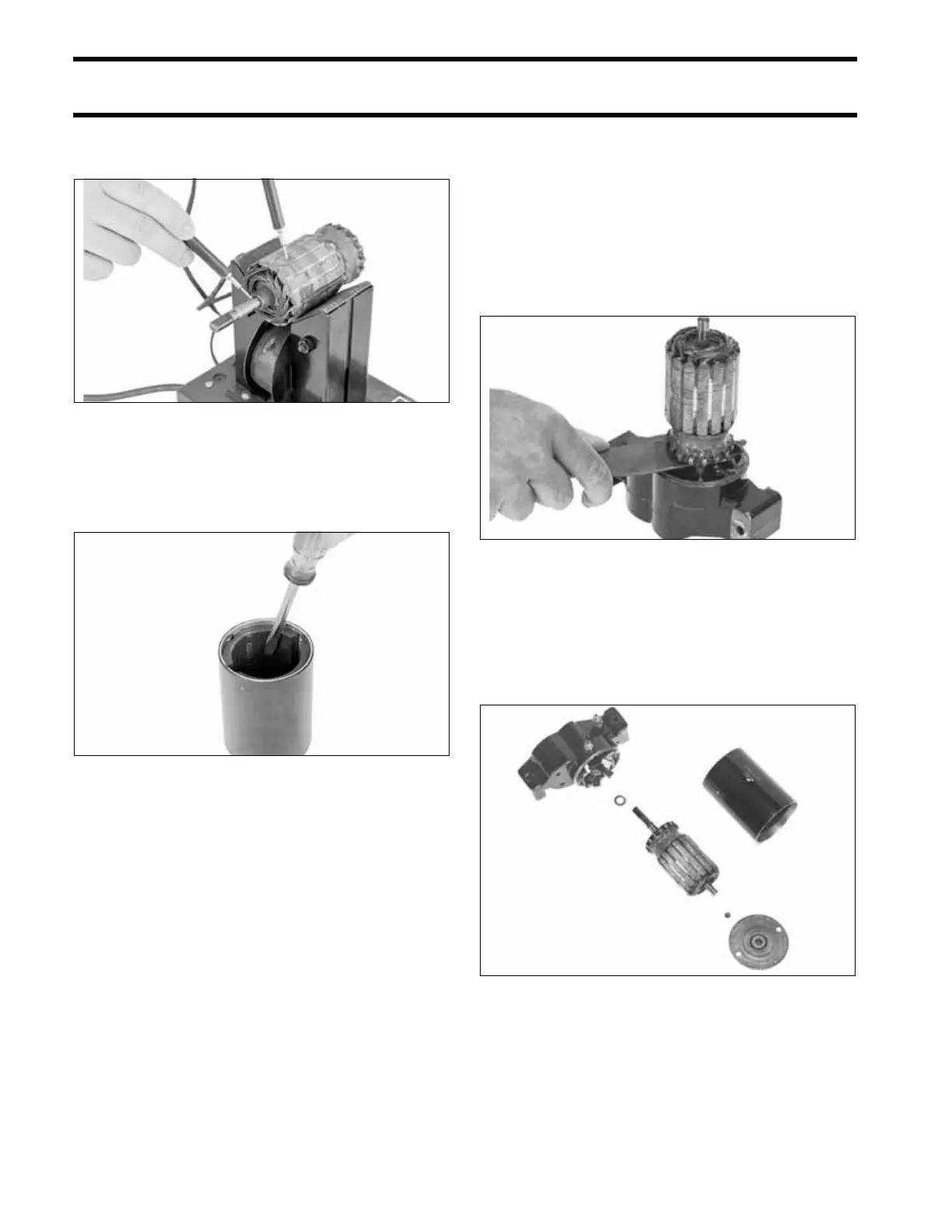

ELECTRIC STARTER SERVICING
matter which could contribute to failure of wind-
ings.
Check permanent magnets. Make sure they
strongly attract any steel or iron object held inside
frame. Weak magnetism could cause excessive
RPM on No Load Current Draw Test on p. 142.
After disassembling the drive, clean each part with
Cleaning Solvent and inspect for wear and distor-
tion.
If the pinion does not properly engage the fly-
wheel, the pinion and screw shaft assembly could
be worn, distorted, or dirty. Locate the cause of
binding and correct it before completing the
assembly.
Inspect and replace end cap thrust washer if dis-
torted or worn excessively.
Inspect and replace armature shaft snap ring if
worn or distorted.
Starter Assembly
IMPORTANT: If removed, apply Locquic Primer
and Screw Lock to the brush card screws before
installing.
Route the brush leads and install the springs and
brushes. Compress the spring with a modified
putty knife.
IMPORTANT: Incorrect orientation of the
brushes could damage the starter or cause
reverse rotation.
Apply Moly Lube to the armature bushing. Install
the thrust washer and armature.
TYPICAL 24058
TYPICAL 24057
30364
30351
