162
ELECTRICAL AND IGNITION

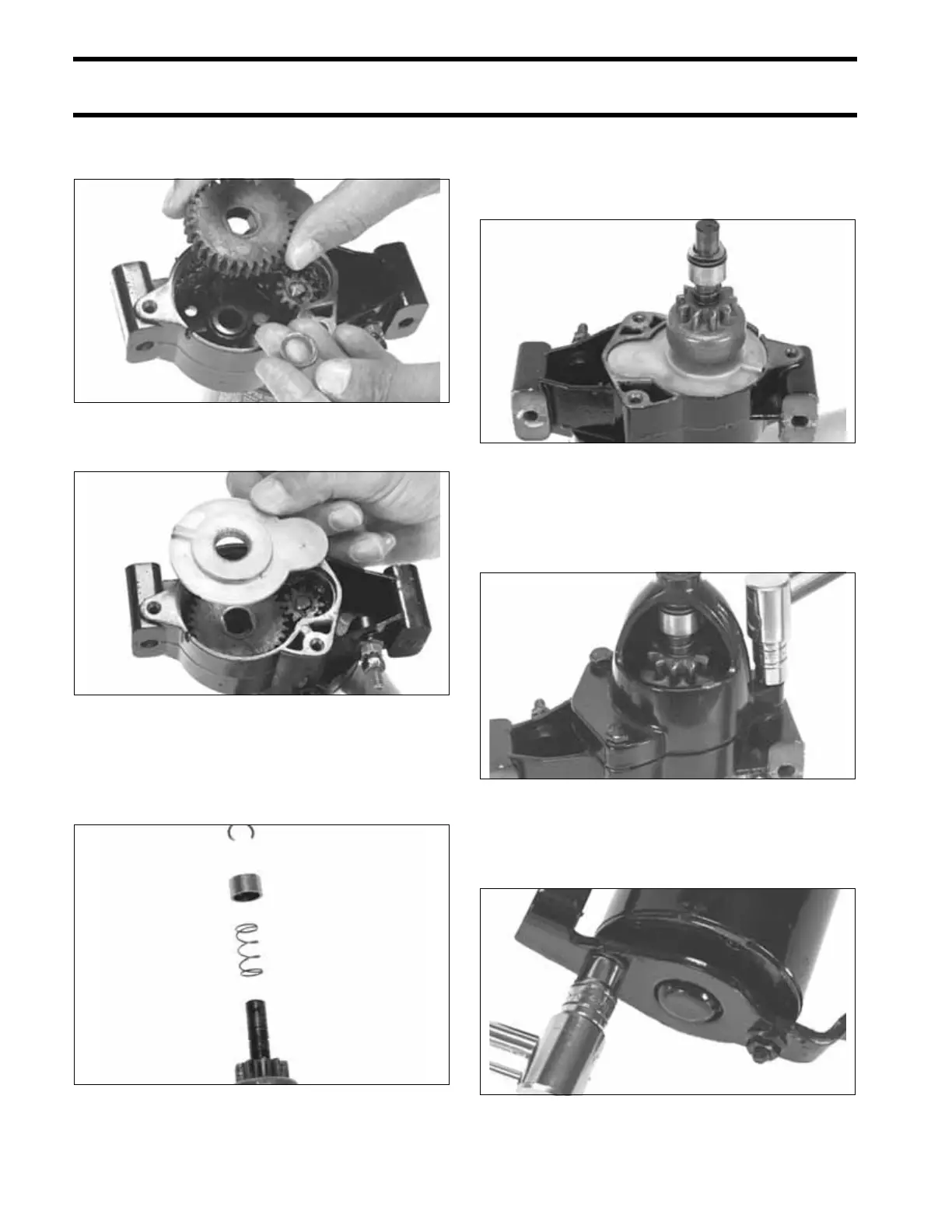

ELECTRIC STARTER SERVICING
Guard grease. Install the thrust washer and driven
gear.
Install the weather cover.
If removed, install the spring and spacer (large
diameter up) on the pinion shaft. Secure with
retaining ring. Install bushing and wave washer
(convex side down).
Lightly coat the pinion shaft splines (helix) with
Starter Bendix Lube. Lower the pinion into place
without displacing the driven gear or thrust
washer.
Lightly coat the pinion housing bearing with
Starter Bendix Lube, and install the pinion housing
screws and lock washers. Tighten the screws to a
torque of 60 to 84 in. lbs. (7 to 9.5 N·m).
Install the bracket. Apply Nut Lock to the thru-
bolts. Install the nuts and tighten to a torque of 50
to 65 in. lbs. (5.6 to 7.3 N·m).
30362
30361
30369
30359
30358
30357
