TRIM AND TILT
TRIM AND TILT SERVICE

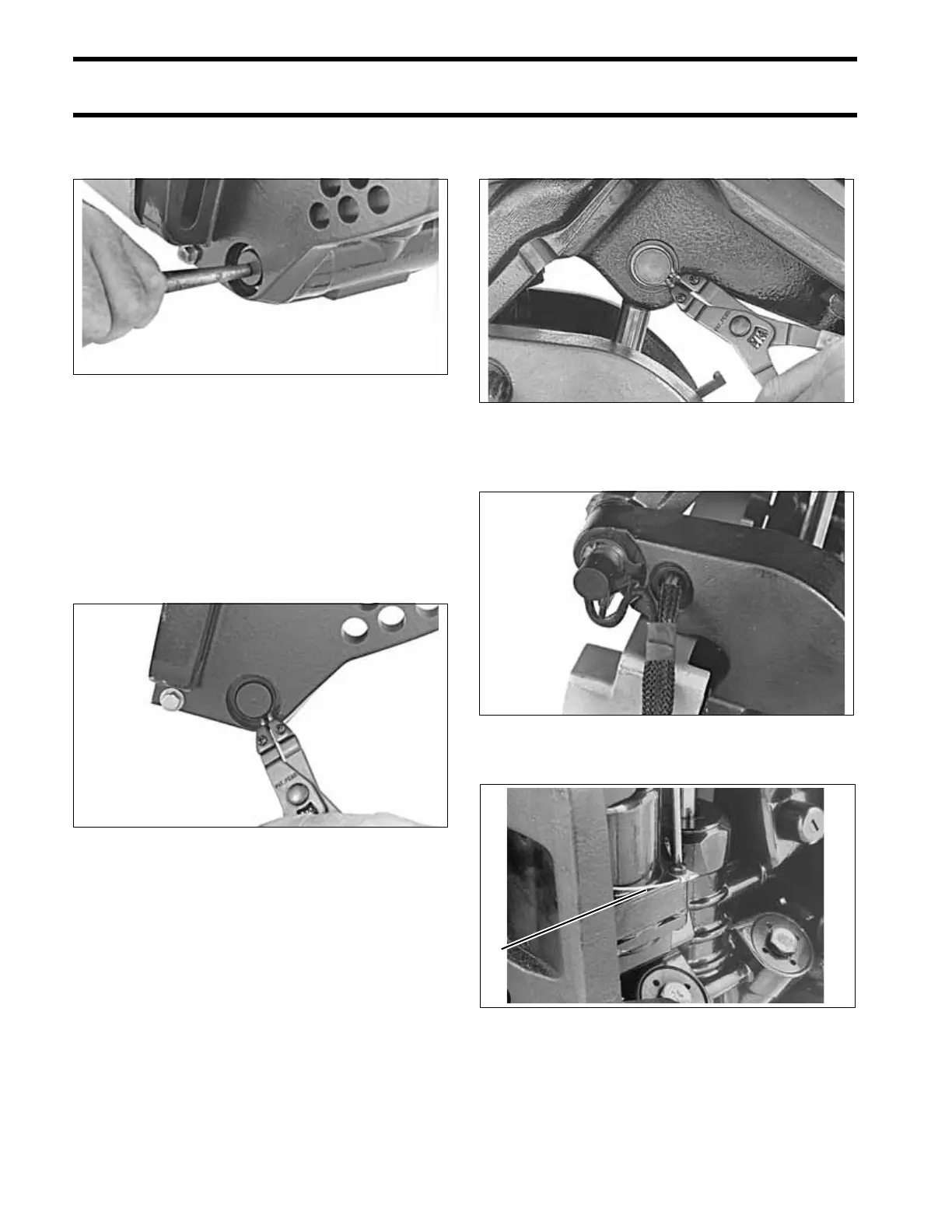

Use a punch to remove the lower pin and remove
the trim/tilt unit from the stern brackets.
Installation
Place trim/tilt unit into position. Apply Triple-Guard
grease to the lower pin and install the pin.
If loosened, tighten the tilt tube nut to a torque of
45 to 50 ft. lbs. (61 to 68 N·m).
Install external snap rings on lower pin with sharp
edge of ring facing out.
Extend tilt cylinder rod to match with holes in
swivel bracket.
Apply Triple-Guard grease to upper pin and install
the pin.
Install external snap rings onto upper pin with
sharp edge facing out.
Place trim/tilt wires in braided tube and install
through hole in the stern bracket.
Attach the ground wire to the trim/tilt unit.
25076
25077
25064
25079
1. Ground wire 25057
