42
INSTALLATION AND PREDELIVERY
BOAT RIGGING
Oetiker Clamp Servicing
Use Oetiker
â€
clamps for making hose connec-
tions. These clamps provide corrosion resistance,
minimize the potential for abrasion of rigging com-
ponents, and provide solid, permanent connec-
tions.
The selection and installation of an Oetiker clamp
is essential in the proper sealing of hose connec-
tions. The clamp identification numbers appear in
millimeters on the side of the clamp, near the top
of the ear. Refer to Oetiker Stainless Steel Step-
less Clamps chart for actual dimensions.
The nominal size of the clamp should be chosen
so that, when it is assembled on the connecting
part, the outside diameter of the hose lies approxi-
mately in the middle of the clamping range of the
clamp.
Oetiker Stainless Steel Stepless Clamps
WARNING
DO NOT re-use Oetiker clamps. Fuel leak-
age could contribute to a fire or explosion.

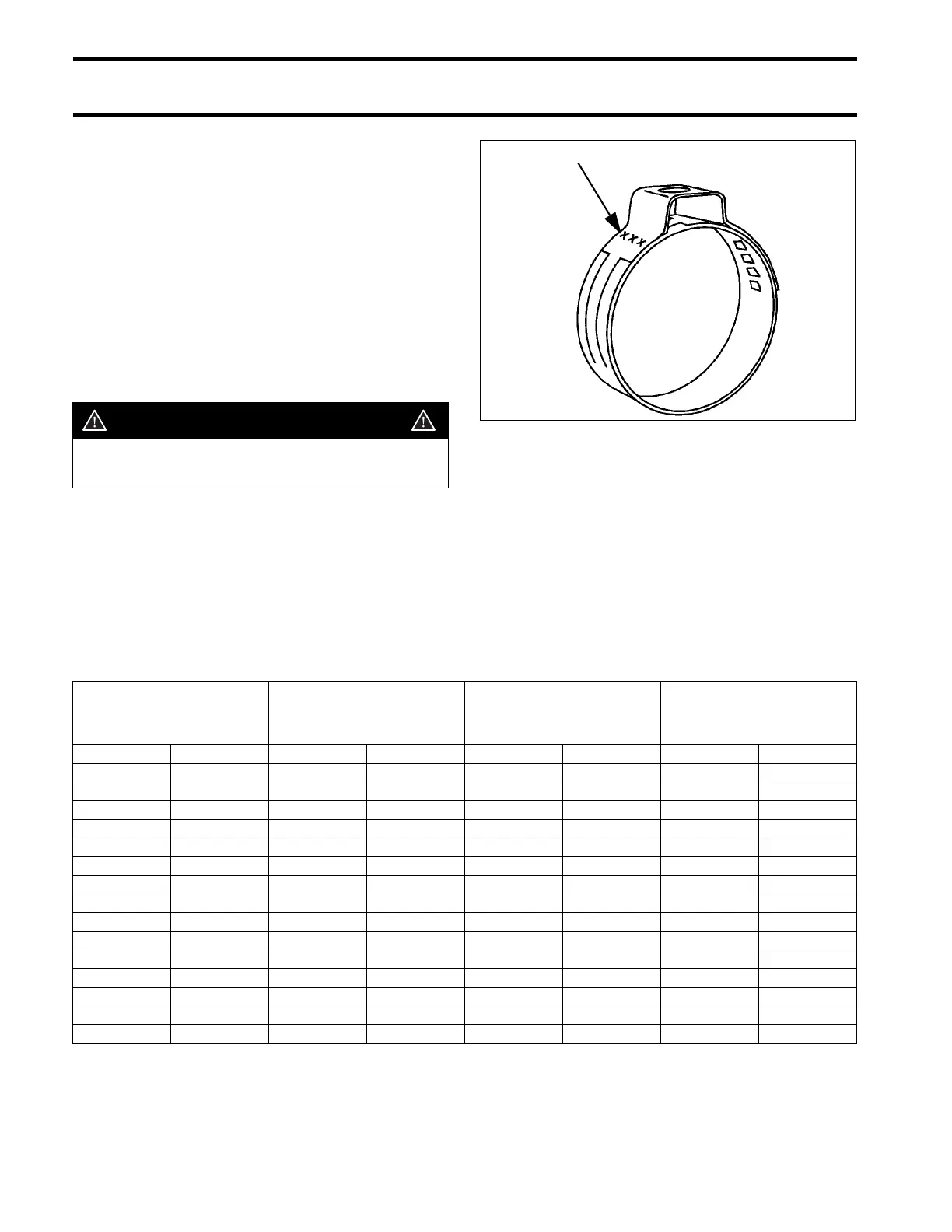

1. Clamp identification numbers 000093
1
CLAMP NO. NOMINAL O.D. INCHES MILLIMETERS
Replacement Clamp I.D. Inches MM Open Closed Open Closed
346930 95 3/8 9.5 0.374 0.307 9.5 7.8
348838 105 13/32 10.5 0.413 0.346 10.5 8.8
349516 113 7/16 11.3 0.445 0.378 11.3 9.6
347107 133 1/2 13.3 0.524 0.425 13.3 10.8
347108 138 17/32 13.8 0.543 0.449 13.8 11.3
346931 140 34/64 14 0.551 0.453 14 11.5
346785 145 9/16 14.5 0.571 0.472 14.5 12
346786 157 5/8 15.7 0.618 0.52 15.7 13.2
348839 170 11/16 17 0.669 0.571 17 14.5
346150 185 23/32 18.5 0.728 0.602 18.5 15.3
346151 210 13/16 21 0.827 0.701 21 17.8
346152 256 1 25.6 1.008 0.882 25.6 22.4
346153 301 1 3/16 30.1 1.185 1.063 30.1 26.9
349759 316 1 1/4 31.6 1.244 1.122 31.6 28.4
349729 410 1 5/8 41 1.614 1.492 41 37.9
