INSTALLATION AND PREDELIVERY
OUTBOARD INSTALLATION

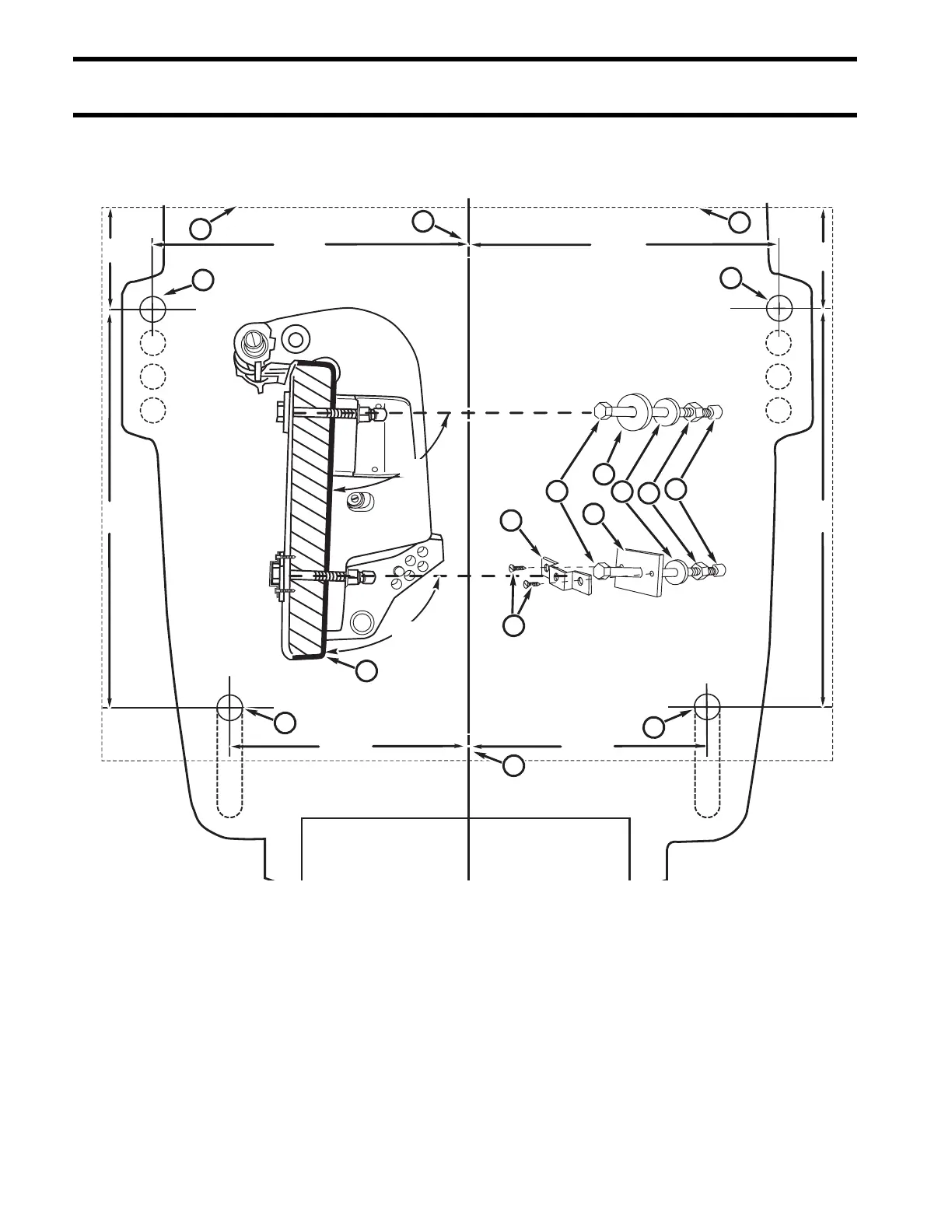

Drilling and Hardware Diagrams
IMPORTANT: This is not a template.
Quantity
1. Center of Transom 5. Bolt * 4
* Choose from the following bolt sizes:
2. Top of Transom 6. 318272 Plate 2 327053 3 in. (76 mm)
3. 1/2” Bolt Hole Locations 7. 318273 Retainer 2 318573 3 1/2 in. (89 mm)
4. Outside of Transom 8. 319886 Screw 4 313327 4 in. (102 mm)
9. 307238 Washer 2 336676 4 1/2 in. (114 mm)
10. 320248 Washer 4 331578 5 in. (127 mm)
11. 313623 Nut 4 321577 6 in. (152 mm)
12. 318572 Cap 4
000133m
2
2''
(50.8mm)
2"
(50.8mm)
8"
(203.2mm)
8"
(203.2mm)
4 15/16"
(125.4mm)
4 15/16"
(125.4mm)
6 7/16"
(136.5mm)
6 7/16"
(136.5mm)
2
3
1
3
3
3
1
5
10
11
12
9
6
7
8
90˚
90˚
4
