Evinrude E-Tec User Manual

35
ENGINE MONITORING
IMPORTANT: Your outboard must be
equipped with an engine monitoring system
such as I-Command, SystemCheck, or equiv-
alent. Operating your outboard without an en-
gine monitor will void your warranty for
failures related to monitored functions.
The engine monitoring system warns you of
conditions that could damage your outboard.
The monitoring system consists of a dash-
mounted gauge, a warning horn, sensors on
the engine and oil tank, and related wiring.
The system is compatible with the Evinrude
Modular Wiring System (MWS) or can be con-
nected to an I-Command system, or other
NMEA 2000 compliant CANbus instruments.
Gauges
Gauges are available in several styles, such
as a digital I-Command gauge with LCD dis-
plays or a basic SystemCheck gauge.
Function
The EMM activates the warning horn and the
gauge displays as follows:
• LOW OIL means that oil in the tank is at re-
serve level (about 1/4 full).
• NO OIL indicates an oil delivery problem
such as an empty oil tank or damaged oil
system.
• WATER TEMP or HOT indicates an engine
or EMM overheat condition.
• CHECK ENGINE or FAULT is used to indi-
cate other fault conditions identified by the
EMM.
For I-Command and other gauges, refer to the
gauge user’s guide for gauge displays, oper-
ation, warnings, and monitoring instructions.
System Self-Test
During engine start-up, pause with the key
switch in the ON position.
SystemCheck —The SystemCheck monitor
self-tests by sounding a half-second beep.
SystemCheck gauges self-test by turning the
indicator lights on simultaneously, then off in
sequence.
I-Command —The I-Command system self-
tests by displaying the Evinrude E-TEC wel-
come screen, followed by the tachometer dis-
play.
IMPORTANT: If the self-test does not happen
as stated, see your Dealer.
Engine Monitor Warnings
Engine monitor system warnings activate the
horn for 10 seconds and the appropriate
gauge light for a minimum of 30 seconds, or
until alarm is acknowledged. If the failure is
momentary (for example, oil moving in the
tank), the engine monitor gauge light or dis-
play may remain ON for a full 30 seconds be-
fore going out. If the unsafe operating
condition continues, a light or display remains
ON until the key is turned OFF or the failure is
corrected.
The warning will reoccur at the next startup if
the problem is not corrected.
If the EMM senses a problem could cause
permanent engine damage, it will also limit
engine speed to 1200 RPM. This additional
protection feature is referred to as S.A.F.E.
(Speed Adjusting Failsafe Electronics). If the
engine was running faster than 1200 RPM
when the S.A.F.E. mode activated, it will
shake noticeably. Under certain operating
conditions the EMM will shut OFF the engine.

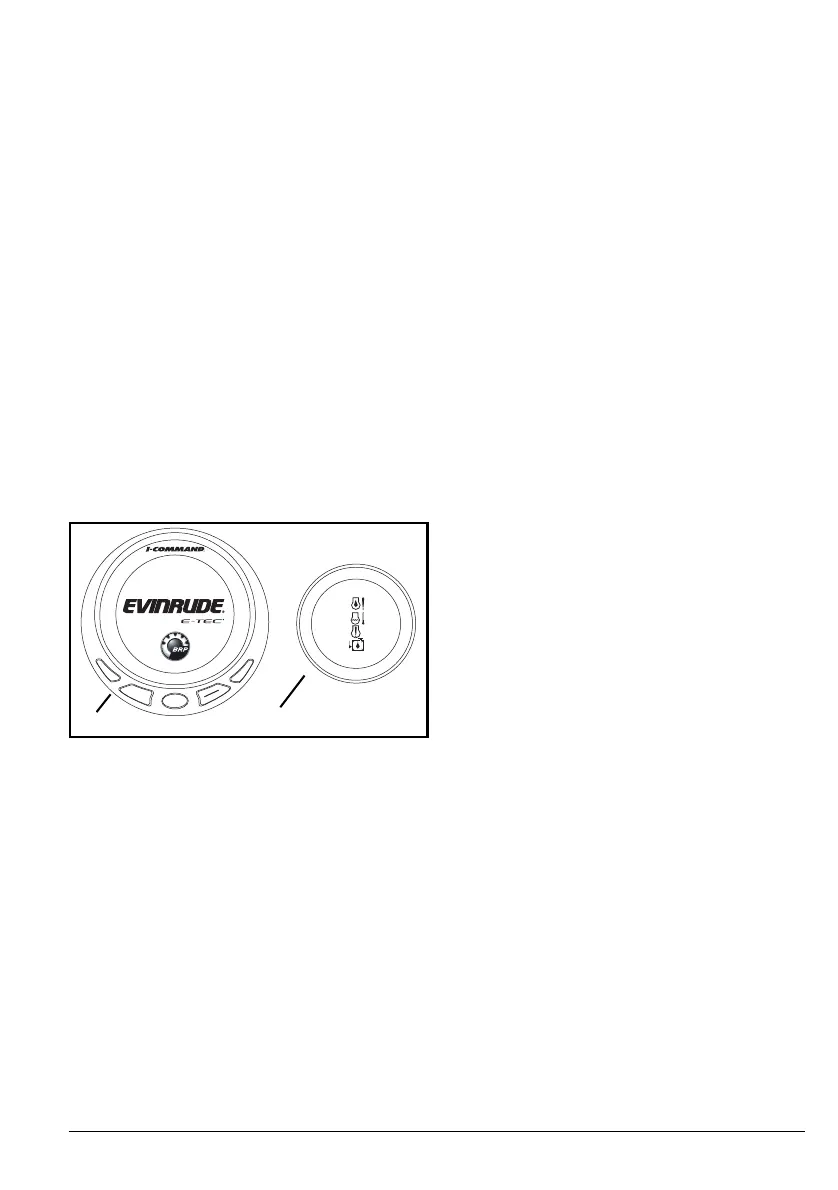

1. Typical I-Command Digital gauge
2. Typical SystemCheck gauge
008536
MENU
DOWN
UP
EXIT
PAGES
ENTER
NO OIL
WATER TEMP
CHECK ENGINE
LOW OI L
1
2

Evinrude E-Tec Specifications

General

Starting System	Electric
Trim System	Power Trim and Tilt
Horsepower Range	25 HP - 300 HP (depending on model)
Weight	Varies by model
Bore x Stroke	Varies by model
Displacement	Varies by model
Gear Ratio	Varies by model
Alternator Output	Varies by model
Shaft Length	15", 20", 25", 30" (depending on model)
Oil Injection	Yes
Warranty	3 years
Engine Type	E-TEC Direct Injection 2-Stroke
Fuel Type	Gasoline
