28
Using Your Evinrude E-TEC Outboard

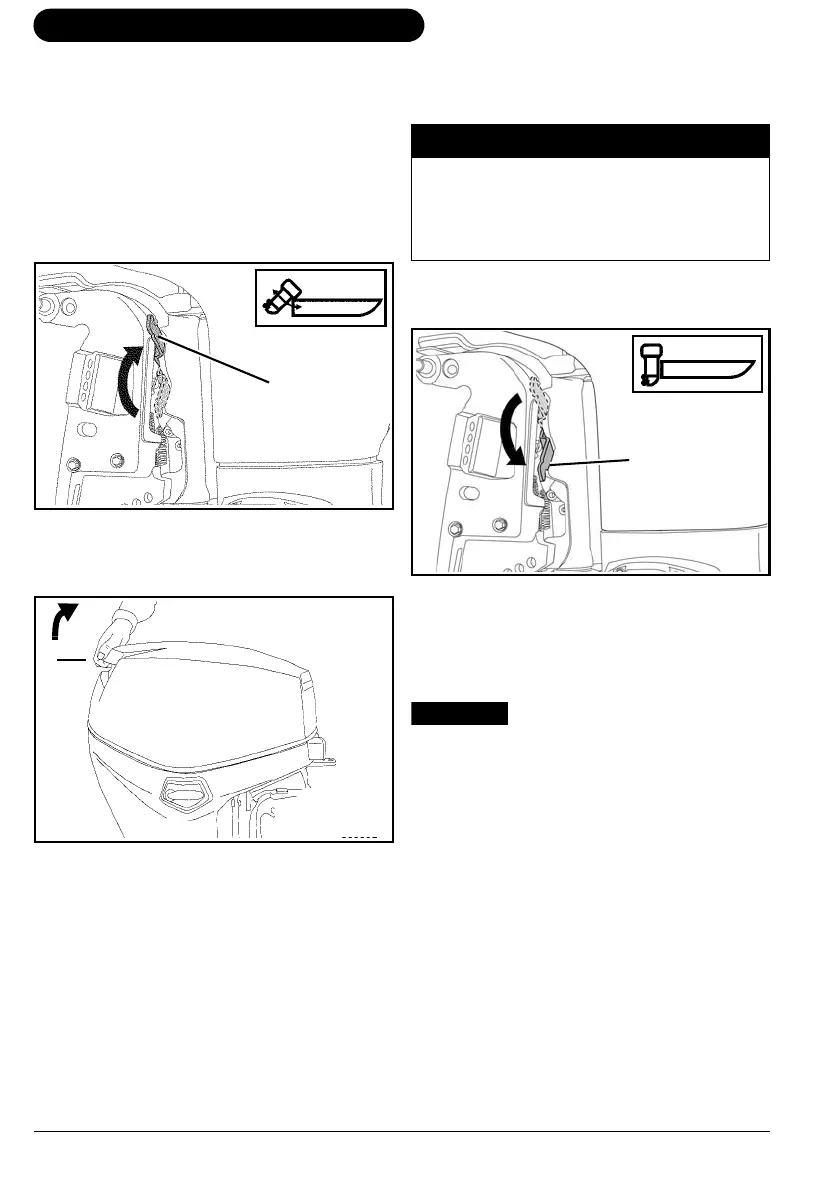

TILTING AND TRIM
MANUAL TILT MODELS
IMPORTANT: Use the tilt grip to tilt your out-
board. Do not use the tiller handle as a lever.
Tilt UP
Move the tilt/run lever to TILT position.
Grasp the tilt grip on engine cover and tilt out-
board to the full tilt position.
The tilt support bracket will automatically en-
gage.
Tilt DOWN
Move tilt/run lever to RUN position.
Grasp the tilt grip on engine cover and raise
outboard slightly. The tilt support will automat-
ically disengage. Slowly lower outboard to its
normal operating (RUN) position.
Operate outboard in normal
operating position with tilt/run lever in the
RUN position.
1. TILT position
008518
1. Tilt grip
002035
1
1
A WARNING
Leave tilt/run lever in the TILT position
while outboard is tilted. If the tilt/run
lever is moved to the RUN position, the
tilt support bracket can release and the
outboard could drop down unexpectedly.
1. RUN position
008519
1
NOTICE
