Evinrude E-Tec User Manual

26
Using Your Evinrude E-TEC Outboard
REMOTE CONTROLS - EVINRUDE/JOHNSON (BRP) CONTROLS
IMPORTANT: When selecting the remote control system for your boat, specify Evinrude com-
ponents. Evinrude controls deliver the cable stroke your outboard needs for positive shift and
throttle control, and they incorporate such safety and convenience features as:
• Start-in-gear prevention
• Plug-in compatibility with Evinrude Modular Wiring System (MWS)
A WARNING
If you choose a non-Evinrude remote control, it must have a start-in-gear prevention
feature. This feature can prevent injuries resulting from unexpected boat movement
when the engine starts.

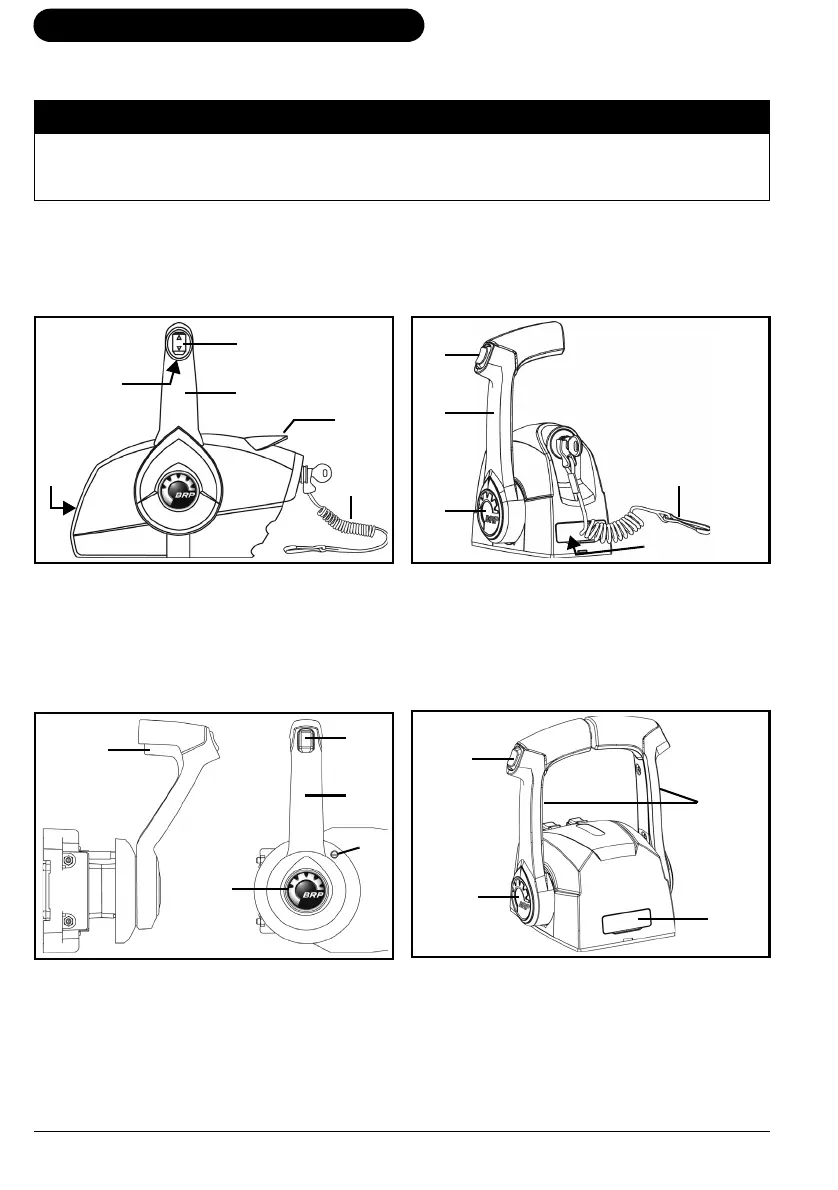

Side Mount Control 006448
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Neutral lock lever
4. Fast idle lever (warm-up)
5. Throttle friction adjusting screw
6. Engine cut–off switch clip and tether cord
Concealed Side Mount Control 006447
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Neutral lock lever
4. Fast idle button (warm-up)
5. Throttle friction adjusting screw
5
1
4
6
3
2
5
1
2
3
4
Single Lever Binnacle Mount Control 006446
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Fast idle button (warm-up)
4. Throttle friction adjusting screw (under cover)
5. Engine cut–off switch clip and tether cord
Dual Lever Binnacle Mount Control 006445
1. Handle – shift and throttle
2. Trim/tilt switch (where equipped)
3. Fast idle button (warm-up)
4. Throttle friction adjusting screw (under cover)
3
2
4
1
5
1
2
3
4

Evinrude E-Tec Specifications

General

Starting System	Electric
Trim System	Power Trim and Tilt
Horsepower Range	25 HP - 300 HP (depending on model)
Weight	Varies by model
Bore x Stroke	Varies by model
Displacement	Varies by model
Gear Ratio	Varies by model
Alternator Output	Varies by model
Shaft Length	15", 20", 25", 30" (depending on model)
Oil Injection	Yes
Warranty	3 years
Engine Type	E-TEC Direct Injection 2-Stroke
Fuel Type	Gasoline
