SADDLE INSTALL
/19
To ensure your saddle is at the correct hight and angle please see "SADDLE
ADJUSTMENT HIGHT" PAGE 27
FINAL ADJUSTMENT OF THESE BOLTS OCCURS DURING
ADJUSTMENT AND TORQUING PG. 27.

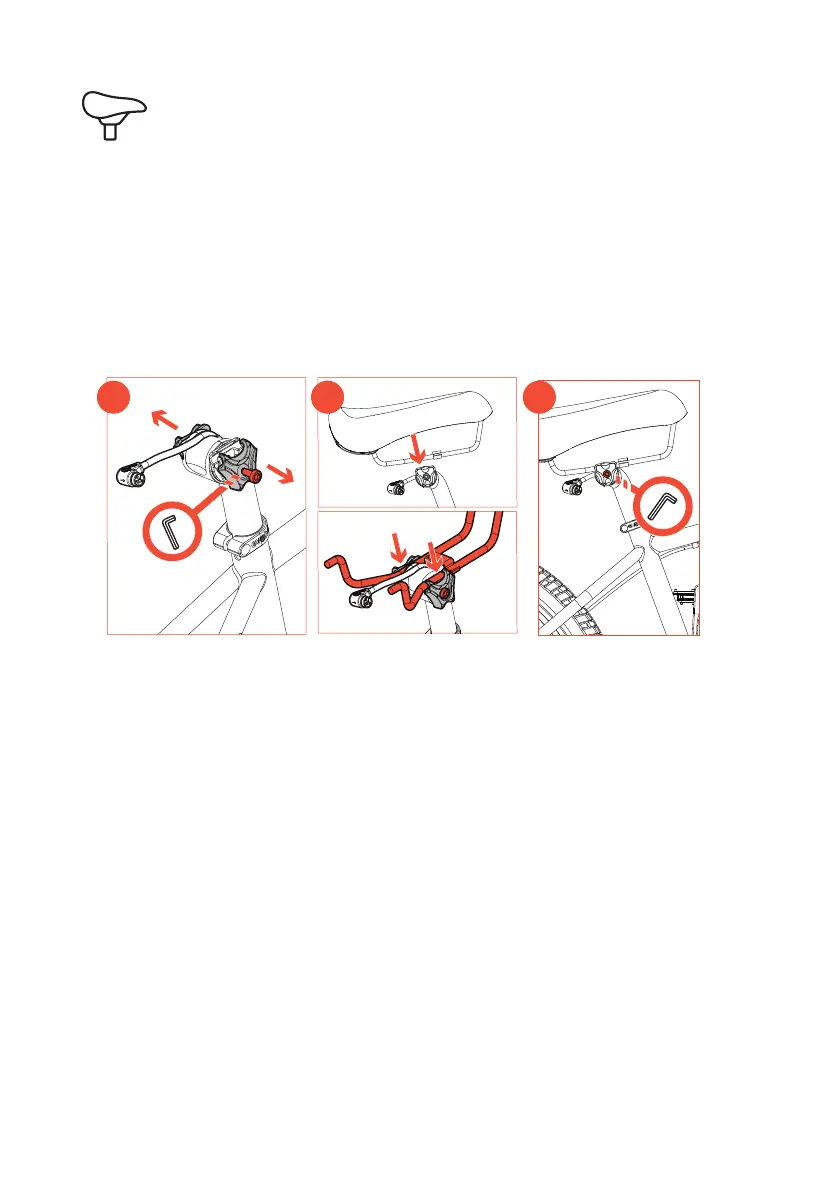

To install the saddle, loosen the hex bolts (1) either side of the saddle rail
clamp on the seat post. Do not completely remove, the side clamps should
remain attached to the seat post.
Place the saddle rails in the grooves either side of the seat post (2). Ensure
the rails are sitting in the grooves. Tighten the hex bolts to ensure the saddle
is rmly secured to the seat post (3).
