FRONT FORK AND FRONT WHEEL

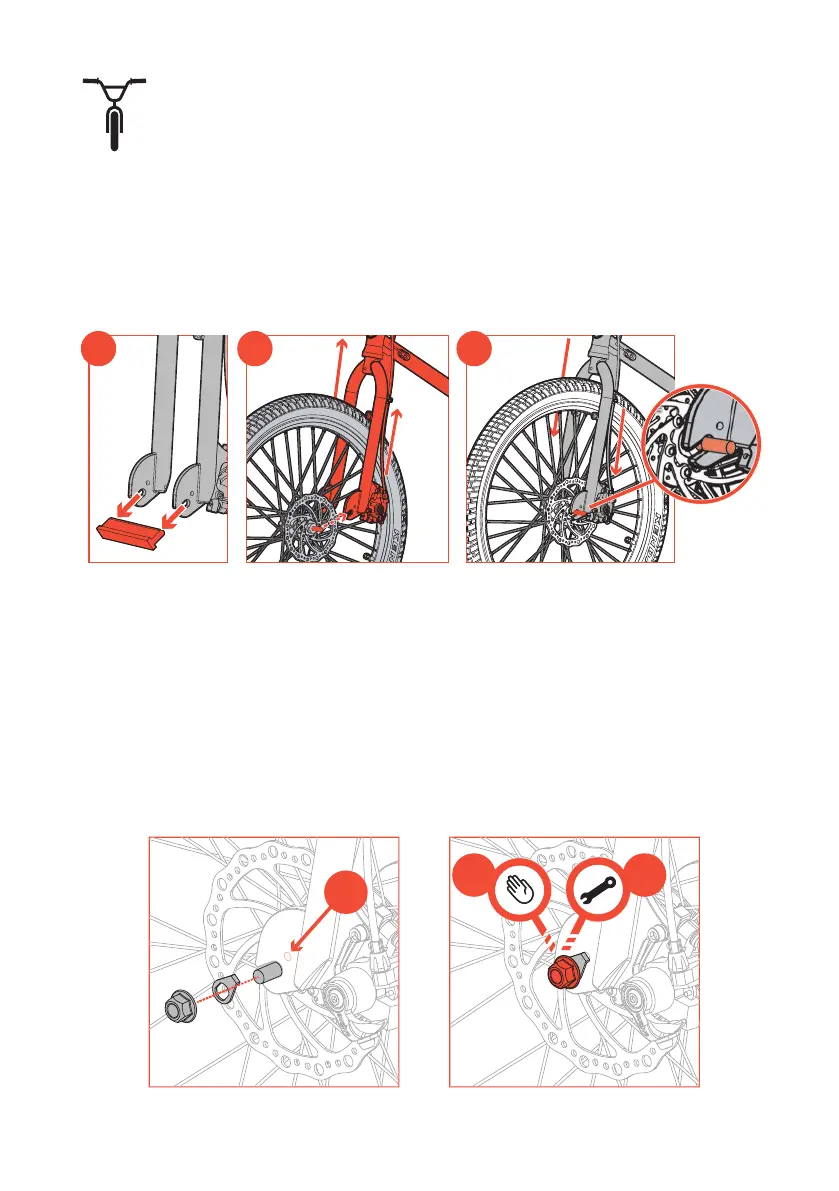

Remove the plastic axle brace (1). Prepare the front wheel axle for mounting
by loosening the front axle nuts and retainer washers.
Lift the bike from the handlebars to lower the front forks onto the front wheel
axle (2). Guide the disc into the brake caliper and the axle slots into the axle
plates (3). This is best to do with the help of another person.
Slide on the retainer washers so that the retaining hook is placed in the hole
on the axle plate of the front fork (1).
Thread the axle nut on by hand (2) and give a gentle tighten with a closed-end
wrench (3).
FINAL ADJUSTMENT OF THESE BOLTS OCCURS DURING
ADJUSTMENT AND TORQUING PG. 24.
