NOTE: SEAT POST MUST BE INSERTED AT LEAST TO THE
MINIMUM INSERTION MARK STAMPED ON THE LOWER PART OF
THE POST. IF NO MINIMUM INSERTION MARK CAN BE FOUND,
MAKE SURE AT LEAST 3 IN, (7.6CM), OF THE POST IS INSIDE THE
BICYCLE FRAME TUBE.
NOTE: SEAT POST CONTAINS ELECTRONIC CABLING. FAILURE
TO ADJUST OUTSIDE THE ACCEPTABLE RANGE MAY RESULT IN
DAMAGE TO YOUR BIKES ELECTRONIC SYSTEM.
SEAT POST INSTALL
/18

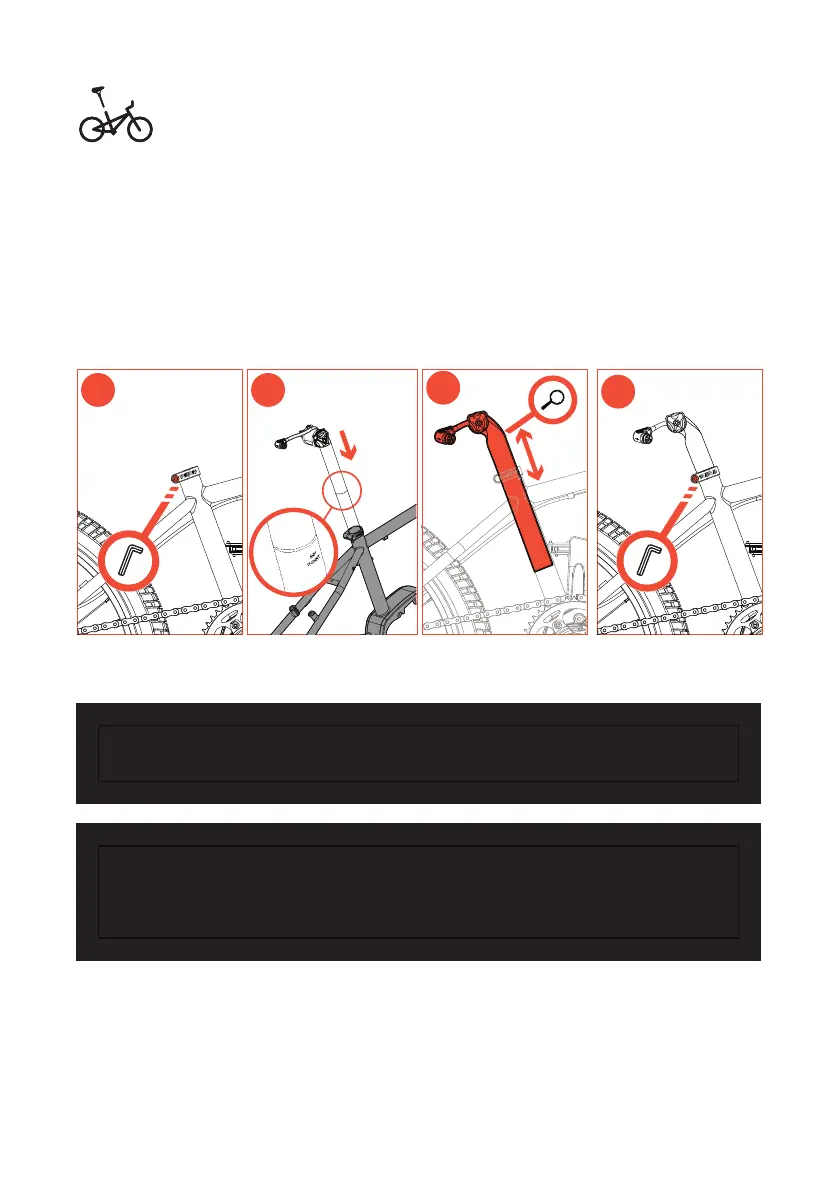

Loosen the hex bolt on the seat post clamp completely (1), gently lift and
install the seat post into the frame make note of the minimum insertion mark
on the seat post (2). Ensure the cable fed into the frame and is not obstructing
the movement of the seat post (3). Tighten the seat post clamp to 6-8NM (4).
FINAL ADJUSTMENT OCCURS DURING ADJUSTMENT AND TORQUING
PG. 27.
