BRAKE ADJUSTMENT

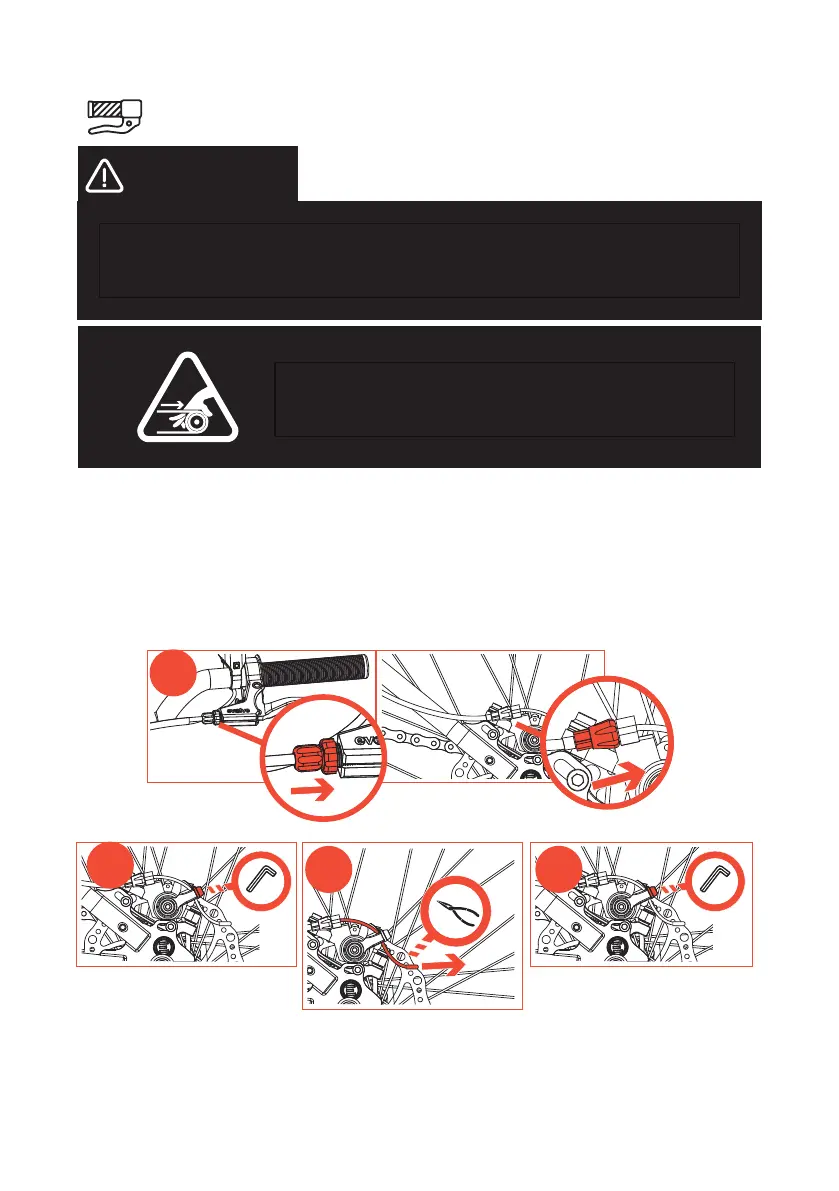

Turn the barrel adjusters on the Brake Lever and Caliper all the way in (1).
Loosen the pinch bolt on the caliper until it is relaxed (2). Pull the cable tight
so that it is free of slack (3), and then tighten the cable pinch bolt to secure
the cable in place.
IF ADJUSTMENTS ARE NOT CARRIED OUT CORRECTLY,
PROBLEMS MAY OCCUR. THIS CAN RESULT IN SERIOUS
INJURY. IF UNSURE, ADJUSTMENTS SHOULD BE DONE BY A
PROFESSIONAL FOR PROPER AND SAFE FUNCTION.
KEEP FINGERS AWAY FROM THE ROTATING
DISC BRAKE ROTOR. SHARP EDGES CAN
CAUSE INJURY IF CAUGHT IN OPENINGS
WHILE THE DISC ROTOR IS MOVING.
