Evoqua V10K - Injector 1 with Accessory

V10k automatic 7. Drawings
51
EN

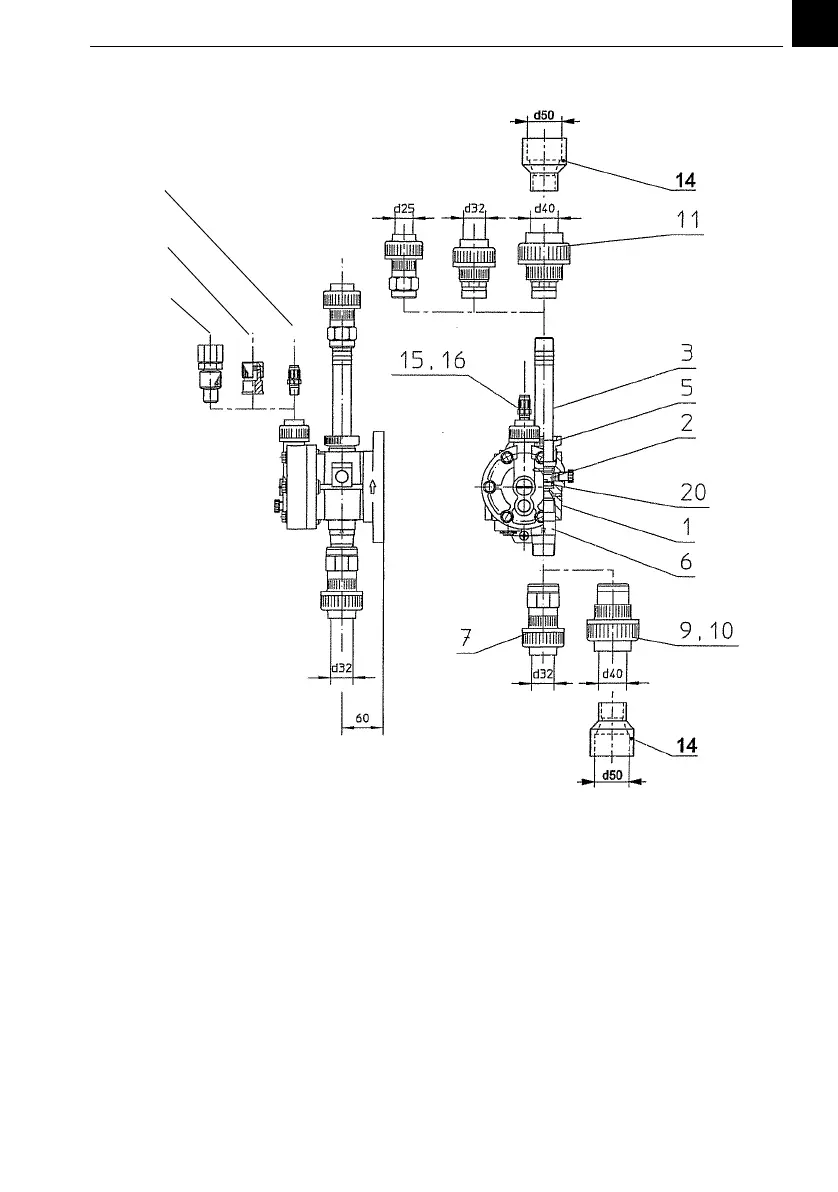

7.2.7 Injector 1" with accessory
A for hose ID6,35x1,6 (W2T505671).
B for hose ID9,5x1,6 (W2T505672).
C for hose ID12x2 (W2T505677).
Pos. 6, 7, 9, 10, 11 tightened with teflon tape.
Pos. 15, 16 tightened with silicone grease
(W3T165077). Pos. 14 supplied loose
A
B
C
