6.0 Installation and initial operational set-up

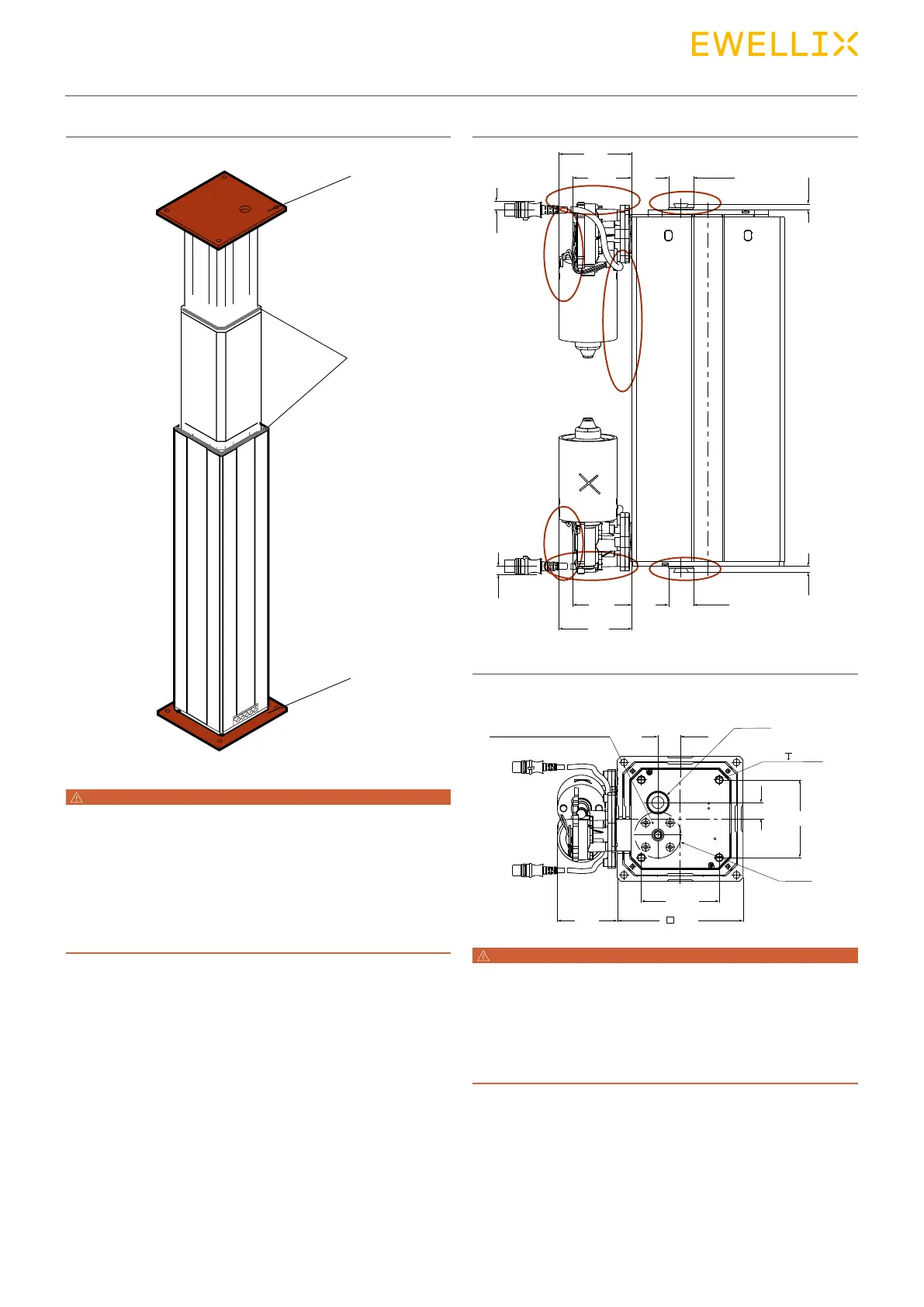

Fig. 14
WARNING
Risk of injury from use of a control unit not approved by the
manufacturer!
The use of a third party control unit may lead to serious
injuries or material damage. The manufacturer disclaims any
liability for damage or injury that may be caused in conjunction
with the use of a third-party operating element.
Therefore:
• Only use the Ewellix control unit.
1
2
3
Fig. 15
78
+1
0
163
63,5
+1
0
Ø6
±2
21
±2
29
±2
29
±2
146
±0,2
146
±0,2
101
±0,2
101
±0,2
Ø60
(78)
this area must be supported
this area must be supported
Ø28
±0,5
Ø28
±0,5
(screw)
78
+1
0
7,5
+1
0
63,5
+1
0
Ø6
±2
Ø28
±0,5
7,5
+1
0
M10 30 (×4)
M10 30 (×4)
21
±2
Ø60
Ø28
±0,5
(screw)
Fig. 16
78
+1
0
163
63,5
+1
0
Ø6
±2
21
±2
29
±2
29
±2
146
±0,2
146
±0,2
101
±0,2
101
±0,2
Ø60
(78)
this area must be supported
this area must be supported
Ø28
±0,5
Ø28
±0,5
(screw)
78
+1
0
7,5
+1
0
63,5
+1
0
Ø6
±2
Ø28
±0,5
7,5
+1
0
M10 30 (×4)
M10 30 (×4)
21
±2
Ø60
Ø28
±0,5
(screw)
WARNING
• Secure that Interfaces to the Pillar TLT2 are designed to prevent
that there is a collision to the moving parts or the motor.
• SecurethatRiskofSqueezingngersisavoided
• Secure that no electrical parts which can cause injury can come
in contact with human or equipment.
14. Connect the control to the power supply (⮑ Separate
operating manual for the control).
15. Ensure that the power plug of the control is accessible at
all times.
