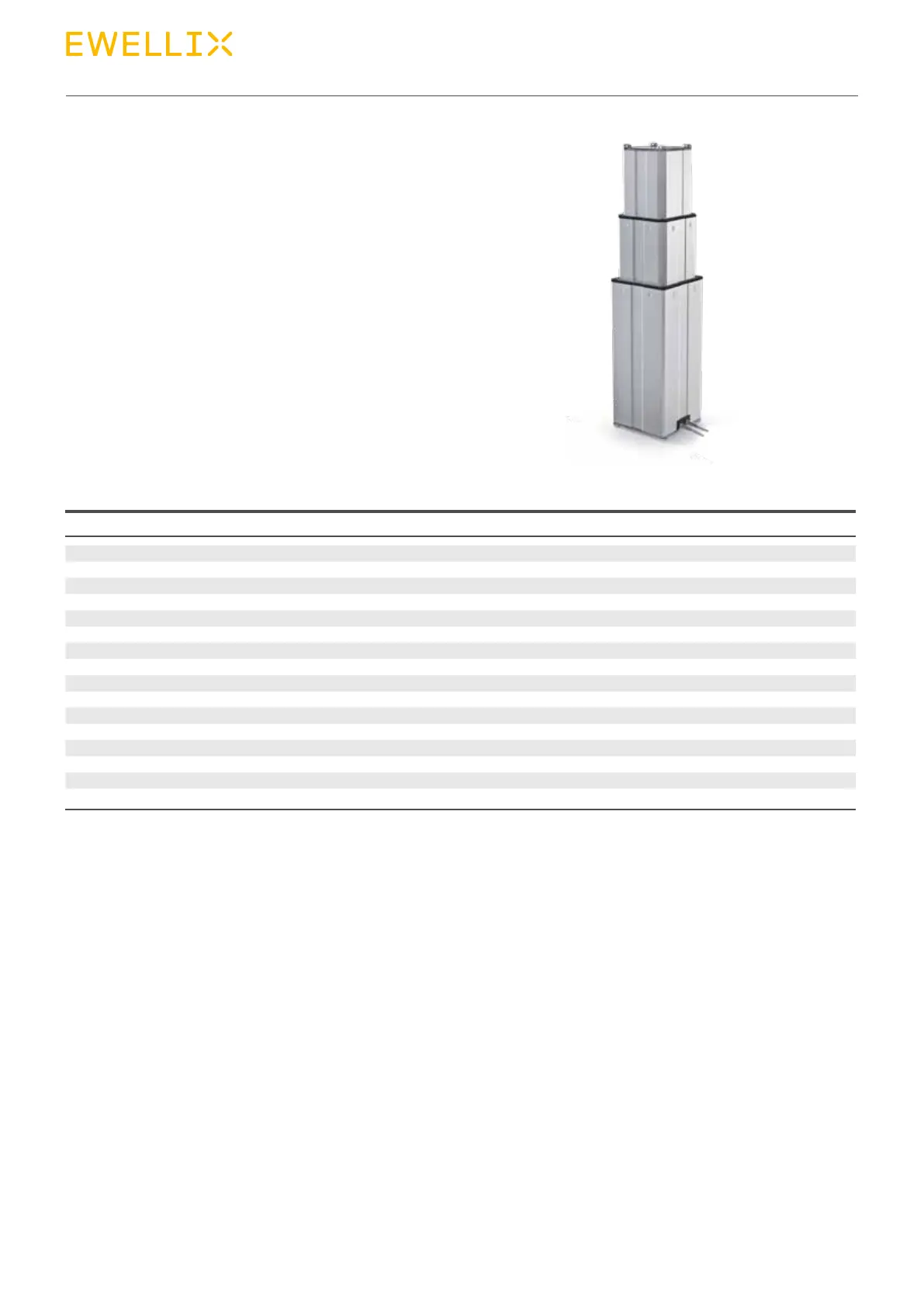

Ewellix THG - TLT1 Telemag Telescopic Pillar; Technical Data

44
THG/TLG/TLT
TLT1
Telemag telescopic pillar
Technical data
Benets
• Very small built-in dimension
• Powerful
Standards
• EN/IEC 60601–1
• UL 60601–1
1)
For details, please see bending load diagrams (⮑ page 46)
Unit TLT10– A1 TLT10 –A 2 TLT10– B1 TLT10 – C1 TLT10–C2
Rated push load N 3 000 4 000 2 000 1 000 2 000
Rated pull load N 0 0 0 0 0
Bending load Nm up to 400
1)
up to 1 000
1)
up to 250
1)
up to 110
1)
up to 480
1)
Speed (full load to no load) mm/s 11 to 16 13 to 19 13 to 19 25 to 36 25 to 42
Telescopic pillar version # of section 3-section 3-section 3-section 3-section 3-section
Stroke mm 300 to 700 300 to 700 300 to 700 300 to 700 300 to 700
Retracted length mm 0,5 × S+170 0,5 × S+240 0,5 × S+170 0,5 × S+170 0,5 × S+240
Voltage V DC 24 24 24 24 24
Power W 168 168 192 192 216
Current A 2×3,5 2×3,5 2×4,5 2×4,5 2×4,5
Duty cycle: intermittent operation min. 1 min./9 min 1 min./9 min 1 min./9 min 1 min./9 min 1 min./9 min
Ambient temperature °C +10 to +40 +10 to +40 +10 to +40 +10 to +40 +10 to +40
Type of protection IP 40 40 40 40 40
Protection class – SELV SELV SELV SELV SELV
Type of control – electrical electrical electrical electrical electrical
Weight kg 15 to 30 15 to 30 15 to 30 15 to 30 15 to 30
