Telescopic pillars
TLT20
Telemag telescopic pillar
Technical data
Benets
• Verysmallbuilt-indimension
• Powerful
• Highspeed
Standards
• EN/IEC60601–1
• UL60601–1
1)
Fordetails,pleaseseebendingloaddiagrams(⮑ page 4)
Unit TLT20 – A3
Ratedpushload N 5000
Ratedpullload N 0
Bendingload Nm upto500
1)
Speed(fullloadtonoload) mm/s 18to28
Telescopicpillarversion #ofsection 3-section
Stroke mm 300to700
Retractedlength mm 0,5×S+130
Voltage VDC 24
Power W 312
Current A 2×6,5
Dutycycle:intermittentoperation min. 1min./9min
Ambienttemperature °C +10to+40
Typeofprotection IP 00
Protectionclass – SELV
Typeofcontrol – electrical
Weight kg 15to30
3
Telemag TLT20
Control unit
SCU 1 SCU 5 SCU 9 VCU 5 VCU 8 VCU 9 BCU 5 BCU 8
TLT
● ● ● ● ● ● ● ●
Operating switches
EHA3 ● ● ● ● ● ● ● ●
STJ ● ● ● ● ● ● ● ●
STE ● ● ● ● ● ● ● ●
78
163
63,5
Ø6
±2
21
±2
29
±2
29
±2
146
±0,2
146
±0,2
Stroke S ±4
X
Retracted Length
RL=S/2 +130 ±4
101
±0,2
101
±0,2
Ø60
(78)
This area must
be supported
This area must
be supported
Ø28
±0,5
78
63
+1
0
+1
0
54,5
56,68
54,5
7,5
+1
0
7,5
+1
0
+1
0
Ø6
±2
Ø28
±0,5
M10 30 (×4)
M10 30 (×4)
21
±2
Ø60
+1
0
158,5
57
158,5

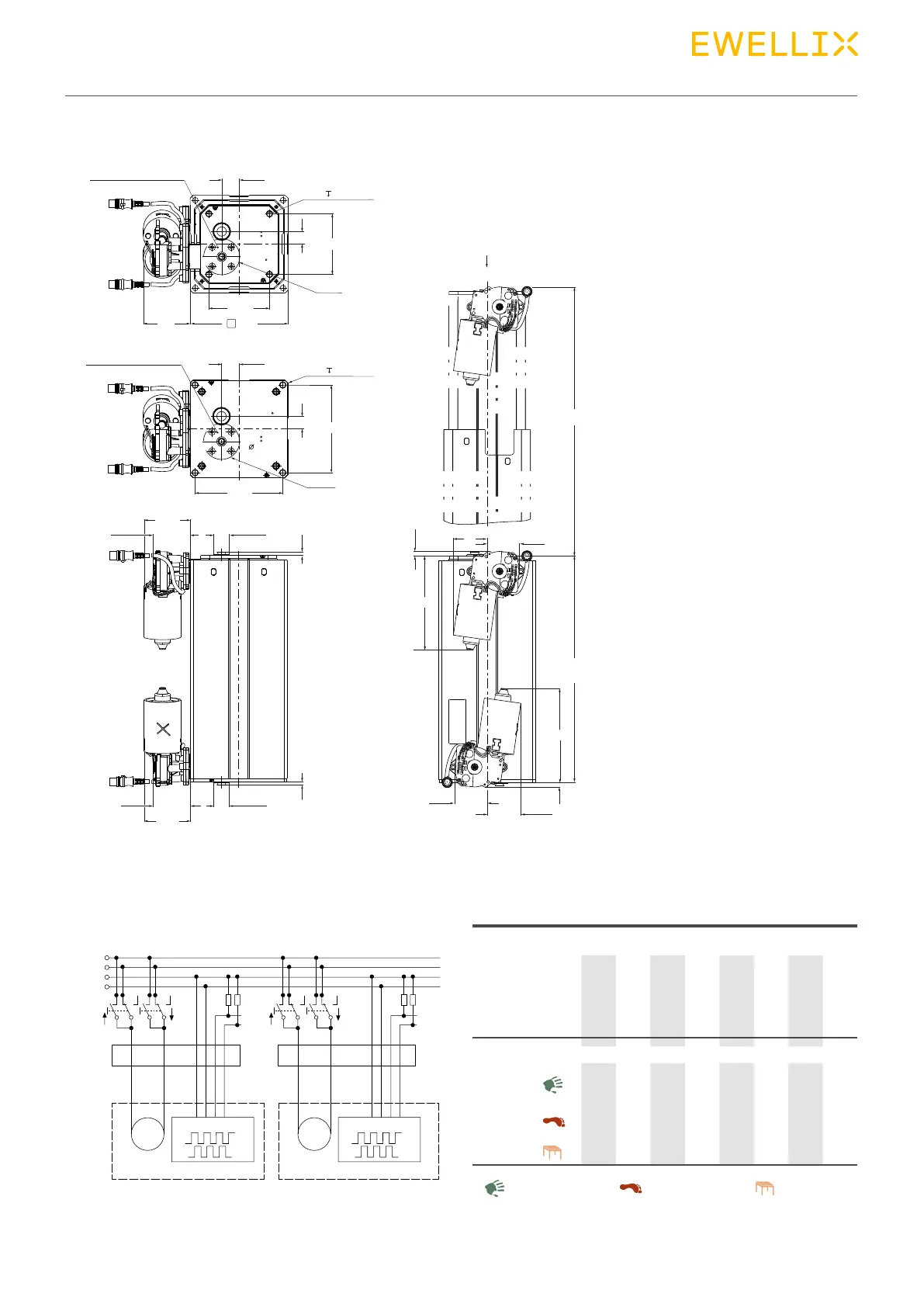

Dimensional drawing
Connecting diagrams Suitable control units and accessories
Note:mountingplates
arenotincluded.
Tobeorderedseparately.
Legend:
S=stroke
L=retractedlength
DeskswitchHandswitch Footswitch
+
-
5V+
GND
1+7
2+4
1,5K 1,5K
Hall A
Hall B
Hall A
Hall B
3 5 6 8
1
8
3 6 4 5
3 5 6 8
Blue
DIN8
Molex
Plug type:
DIN8
Molex
Plug type:
Red
M M
2 Hallsensors signal
Actuator
1+7
2+4
3 6 4 5
1
8
1,5K 1,5K
Actuator
2 Hallsensors signal
RedBlue
24 V DC
