EWM Tetrix 350 - Plasma Torch Connection Details (with GMU)

Design and function
Plasma welding
099-004854-EW501
19.02.2014
31

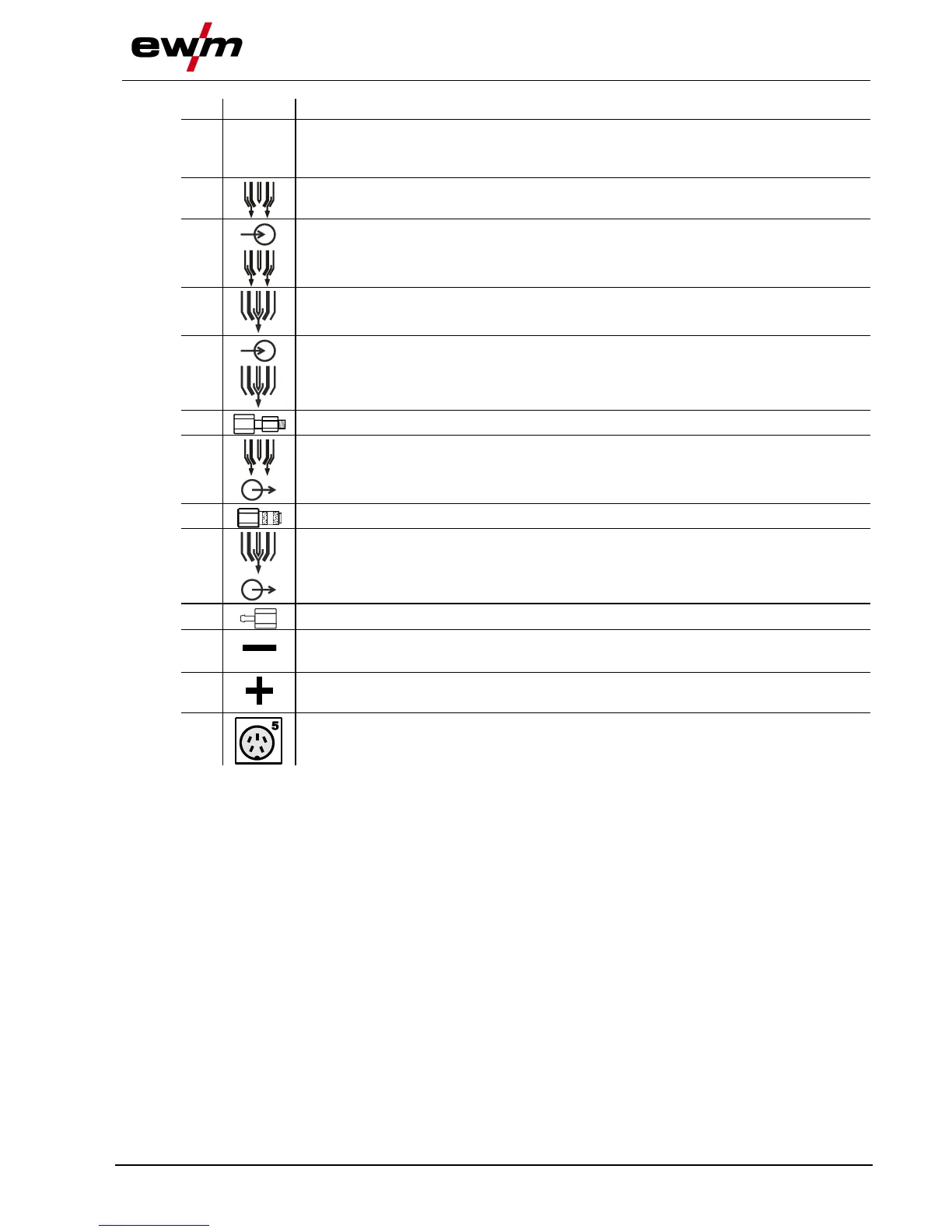

Item
Symbol
Description 0
1
G1/4 gas connection line
Connection of the welding gases between the gas metering unit (GMU) and welding
machine
2
G1/4" shielding gas connecting nipple, welding machine output
Connection to the welding torch or gas metering unit (GMU)
3
G1/4 shielding gas connecting nipple, gas metering unit input
Connection to the welding machine
4
G1/4" plasma gas connecting nipple, welding machine output
Connection to the welding torch or gas metering unit (GDE)
5
G1/4 plasma gas connecting nipple, gas metering unit input
Connection to the welding machine
6
Adapter (G1/4 > G1/8)
7
G1/4 shielding gas connecting nipple, gas metering unit output
Connection to the welding torch
8
Adapter (G1/8 > cap)
9
G1/4 plasma gas connecting nipple, gas metering unit output
Connection to the welding torch
10
Adapter (G1/8 > plug-in nipple)
11
Connection socket, "-" welding current
TIG/Plasma welding current connection
12
Pilot current connection socket
Plasma welding torch nozzle potential
13
5-pole connection socket, welding torch control lead
• Create the connection between the G1/4 shielding gas connecting nipple, welding machine output and
the G1/4 shielding gas connecting nipple, gas metering unit input to the G1/4 gas connection line.
• Create the connection between the G1/4 plasma gas connecting nipple, welding machine output and
the G1/4 plasma gas connecting nipple, gas metering unit input to the G1/4 gas connection line.
• Screw adapter (G1/4 > G1/8) onto G1/4 shielding gas connecting nipple, gas metering unit output.
• Screw adapter (G1/8 > cap) onto adapter (G1/4 > G1/8).
• Screw adapter (G1/4 > G1/8) onto G1/4 plasma gas connecting nipple, gas metering unit output.
• Screw adapter (G1/8 > plug-in nipple) onto adapter (G1/4 > G1/8).
• Insert the plug on the welding current lead into the "-" welding current connection socket and lock.
• Insert the plug of the pilot power line into the "+" pilot current connection socket.
• Insert the torch control lead plug into the “5-pole connection socket, welding torch control lead” and
lock.
• Insert connecting nipple on the torch shielding gas line into adapter (G1/8 > cap).
• Insert connection socket on the torch plasma gas line onto adapter (G1/8 > plug).
