EWM Tetrix 350 - Synchronization via Cable; Synchronization via Cable (50-200 Hz)

Design and function
Simultaneous welding on both sides, synchronisation types
86
099-004854-EW501
19.02.2014

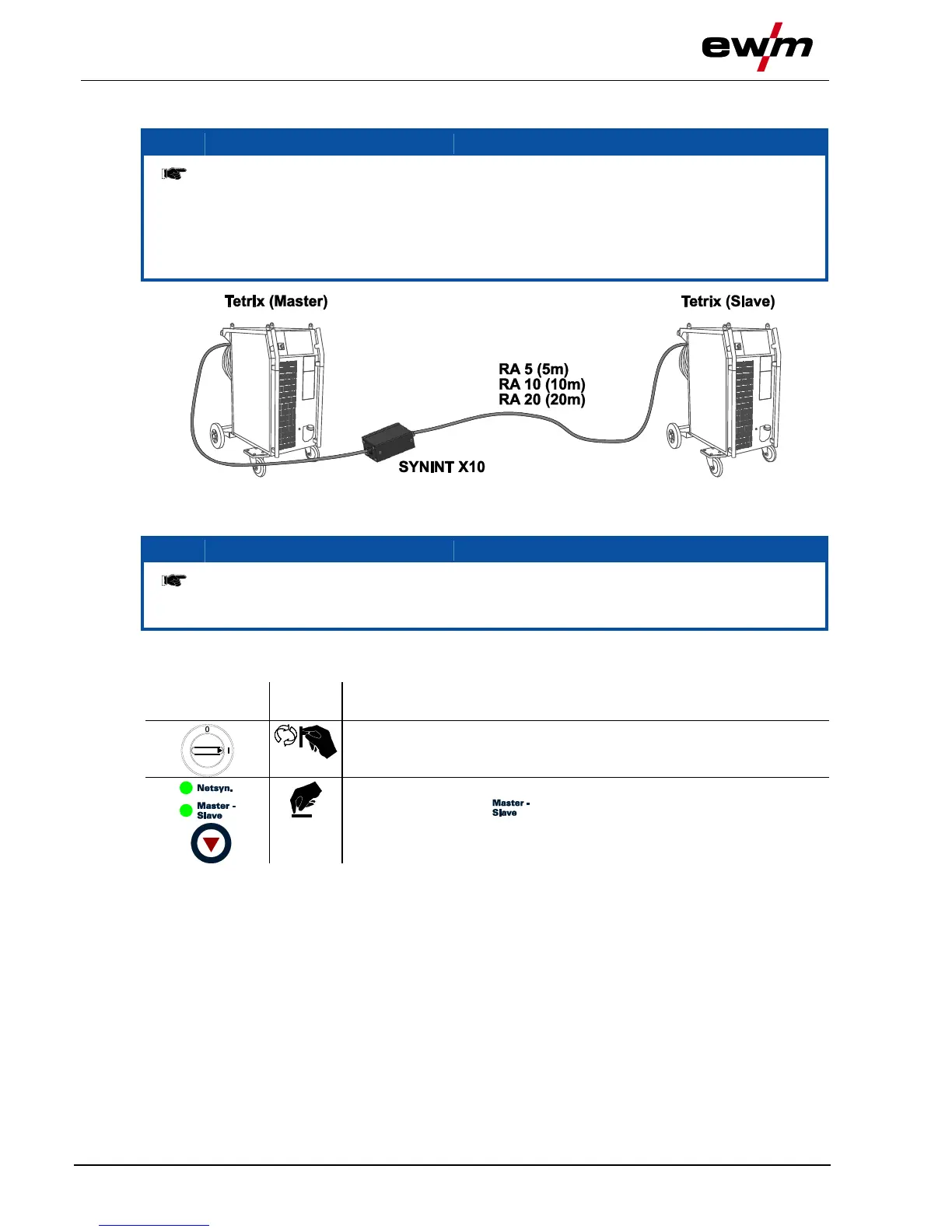

5.16.2 Synchronisation via cable (frequency 50Hz to 200Hz)
HINWEIS
This application describes synchronisation (master/slave operation) with two machines
in the TETRIX series. The following components are required:
• The synchronisation interface SYNINT X10
• Control lead (connecting cable) of the relevant length
• Both welding machines must be fitted with the 19-pole TIG interface for mechanised welding
(optional)
• Connect the SYNINT X10 synchronisation interface connector plug to the 19-pole TIG interface for
mechanised welding on the rear of a welding machine from the TETRIX series (master).
HINWEIS
The machine connected to the synchronisation interface using the short connection
cable is designated the "master" welding machine. The TIG AC frequencies are set on
this welding machine and transferred to the second welding machine (slave).
• Connect the extension cable RA (5 m, 10 m or 20 m) between the interface and the 19-pole TIG
interface for mechanised welding on the second welding machine.
Operating
element
Action
Result
Switch on the welding machine.
Select "Synchronisation types" parameter:
Press until signal light comes on.
This setting must be made on both machines.
