5.13.7 Manual remote control RT PWS 1 19POL
Functions
• Infinitely adjustable welding current (0% to 100%) depending on the preselected
main current at the welding machine
• Pole reversing switch, suitable for machines with PWS function
5.13.8 Foot-operated remote control RTF1 19POL
Functions
• Infinitely adjustable welding current (0% to 100%) depending on the preselected
main current on the welding machine.
• Start/stop welding operation (TIG)
ActivArc welding is not possible in combination with the foot-operated remote control.

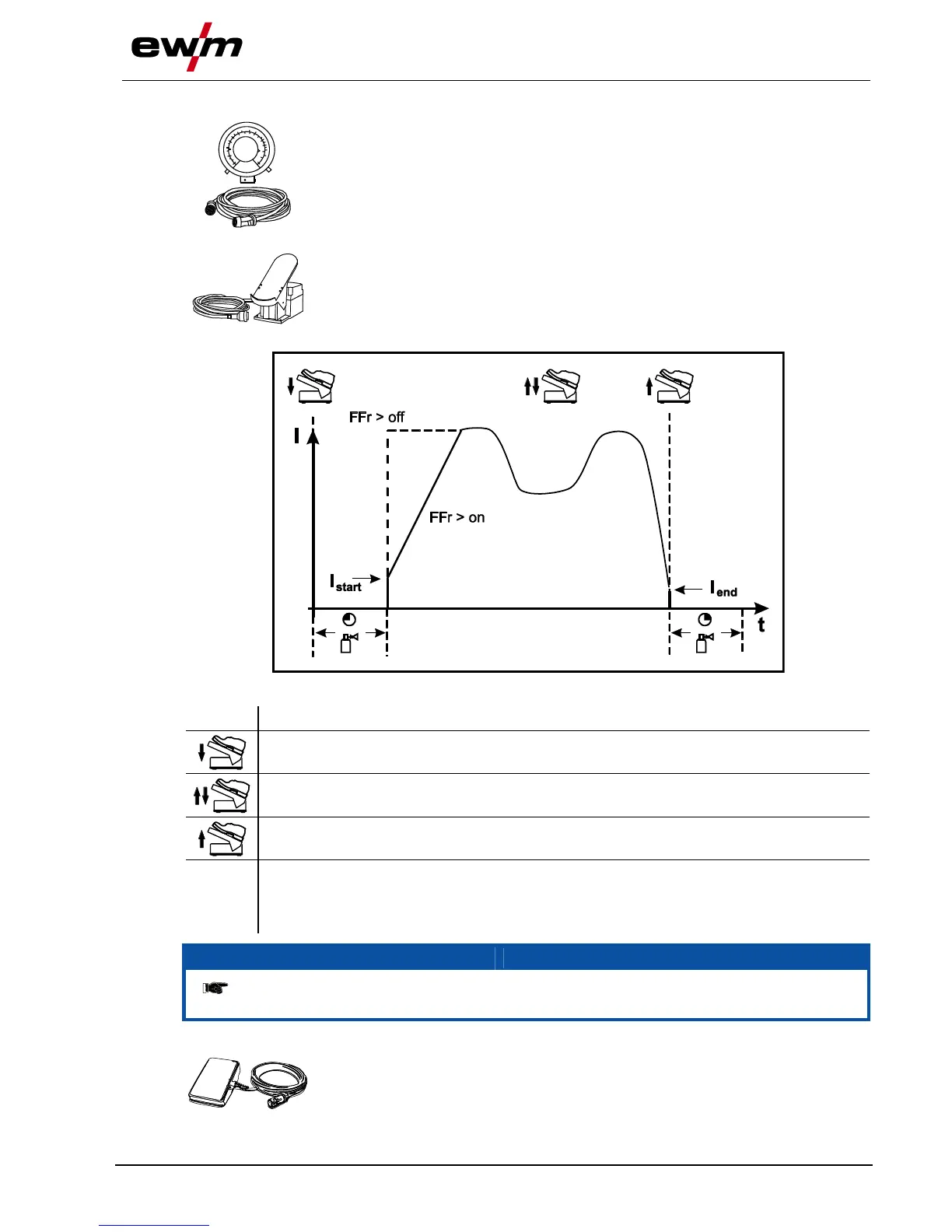

Figure 5-36
Symbol
Meaning
Actuate foot-operated remote control (start welding process)
Operate foot-operated remote control (set welding current according to application)
Release foot-operated remote control (end welding process)
FFr
RTF ramp function
on
Welding current runs in a ramp function at the specified main current
off
Welding current goes immediately to the specified main current
NOTE
The RTF ramp function can be switched on and off in the machine control sub-menu
(see "Advanced settings > ramp function RTF" chapter).
5.13.9 Foot-operated remote control RTF2 19POL 5m
Functions
• Infinitely adjustable welding current (0% to 100%) depending on the preselected
main current on the welding machine.
• Start/stop welding operation (TIG)
ActivArc welding is not possible in combination with the foot-operated remote control.
