Design and function
TIG Synergic operating principle
099-004854-EW501
19.02.2014
55

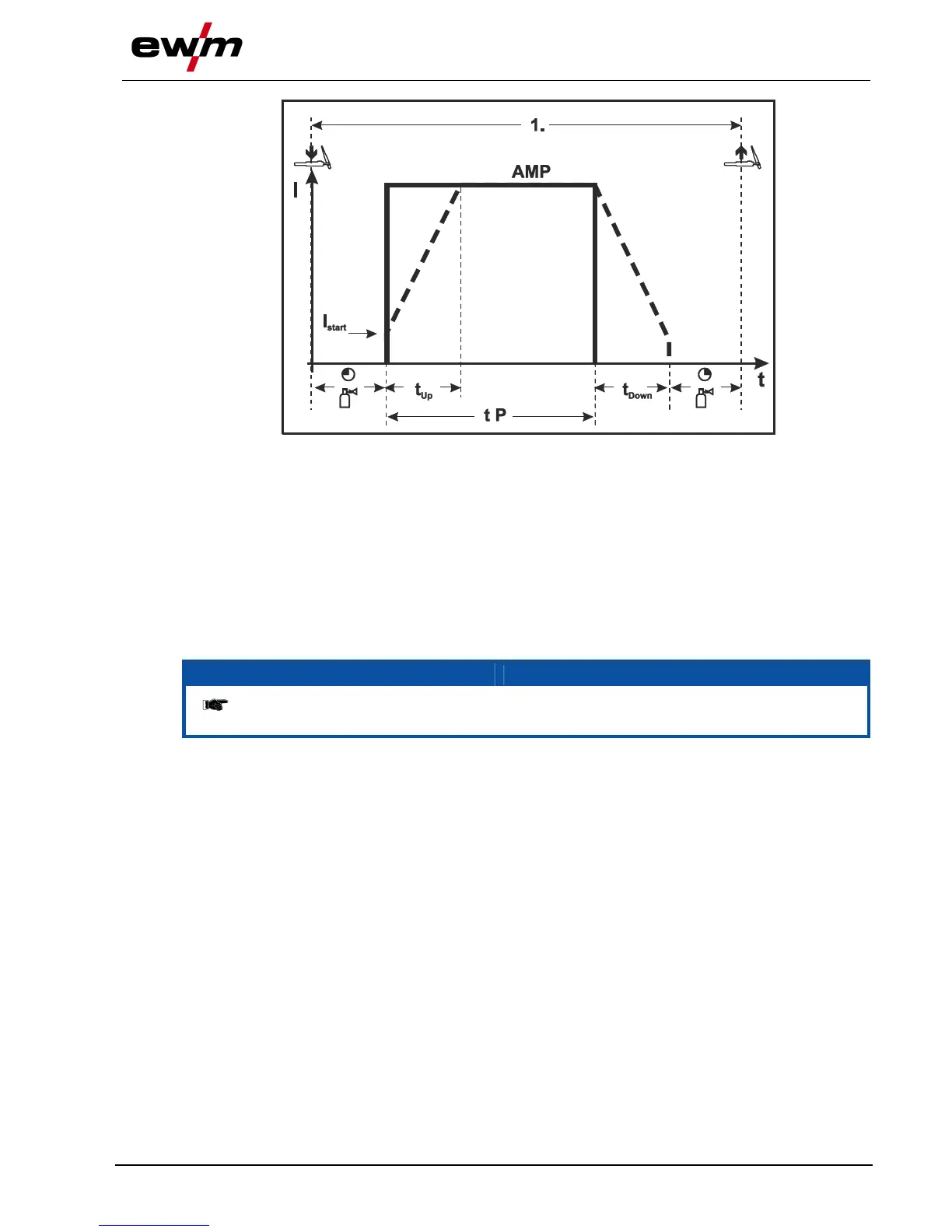

Figure 5-18
As an example the process is shown with HF ignition. Arc ignition with lift arc is also possible, however
(see chapter "Arc ignition").
Sequence:
• Press and hold torch trigger 1.
• The gas pre-flow time elapses.
• HF ignition pulses jump from the electrode to the workpiece, the arc ignites.
• The welding current flows and immediately assumes the value set for the ignition current I
start
.
• HF is switched off.
• The welding current increases in the adjusted up-slope time to the main current AMP.
NOTE
The process ends when the set spotArc time elapses or if the torch trigger is released
prematurely.
