Machine description
WEGA 351, 401, 451K
Item No.: 099-004934-EWM01 19

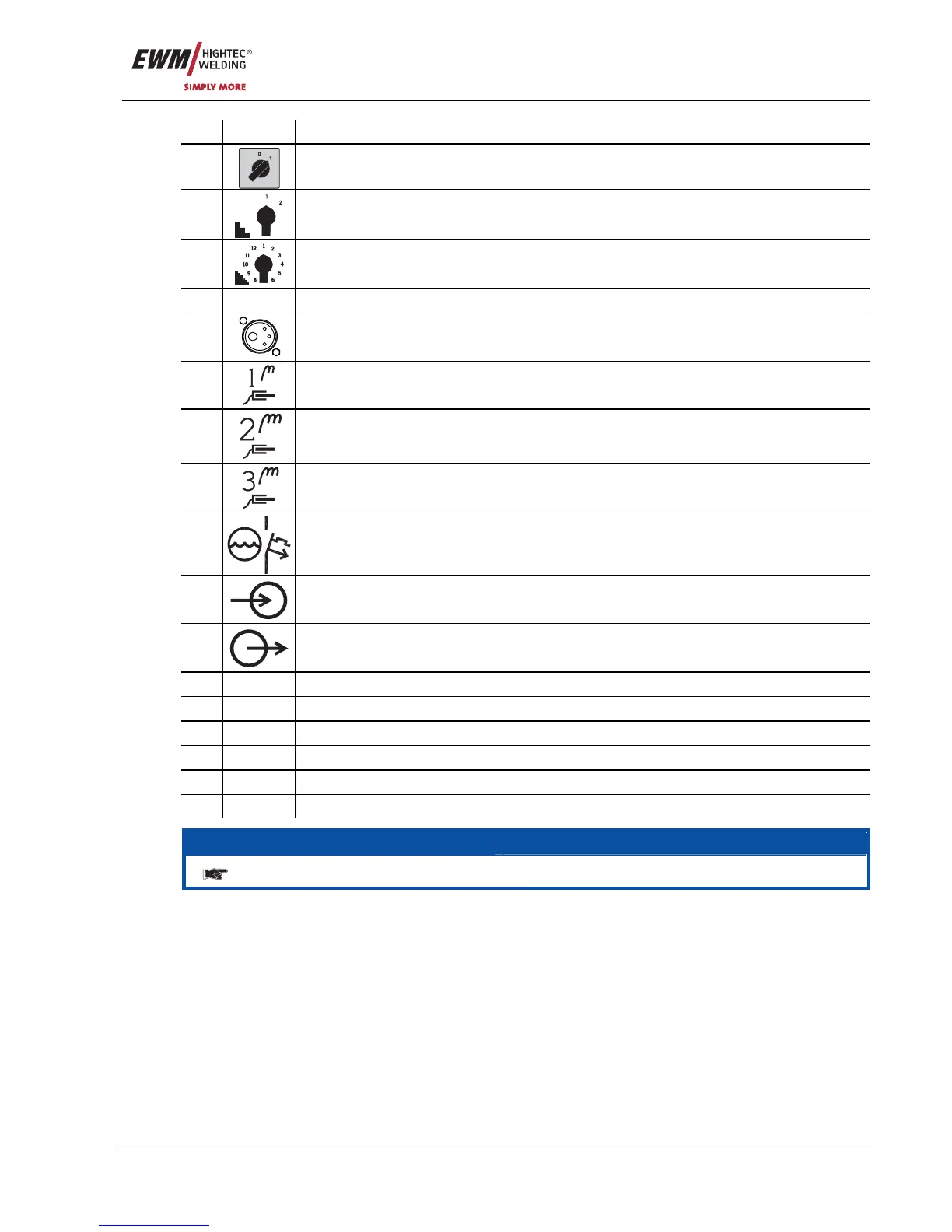

Item Symbol Description 0
1
Main switch, machine on/off
2
Step switch, welding voltage "coarse"
3
Step switch, welding voltage
4 Operating elements (see chapter Function specification)
5
Central connection for welding torch (Euro)
Integrated welding current, shielding gas and torch trigger
6
Connection socket, workpiece lead
"Hard" choke tapping
7
Connection socket, workpiece lead
"Medium" choke tapping
8
Connection socket, workpiece lead
Choke tapping "soft"
9
Key button, automatic cut-out of coolant pump
Press to reset a triggered fuse
10
Rapid-action closure coupling, red (coolant return)
11
Rapid-action closure coupling, blue (coolant supply)
12 Coolant tank
13 Transport bar
14 Cooling air inlet
15 Conveyor rolls, guide castors
16
Lifting lug
17 Conveyor rolls, fixed castors
NOTE
Step switch, "coarse" welding voltage not applicable with WEGA 351
