Functional characteristics
Machine control – Operating elements
30 Item No.: 099-004934-EWM01
5 Functional characteristics
5.1 Machine control – Operating elements
5.1.1 Welding machine control M1.02

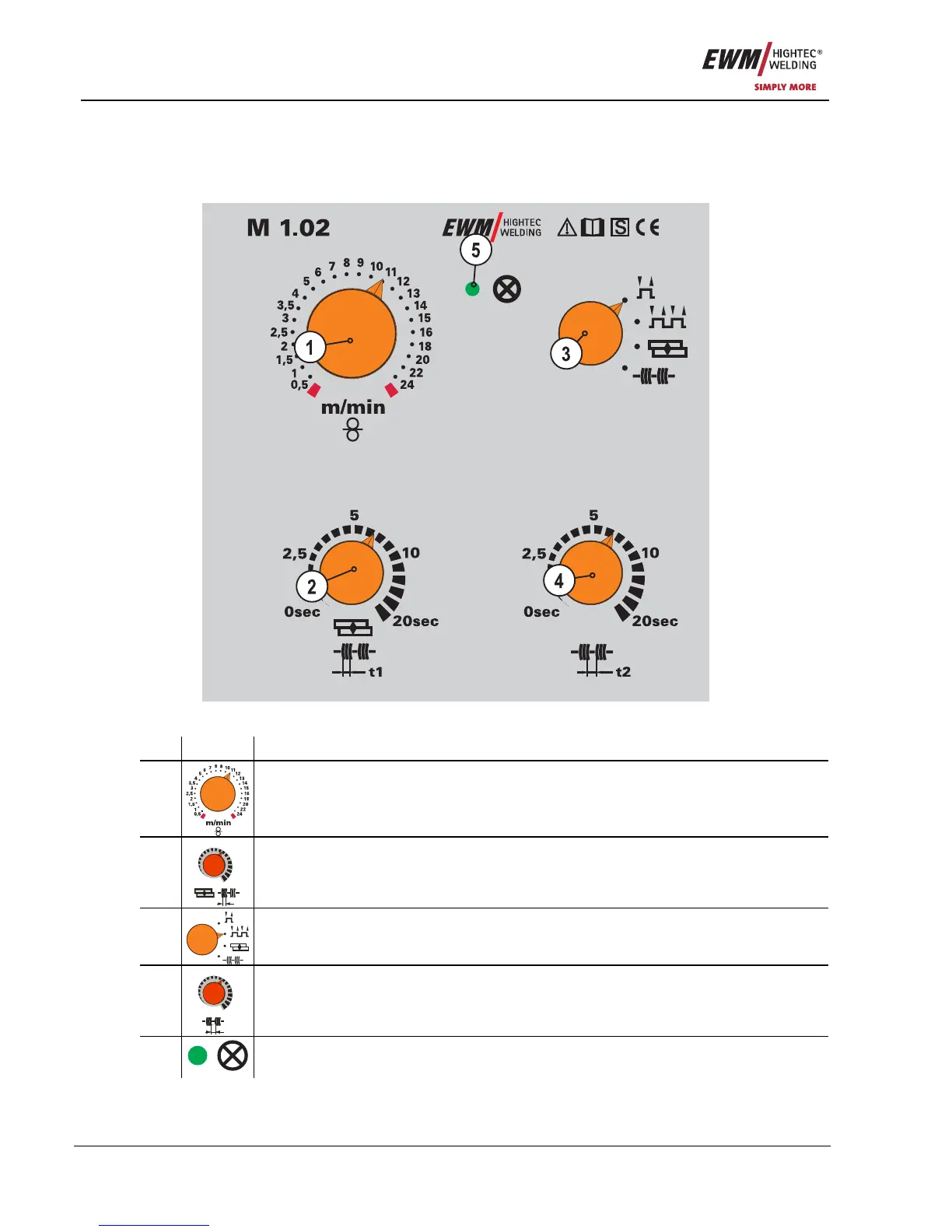

Figure 5-1
Item Symbol Description 0
1
Rotary dial, Wire speed setting
Infinite adjustment of the wire speed.
2
0sec
5
10
20sec
2,5
t1
Rotary dial, Spot and interval times
Infinite adjustment of the welding time (0-20s) in "Spots and interval" operating mode
3
"Operating mode" selector switch
Changeover between non-latched, latched, spot, interval
4
0sec
5
10
20sec
2,5
t2
0sec
5
10
20sec
2,5
t2
Rotary dial, Pause time
Infinite adjustment of the pause time (0–20s) in "Interval" operating mode
5
Ready for operation signal light
Signal light on when the machine is switched on and ready for operation
