Machine description
WEGA DRIVE 41
28 Item No.: 099-004934-EWM01
4.4 WEGA DRIVE 41

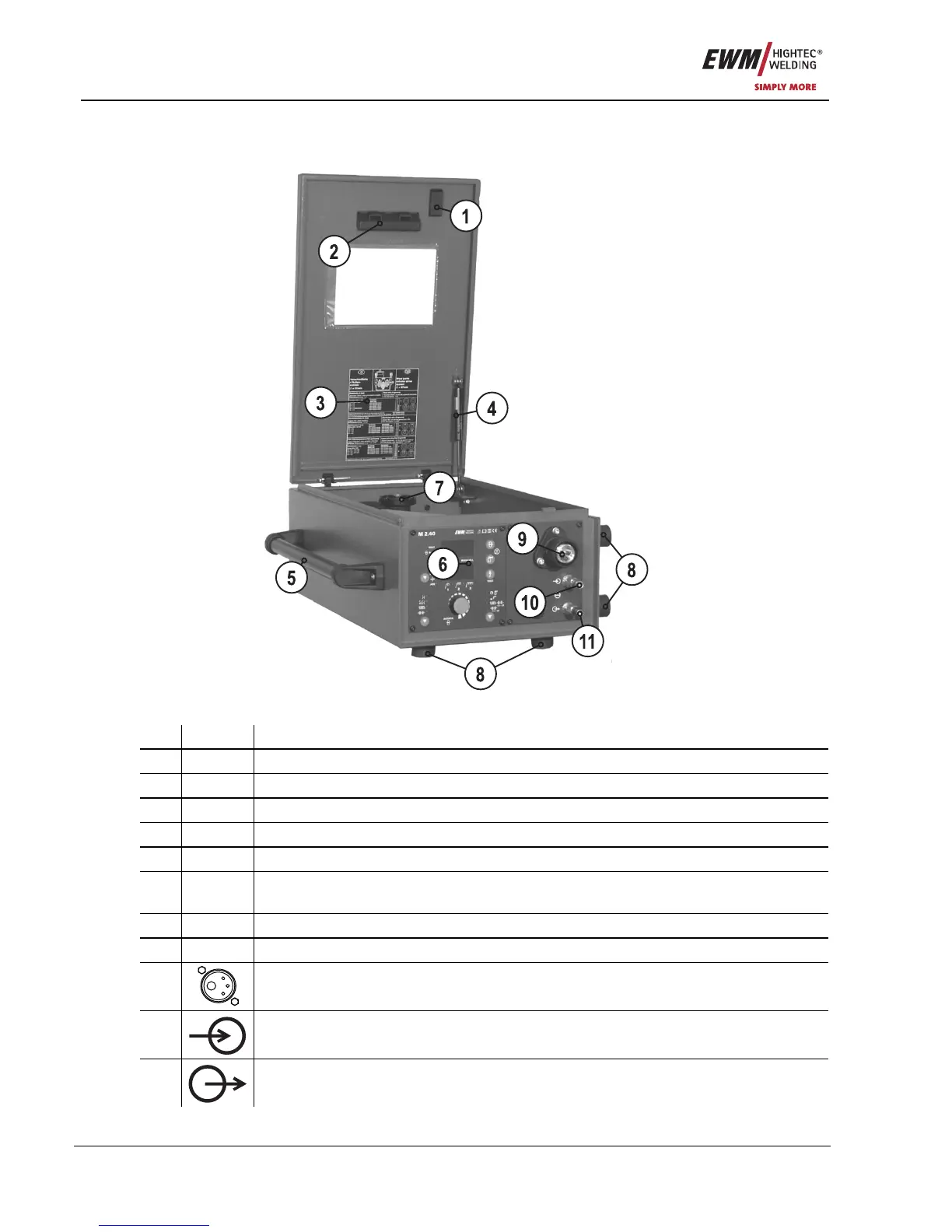

4.4.1 Front view
Figure 4-7
Item Symbol Description 0
1 Slide latch, lock for the protective cap
2 Recessed grip for opening the cap
3 Label, Wire feed parts subject to wear
4 Damper/support for the cover
5 Carrying handle
6 Machine control
See Machine control – operating elements chapter
7 Spool holder
8
Rubber feet
9
Central connection for welding torch (Euro)
Integrated welding current, shielding gas and torch trigger
10
Rapid-action closure coupling, red (coolant return)
11
Rapid-action closure coupling, blue (coolant supply)
