Functional characteristics
Machine control – Operating elements
Item No.: 099-004934-EWM01 31
5.1.1.1 Internal operating elements
NOTE
In decompact machines in combination with M1.02 (& M1.01), the internal operating
elements are located in the wire feed unit.
(see the chapter "Machine description" )
CAUTION
For the following processes the cover must be removed; to protect the machine it is
essential that the cover is fitted back into position afterwards.
• Unlock the right-hand cover on the machine.
• Tilt the cover forwards, then remove upwards.
There are other operating elements for parameter setting on the machine.

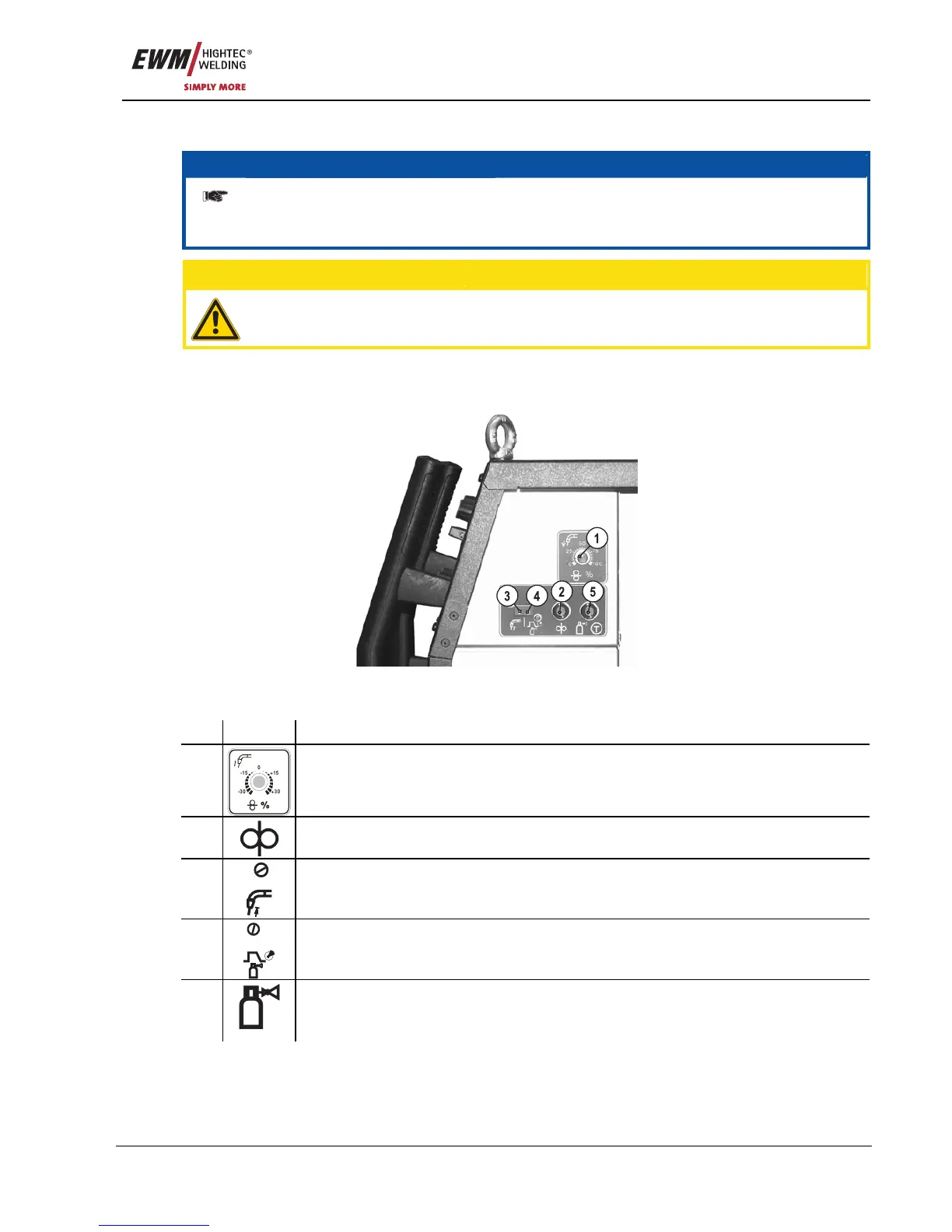

Figure 5-2
All details in percent relate to the values stored in the characteristics.
Item Symbol Description 0
1
0
-15
-30
+15
+30
Rotary dial, Wire creep (optional)
+/- 30%
2
Key Button, Wire inching
Currentless wire inching
3
Trimmer, Wire burn-back
+/- 50%
4
"Gas post-flow time" trimmer
Setting range 0.2-10 s
5
Key button, Gas test
Currentless gas test
