Machine description
WEGA DRIVE 41 L
Item No.: 099-004934-EWM01 27

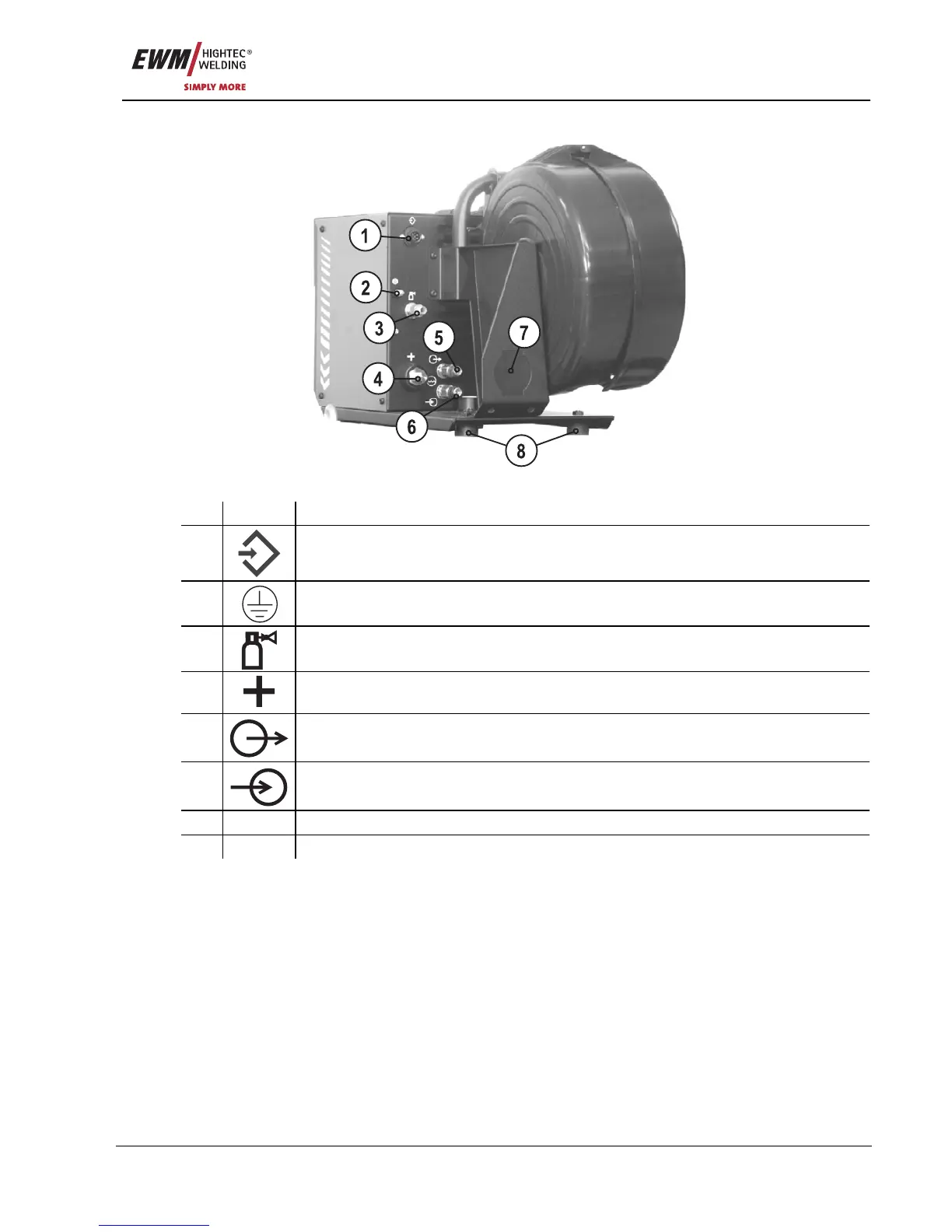

4.3.2 Rear view
Figure 4-6
Item Symbol Description 0
1
7-pole connection socket
Wire feed unit control lead
2
Earth cable connecting nipple
Connection of green-yellow earth cable from the intermediate tube package
3
Connecting nipple G¼, shielding gas connection
4
Connector plug, welding current "+"
Welding current connection on wire feed unit
5
Rapid-action closure coupling, blue (coolant supply)
6
Rapid-action closure coupling, red (coolant return)
7
Intermediate tube package strain relief
8 Rubber feet
